AUDISON

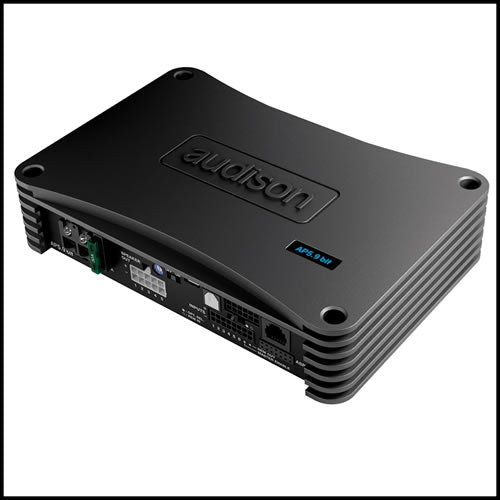

AUDISON AP5.9 bit
AP5.9 bit amplifier is ideal to realize a two way front full active plus subwoofer system using the fifth mono channel with 270 W @ 2 Ω. The built-in processor with 9 output channels, that this amplifier shares with the AP8.9 bit, provides the ability to assign the pre-outs to the AP4 D amplifier, creating a very powerful system in a small space thanks to the optional stacking system.
Pure digital signal transfer with a resolution up to 24 bit / 48 kHz.
Auto tuning by Audison bit Tune and communication with bit Drive portal.
De-equalization function to “flatten” any equalization applied by default by OEM sources.
To speed-up installation time preserving safety and reliability, the Audison R&D team equipped the AP bit amplifiers with DCC, an innovative management circuit which monitors the power supply current consumption in real-time. This solution provides the ability to connect the amplifier to the cockpit directly without reaching the battery.
When AP bit amplifiers are installed into a compatible vehicle using the iDatalink Maestro AR (sold separately), the user can enjoy a perfect integration with factory installed navigation, advanced safety systems, voice-controlled hands-free and infotainment. (Only for North America)
| Load. Imp. | 5 Channels |
| 4 Ohm | 20 W x 2 + 50 W x 2 + 150 W x 1 |
| 2 Ohm | 40 W x 2 + 90 W x 2 + 270 W x 1 |
