AUDIOFROG GS682 6″x 8″ FULL RANGE LOUDSPEAKER

$369.00 USD $429.00 USD
GS682

Designed as an easily installed premium upgrade, the GS682 includes a proprietary injection-molded ABS and fiberglass vented basket with mounting tabs to fit many factory 6×8” and 5×7” locations. Ease of installation is ensured with a low profile 1” fabric dome neodymium tweeter that is sure to fit under factory grilles. The kit includes a removable gasket for mounting the speaker under the baffle.

The tweeter faceplate includes a small waveguide designed to boost the tweeter’s low frequencies and ensure a smooth transition to the midrange. That transition is also controlled by a 12dB/octave high pass filter and 6dB/octave low pass filter. The entire crossover network is mounted to a PC board integrated into the basket, which also secures the terminals.

The GS682 woofer includes a 1” copper voice coil wound on a Kapton® former for superior power handling.

  • Injection molded ABS plastic and fiberglass vented basket
  • Parabolic polypropylene cone
  • Nitrile butadiene rubber surround
  • 1” (25mm) copper voice coil on Kapton® former
  • Flat progressive Nomex® Spider
  • Ferrite magnet
  • 1” (25mm) fabric dome neodymium tweeter
  • Tweeter includes reflection absorbing and diffusing foam pad
  • Low-profile tweeter waveguide helps to provide smooth transition to the midrange
  • Fast-on terminals secured with integrated PC board
  • Integrated passive crossover (12dB/octave high pass and 6dB/octave low pass)
  • Specifications:
  • Nominal Impedance: 4Ω
  • RMS Power Handling: 70 W (with recommended crossover)
  • Peak Power Handling: 200 W (with recommended crossover)
  • Frequency Response: 47 Hz – 20 kHz
  • Sensitivity (2.83 V/1 M): 89 dB
  • Recommended Amplifier
  • RMS Power Range: 15 W – 75 W

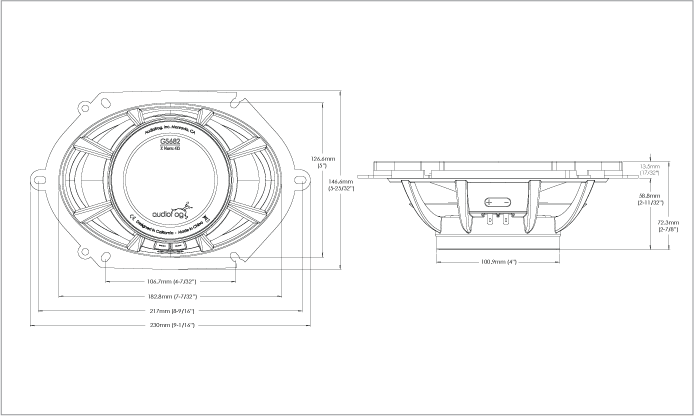

Dimensions:

  • Cut-out diameter: 126.6 mm x 182.8 mm (5” x 7-7/32″)
  • Overall Diameter: 146.6 mm x 204 mm (5-25/32″ x 7-15/16″)
  • Overall Diameter Including Mounting Tabs: 146.6 mm x 230 mm (5-25/32″ x 9-1/16″)
  • Mounting Depth: 58.8 mm (2-11/32″)
  • Mounting Height: 13.5 mm (17/32″)

Frequency Response Graph:

Thiele & Small Parameters:

  • Revc: 2.35 Ω
  • Levc@1kHz: 0.14 mH
  • Sd: 163 cm²
  • Mmd: 14.3 g
  • Mms: 15.54 g
  • Cms: 351.26 µM/N
  • Vas: 13.33 liters
  • Fs: 68 Hz
  • BL: 4.05 TM
  • Qms: 6.66
  • Qes: 0.95
  • Qts: 0.83
  • Xmax (1-way linear): 4 mm (3/16”)
  • Basket Displacement: 0.37 liters (0.013ft³)
