ROCKFORD FOSGATE

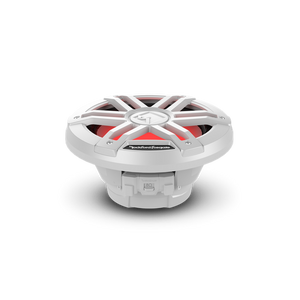

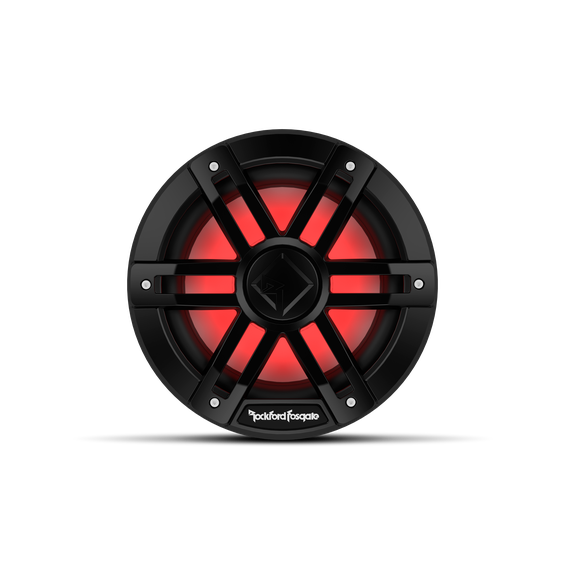

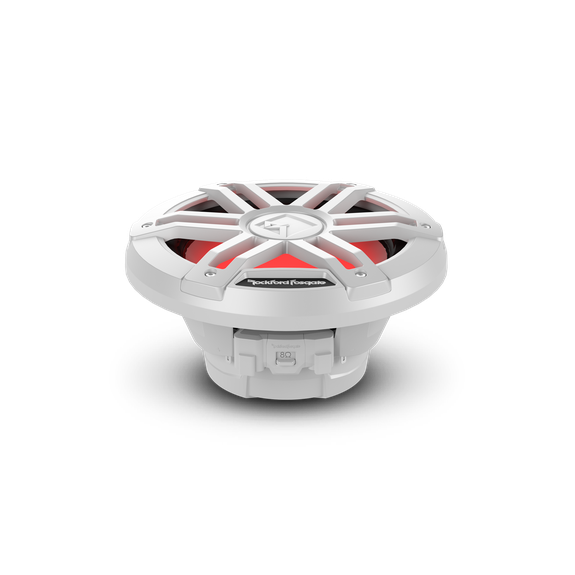

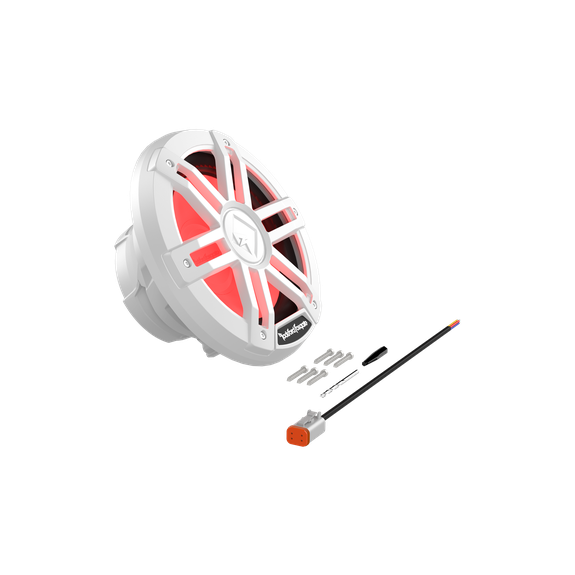

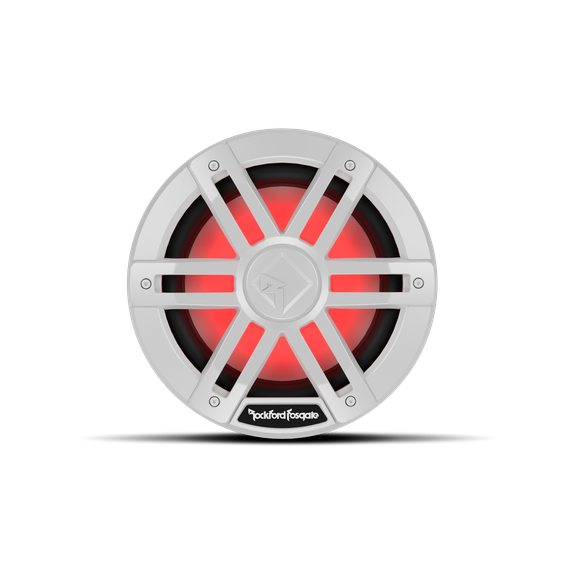

M1 8" DVC 4Ω Color Optix™ Marine Subwoofer
The M1D4-8 Color Optix™ 8” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
SPECIFICATIONS:
Size
8"
Re (Ohms)
6.3
Le (mH)
1.70
Nominal Impedance (Ohms)
2-Ohm or 8-Ohm Switchable
Voice Coil Type
Dual Voice Coil
SPL (dB @ 1w/1m)
87.5
Frequency Response
20 Hz - 750 Hz
Sd (cm2)
227
Woofer Displacement
1.40 cu. ft. (0.05 Liters)
Xmax (mm)
7.0
Vas (Liters)
15.7
Qts
0.90
Fs (Hz)
44.5
Cutout Diameter
7.10 in. (180.4 mm)
Mounting Depth
3.43 in. (87.1 mm)
Qes
0.79
Power Handling (Watts RMS)
150 Watts RMS
600 Watts PEAK
600 Watts PEAK
Qms
9.2
Magnet Weight (oz)
17.72 oz. (0.50 Kg)
Voice Coil Diameter
1.5" (38.6 mm)
Speaker Connector
Deutsch™
Shipping Weight
4.6 Lbs. (2.10 Kg)
