ROCKFORD FOSGATE

ROCKFORD FOSGATE Power Marine 500 Watt Class-BR Mono Amplifier

$359.99 USD
TM500X1br

The TM500X1br is a 500 Watt mono amplifier with boosted rail Class-br technology and a conformal coated pc board designed for motorsport and marine applications.

The Power TM500X1br 500 Watt mono ultra-compact amplifier is built on Rockford Fosgate’s patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.



  • Rockford Fosgate proprietary Boosted Rail technology
  • Differential inputs with high level auto turn-on feature
  • Upgraded RCA connectors

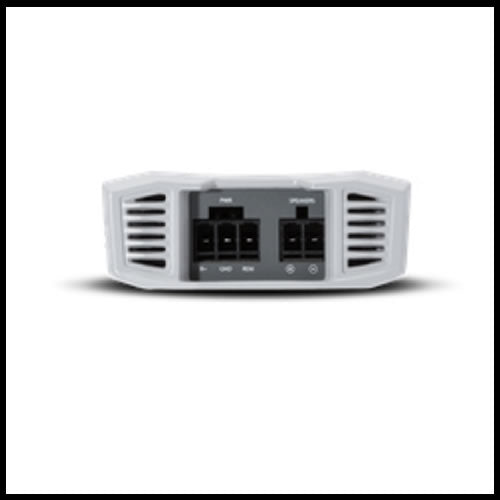

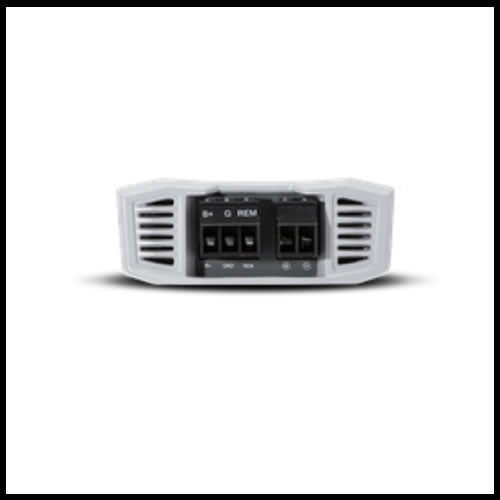

  • 8 AWG Power/Ground connector. 10 AWG speaker connector
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs

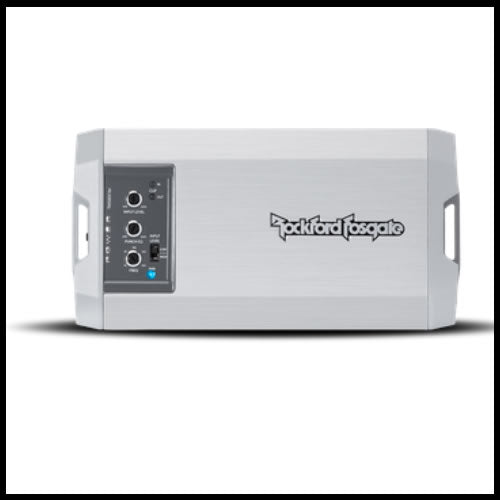

  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology
  • Dual extruded heat sinks
  • Discrete surface mount technology
  • Marine grade two part epoxy coating on circuit boards
  • 2 Year Warranty
CE Compliant
CE Compliant

This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ..

CEA-2006 Compliant
CEA-2006 Compliant

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your

Class BR
Class BR

Stores energy and dynamically boosts rail voltage to create power on demand.

C.L.E.A.N. Set-Up
C.L.E.A.N. Set-Up

Patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

Element Ready™ - Amps
Element Ready™ - Amps

These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

3-Stage Airflow
3-Stage Airflow

3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.

DSM
DSM

DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and ...

Engineered In The USA
Engineered In The USA

These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered ...

CEA-2006 Compliant
CEA-2006 Power Rating
175W x 1 @ 4Ω
≤1.0% THD+N
Remote Controls
Optional PLC2 provides Punch Level Control
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3

LED Color Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge
8 AWG
Power Input Connector
Detachable Compression Terminal
Speaker Wire Gauge
10 AWG
Speaker Output Connector
Detachable Compression Terminal
Cooling
Dual Fan Cooled
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
60 A
Average Current Draw (13.8V Music)
30 A
Max. Current Draw (13.8V Sinewave)
60 A
Suggested Alternator
75 A
Dimensional Diagram
Dimensions (H x W x D)
1.6 x 4.3 x 8.3 (in.)
4.1 x 10.8 x 21.1 (cm)
Shipping Weight
3.1 Lbs. (1.4 Kg.)
Number of Channels
1
Total Power
(Sum of Rated Power)
500 Watts
Rated Power
(RMS Continuous Power)
175 Watts x 1 @ 4-Ohm
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
Dynamic Power
(PVC/PowerCube®)
201 Watts x 1 @ 4-Ohm
342 Watts x 1 @ 2-Ohm
540 Watts x 1 @ 1-Ohm
Bridgeable
No
Frequency Response
20Hz - 220Hz +/-1dB
Input Sensitivity
150 mV to 12 V
Circuit Topology Class
Class BR
Efficiency (average)
>75%
Total Harmonic Distortion (THD+Noise)
4-Ohm: <1.0%
2-Ohm: <1.0%
1-Ohm: <1.0% above 35 Hz

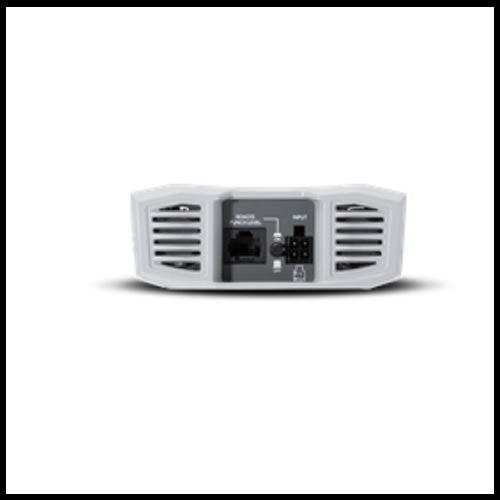

Signal Input
High/Low Level Input: 4-Pin harness
Signal Output
-
Tone Controls
Bass: 0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
All-Pass: No
