ROCKFORD FOSGATE

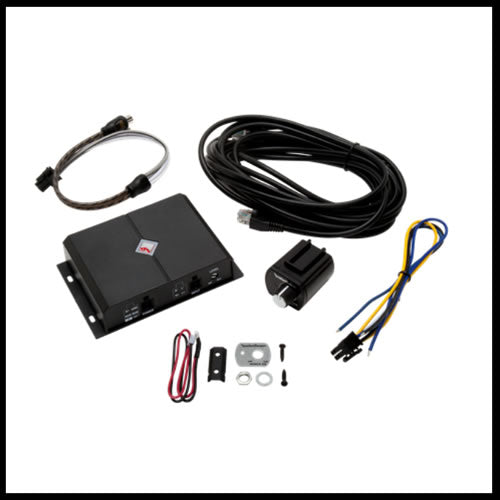

ROCKFORD FOSGATE Universal PEQ Remote & Line Driver RFPEQU

$99.99 USD
RFPEQU

The RFPEQU is a 2-channel universal PEQ (Punch EQ) with built-in line driver that provides bass boost to any aftermarket audio system.

The RFPEQU universal Punch EQ is a remote control bass knob compatible with any branded aftermarket audio system. Adapter features a high-level signal input with auto turn-on capability and adjustable sensitivity to match any audio source. The 2-channel RCA outputs with built-in line driver allow the signal to connect to any amplifier’s input jacks and overcome any noise. Included cable allows remote bass knob to be conveniently installed near driver/passenger for quick and easy adjustment of bass level.



  • Line driver with OEM integration capabilities
  • High voltage line driver
  • Independent gain control
  • Low distortion, low noise operation
  • Speaker level to RCA line level converter
  • Aux. remote turn-on output
  • "Auto-Sense" turn-on with remote out (high level in)
  • PEQ remote included
  • Discrete surface mount technology
  • 1 Year Warranty
Processor Type
Analog Processor
Output Impedance
500 Ohms
Shipping Weight
1.4 Lbs.
(0.63 Kg.)
Dimensions (H x W x D)
1.1" x 3.15" x 4.72"
28 mm x 80 mm x 120 mm
Signal Input
High-Level: 2-channel (left/right)
EQ Frequency Controls
Bass: 0dB to +18dB @ 45Hz
Treble 0dB to +12dB @ 12.5kHz
THD+N
0.005%
Output Voltage
10V RMS
Frequency Response
20Hz - 20kHz ±1dB
Operating Voltage
9-16 VDC @ 200 mA
Mounting
Behind Dash (install as close to source unit as possible)
EQ Frequency Controls
Bass: 0dB to +18dB @ 45Hz
Treble 0dB to +12dB @ 12.5kHz
THD+N
0.005%
Output Voltage
10V RMS
Signal Output
Low-Level: 2 RCA (left/right)
Input Impedance
20k Ohms
