KALEIDESCAPE TERRA PRIME 96TB K0113-0096
Terra Prime Movie Servers 96TB
Terra Prime movie servers store Kaleidescape movies, TV series, and concerts. Kaleidescape movies have lossless audio and reference video, are downloaded asynchronously and then played back from local storage. This enables playback with full fidelity, irrespective of internet connectivity.
Kaleidescape movie files are typically ten times larger than streamer movies, retaining near lossless video and fully lossless audio fidelity from studio masters. By contrast, streaming movie files are heavily compressed to create small movie files that can be streamed over the internet.

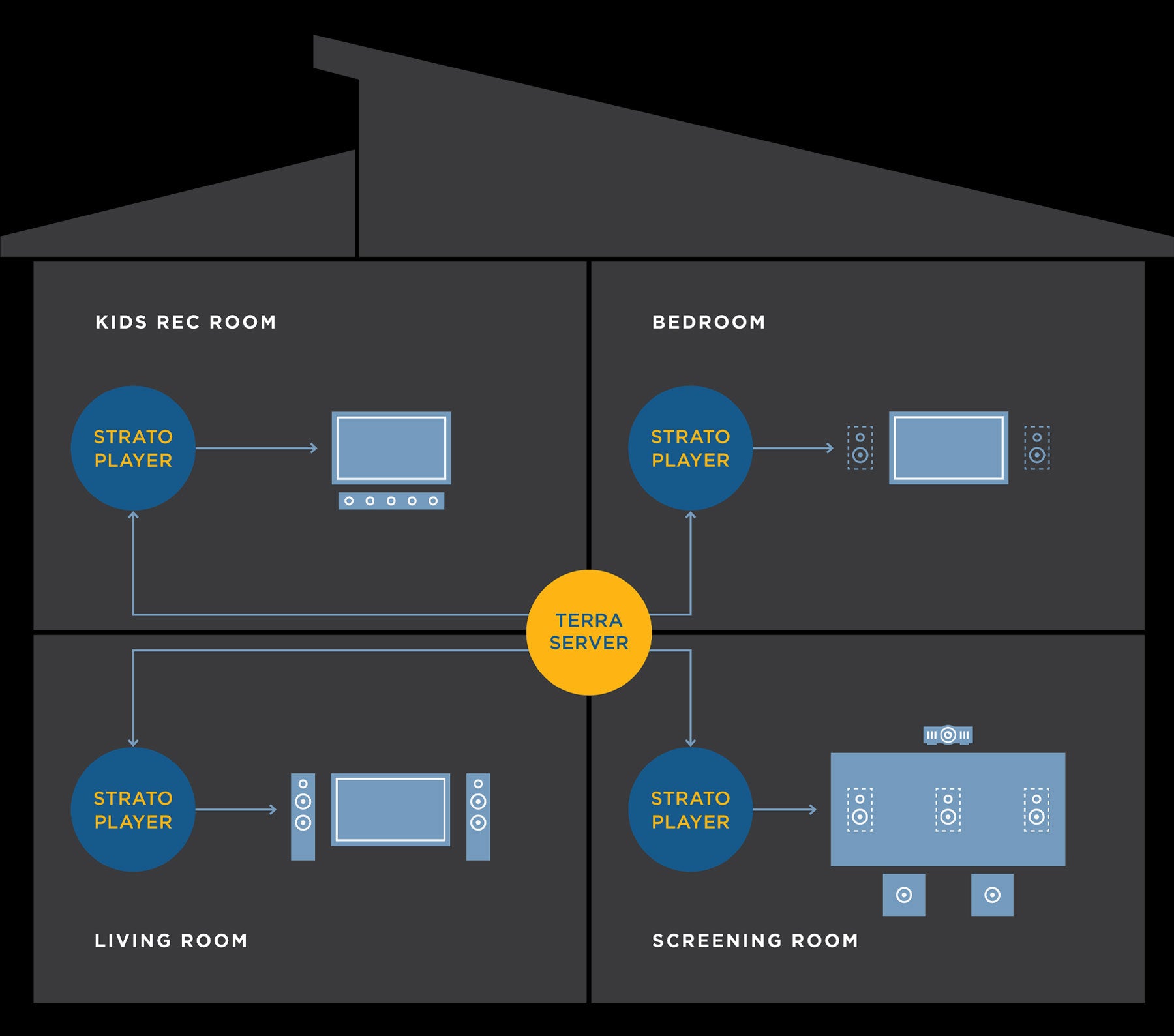

Kaleidescape movies are played back on Strato movie players. The Strato V movie player can store about ten downloaded movies. But for greater movie storage capacity and immediate playback of more movies, you can group Strato V with up to four Terra Prime movie servers.
When Strato V is grouped with a Terra Prime movie server, its internal storage is disabled (in favor of more scalable server storage), and the full Kaleidescape user experience is enabled, including the list view and iconic cover shuffle view, which look and work better with larger movie libraries.
Reliable
Assembled in the USA in a solar-powered factory, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance. Kaleidescape’s operating system (kOS) is managed with automatic updates, providing the best experience.
Terra Prime Movie Servers

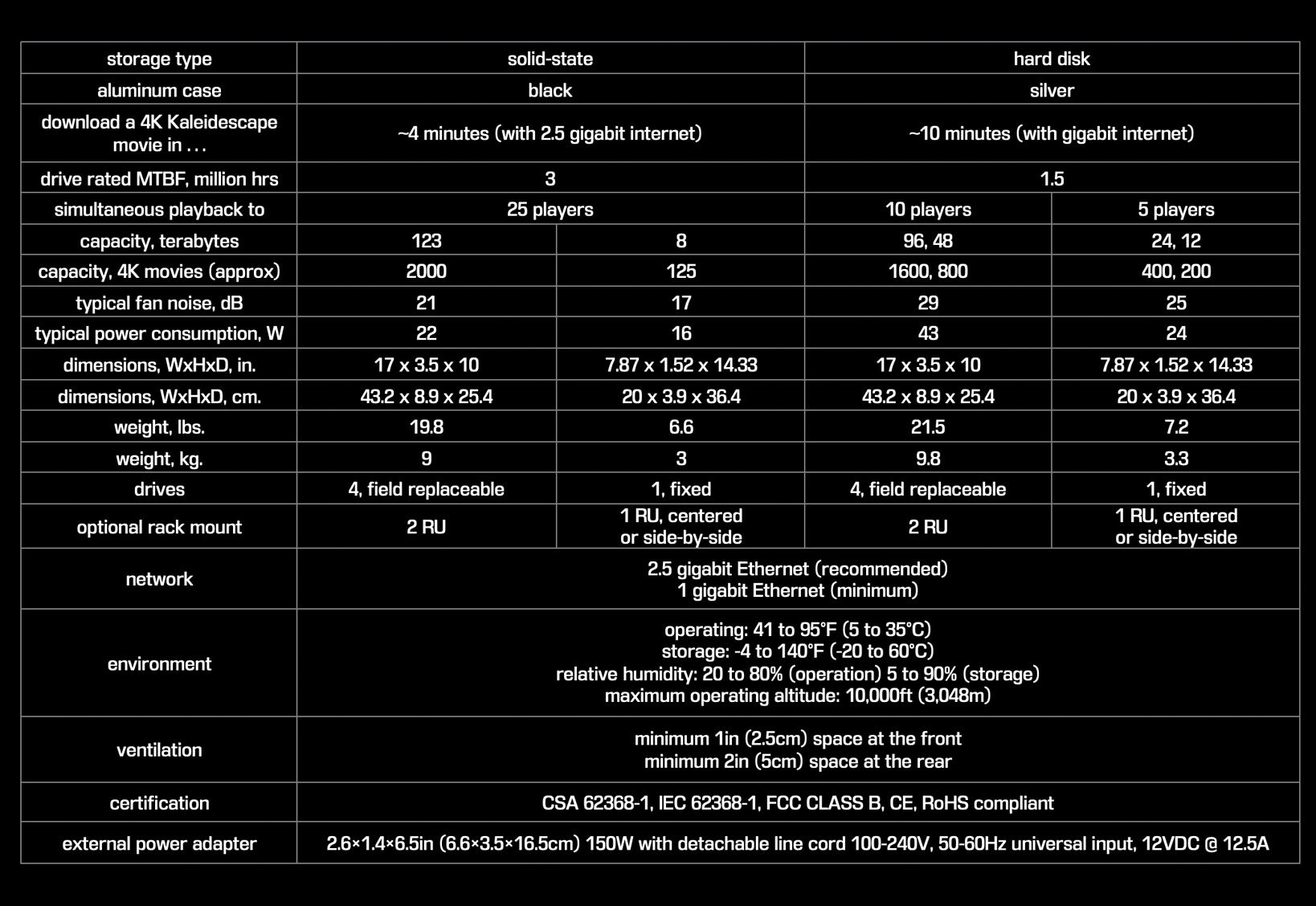

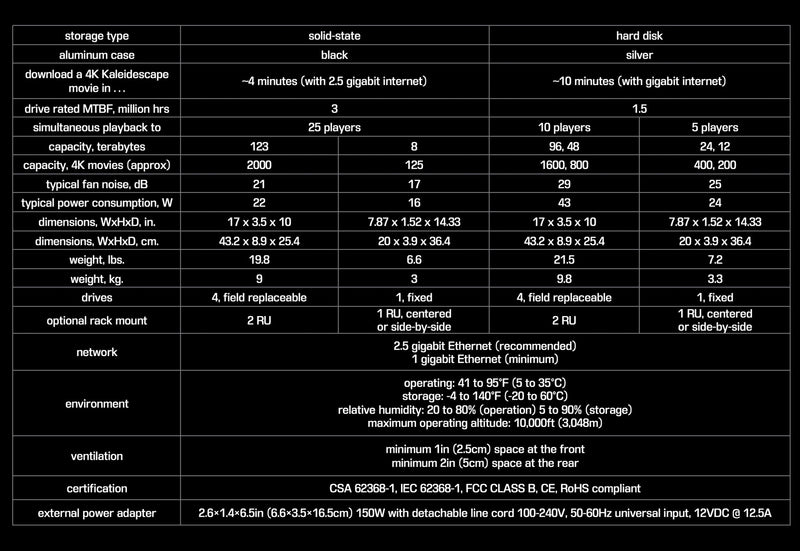

Technical Details & Specifications

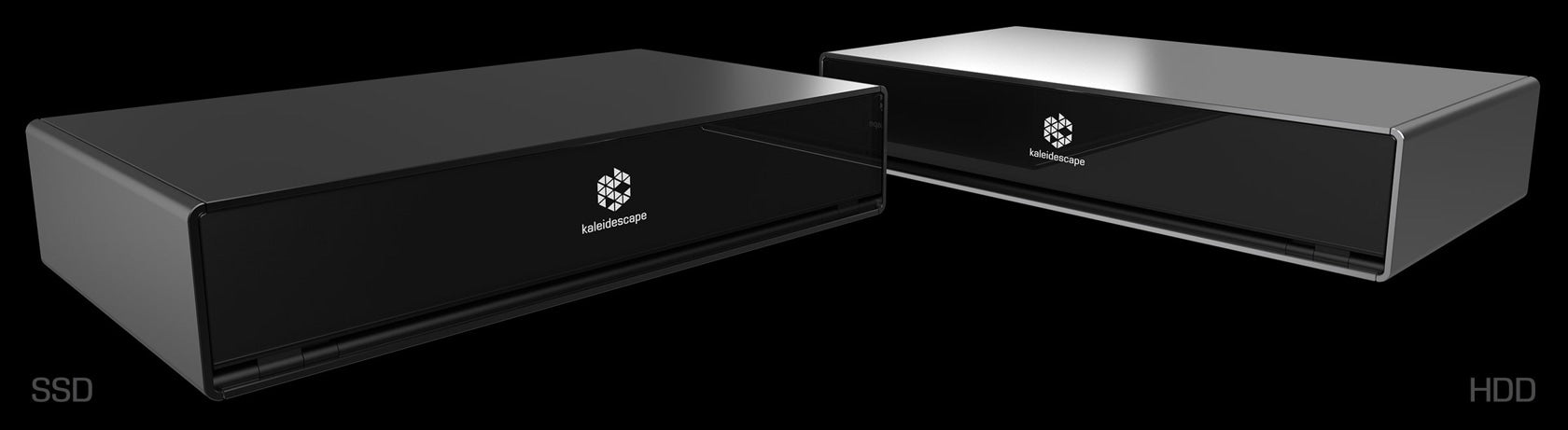

COLOR
- SSD: Black anodized aluminum
- HDD: Silver anodized aluminum
DOWNLOAD SPEED
- Downloads Kaleidescape high-bitrate 4K movies in as little as:
- SSD: 4 minutes
- HDD: 8 minutes
SIMULTANEOUS PLAYBACKS
- Serves simultaneous playbacks of Kaleidescape high-bitrate 4K movies to the following number of network-attached Strato movie players:
- SSD: 25
- HDD Full Size: 10
- HDD Compact: 5

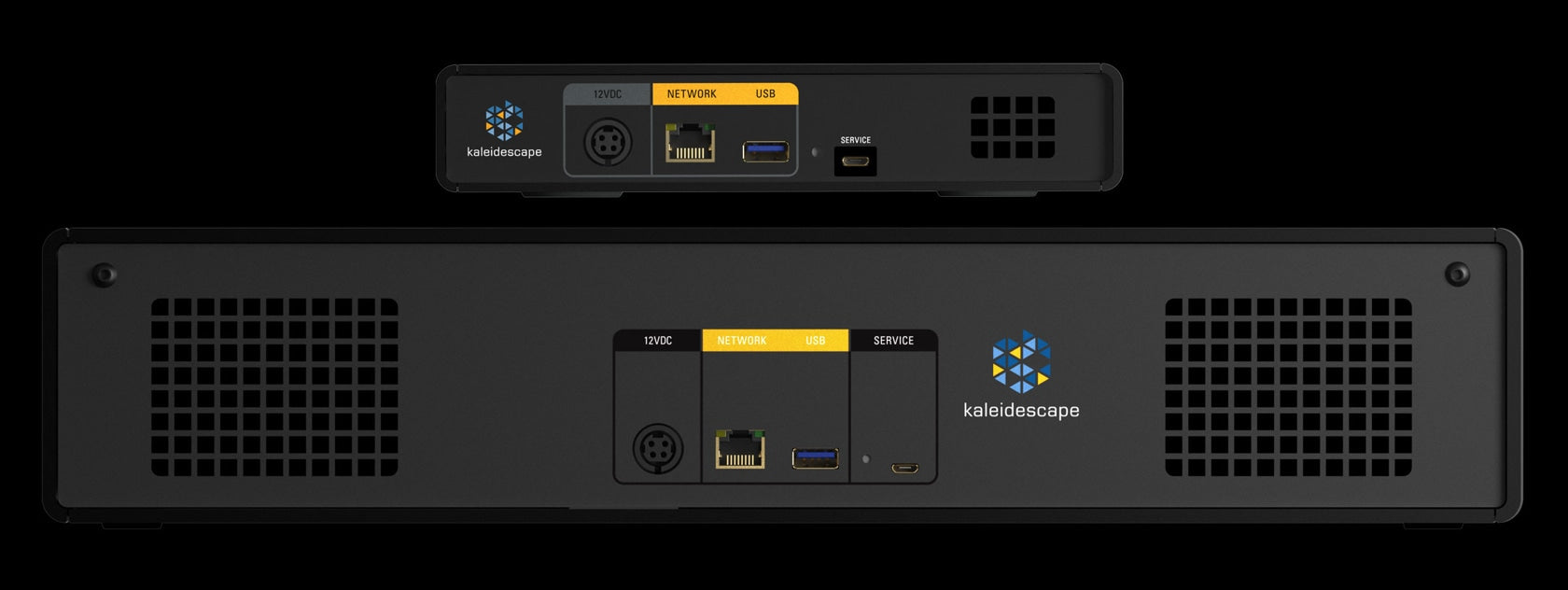

NETWORK
- Ethernet cable link required
- Capable of 2.5 Gigabit (recommended) and 1 Gigabit (minimum)
OTHER CONNECTION
- USB 3.0 (reserved)
EXTERNAL POWER ADAPTER
- 2.6×1.4×6.5in (6.6×3.5×16.5cm) 150W with detachable line cord 100-240V, 50-60Hz universal input 12VDC @ 12.5A
RACK MOUNTS (Sold Separately)
-
Full Size:
Rack shelf available for mounting one unit in a 19in rack, 2RU space -
Compact:
Rack shelf available for mounting one or two units in a 19in rack, 1RU space
DIMENSIONS
-
Full Size: (W x H x D)
17.0in x 3.5in x 10.0in
(43.2cm x 8.9cm x 25.4cm) -
Compact: (W x H x D)
7.87in x 1.52in x 14.33in
(20.0cm x 3.9cm x 36.4cm)
WEIGHT
-
SSD Full Size:
19.8lbs (9.0kg) with four solid-state drives + heat sink cartridges installed -
SSD Compact:
6.6lbs (3.0kg) -
HDD Full Size:
15.4lb (7.0kg) with no drives installed
21.6lbs (9.8kg) with four hard drives -
HDD Compact:
7.2lbs (3.3kg)
DRIVES
-
SSD Full Size:
Four removable solid-state TLC flash drives -
SSD Compact:
One integrated solid-state TLC flash drive -
HDD Full Size:
Four removable hard disk drives -
HDD Compact:
One integrated hard disk drive
ENVIRONMENT
- Operating: 41 to 95°F (5 to 35°C)
- Storage: -4 to 140°F (-20 to 60°C)
- Relative humidity:
20 to 80% (operation)
5 to 90% (storage) - Maximum operating altitude:
10,000ft (3,048m)
VENTILATION
- Airflow:
Full Size: 10 CFM (17 m3/hr) max
Compact: 5 CFM (8.4 m3/hr) max - Minimum 1in (2.5cm) space at the front
- Minimum 2in (5cm) space at the rear
POWER
-
SSD Full Size:
Max consumption: 28W
Typical: 22W -
SSD Compact:
Max consumption: 22W
Typical: 16W -
HDD Full Size:
Max consumption: 48W
Typical: 43W -
HDD Compact:
Max consumption: 29W
Typical: 24W
FAN NOISE
-
SSD Full Size:
Typical: 21 dB(A) -
SSD Compact:
Typical: 17 dB(A) -
HDD Full Size:
Typical: 29 dB(A) -
HDD Compact:
Typical: 25 dB(A)
CERTIFICATIONS
- CSA 62368-1
- IEC 62368-1
- FCC CLASS B
- CE
- RoHS Compliant
MOVIE STORAGE
-
4K Resolution:
~16.5 movies per TB -
HD Resolution:
~27 movies per TB -
SD Resolution:
~150 movies per TB
STORAGE OPTIONS
-
SSD Full Size:
123TB, 31TB -
SSD Compact:
8TB -
HDD Full Size:
96TB, 48TB -
HDD Compact:
24TB, 12TB
