ALPINE
ALPINE UTE-63BT

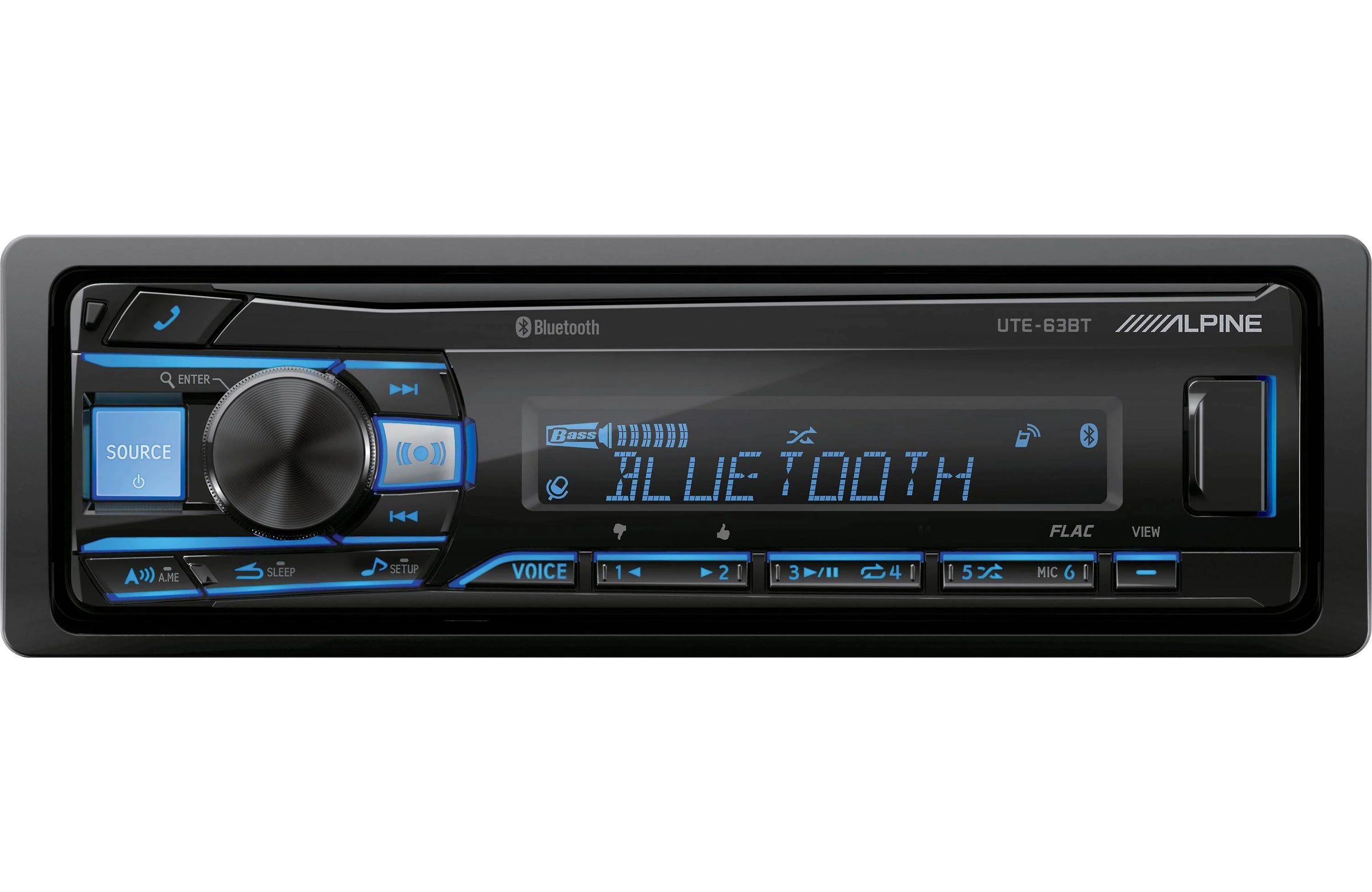

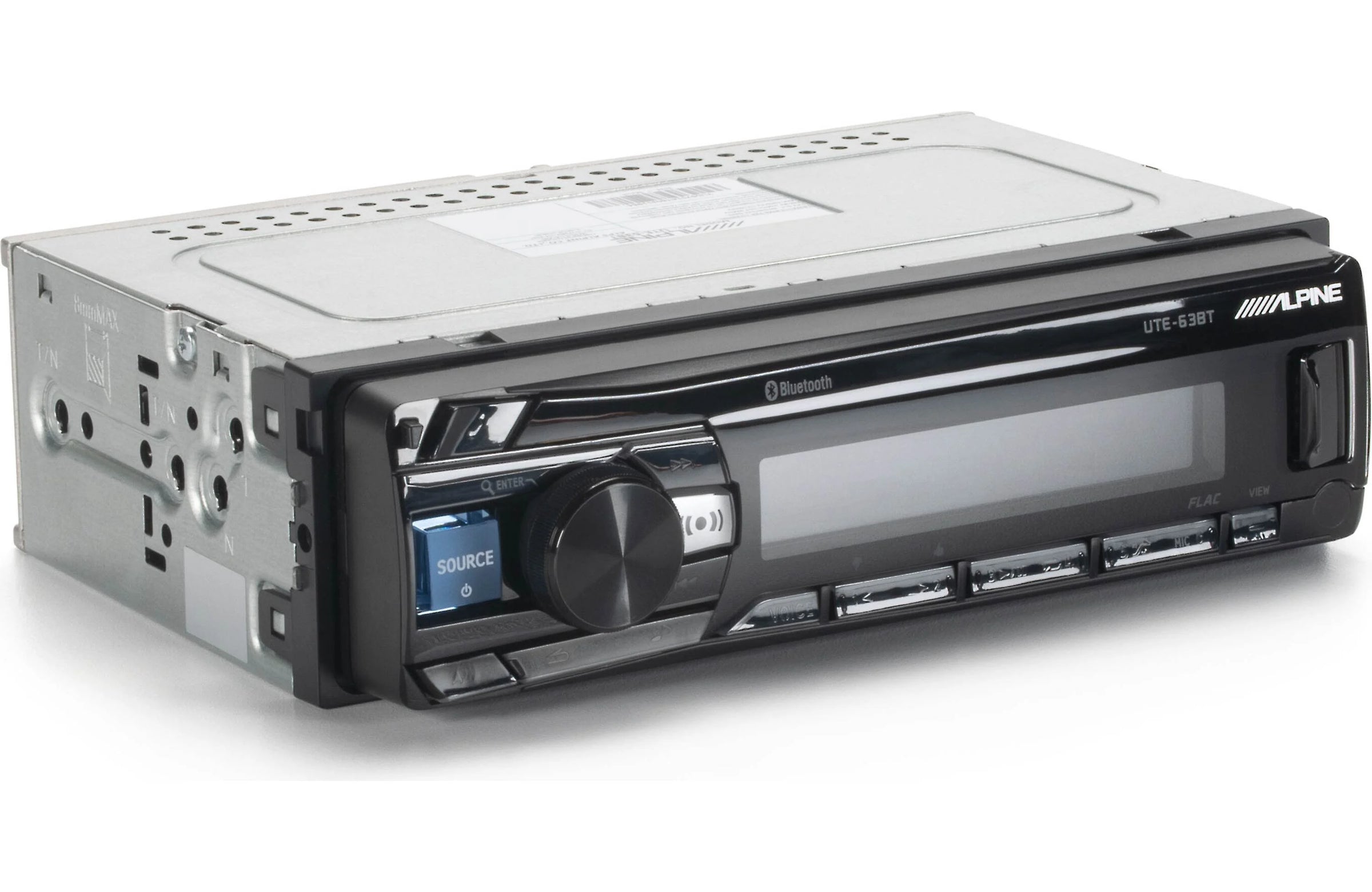

Alpine UTE-63BT Single-DIN Shallow-Chassis Bluetooth® Digital Media Receiver.
Product Overview
Upgrade your dash with the UTE-63BT featuring Bluetooth®, USB input, and Alpine sound tuning in a compact, shallow chassis design.
Features
- Shallow 4.25” single-DIN chassis for flexible installation
- Bluetooth® hands-free calling and audio streaming

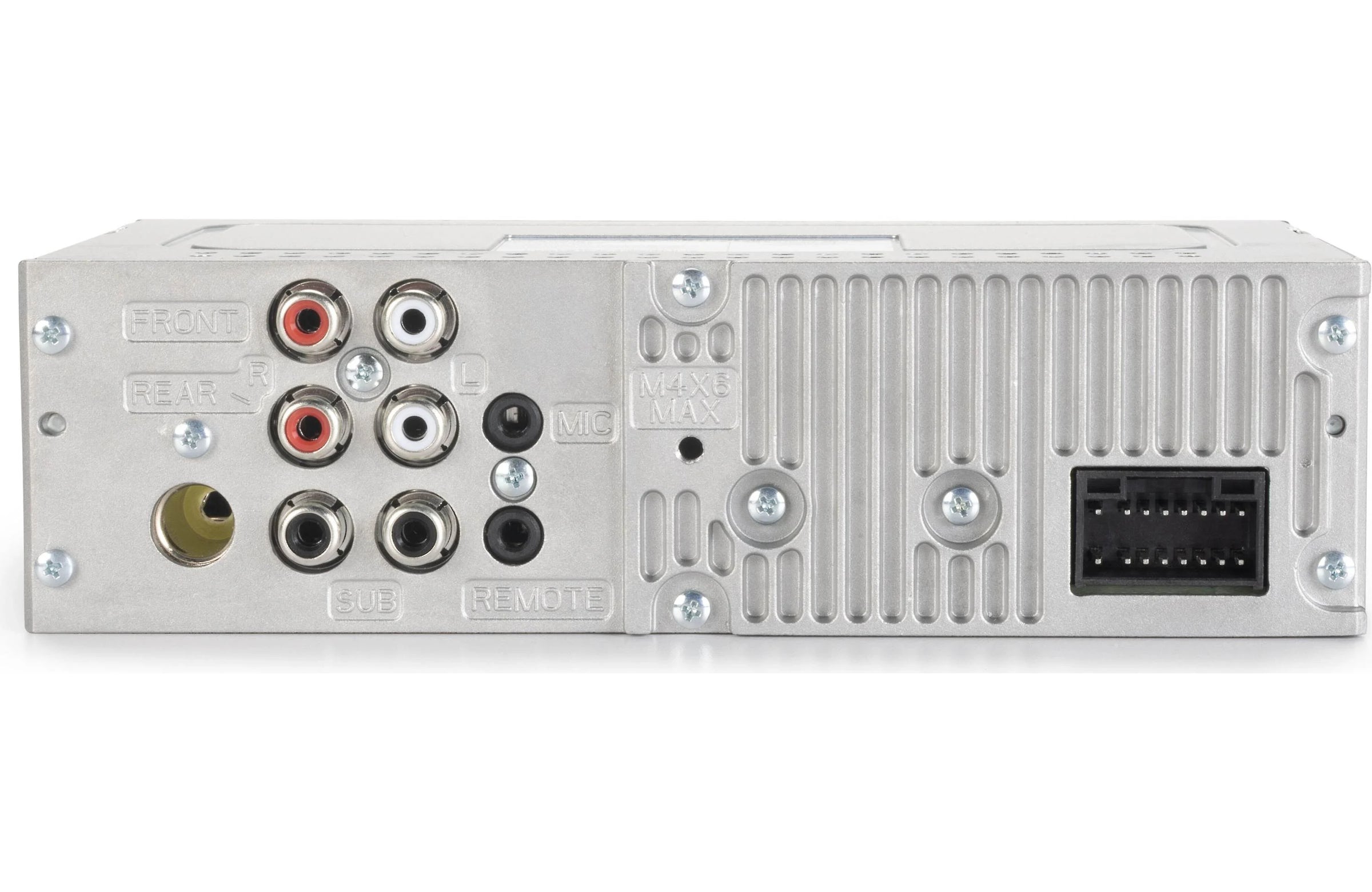

- 2V pre-outs (front, rear, subwoofer)
- Front USB input for playback and charging
- Compatible with Android™ devices
- High-contrast LCD display with RGB illumination
- Built-in amplifier (18W RMS x 4)
- 3-band parametric EQ with crossover controls
- Bass Engine SQ sound tuning
- Steering wheel remote ready
Tech Specs
Amplifier Power: 18W RMS x 4 Channels (CTA-2006)
Pre-Out Voltage: 3 Channel x 2V (Front/Rear/Subwoofer)
Subwoofer Output: Dedicated Subwoofer Pre-Out (2V)
Bluetooth®: Hands-Free Calling & Audio Streaming
USB Input: Front USB Port (Charging & Media Playback)
AUX Input: Not Available
Smartphone Compatibility: Android™
Radio: AM/FM Tuner with RBDS
Display Type: 1-Line High-Contrast LCD
Illumination: RGB Customizable Lighting
EQ: 3-Band Parametric EQ
Crossover: High-Pass / Low-Pass Filters
Sound Processing: Bass Engine SQ
DAC: 24-Bit Digital-to-Analog Converter
Audio Playback: AAC, FLAC, MP3, WMA (USB)
Chassis Depth: 4.25” Shallow Mount Design
Steering Wheel Control: Compatible (Adapter Required)
Remote Control: Not Included
Stay Connected with Bluetooth®

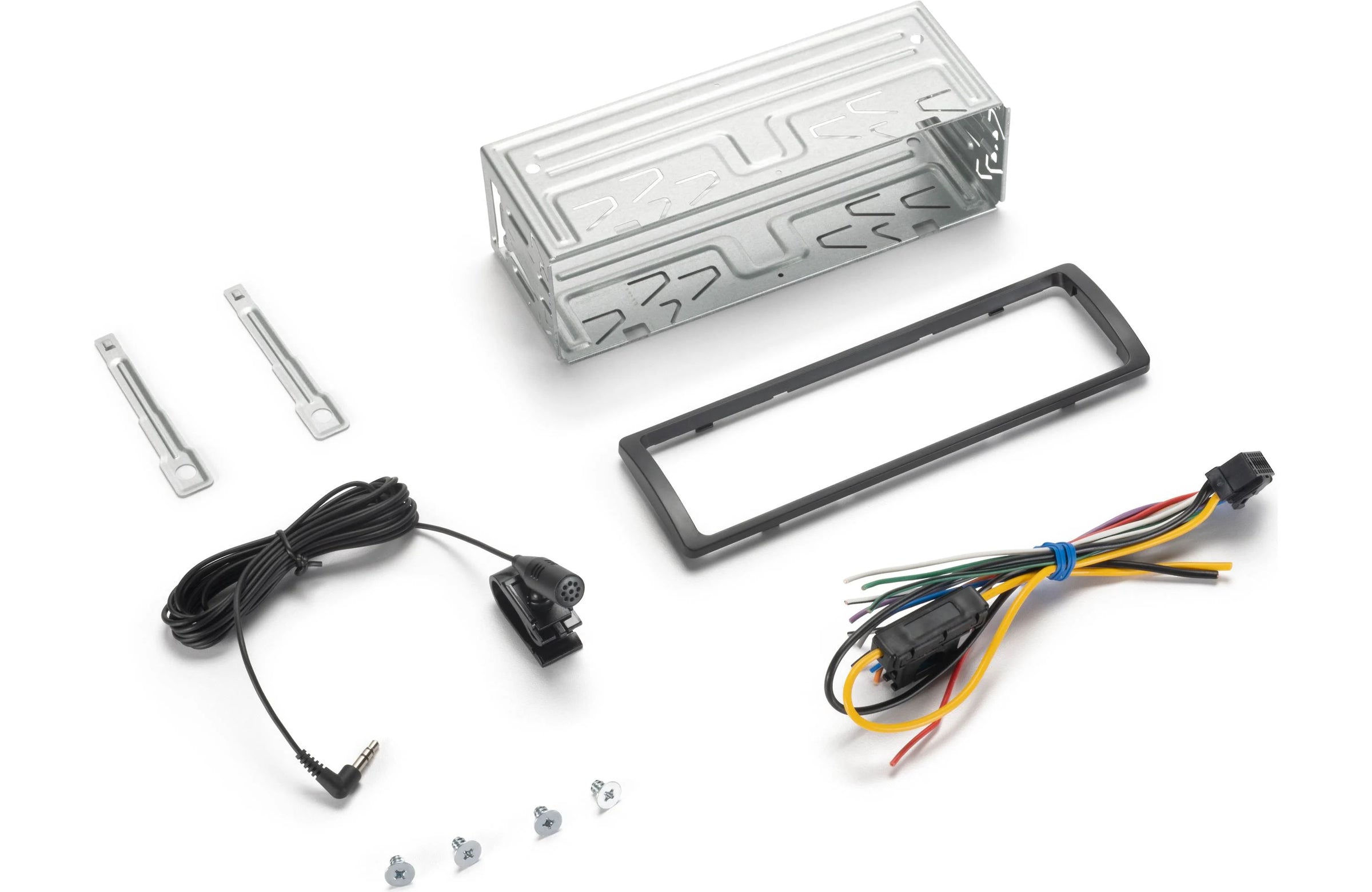

Enjoy safer driving with built-in Bluetooth® wireless technology that enables hands-free calling and audio streaming from your smartphone. The included external microphone helps deliver clear voice quality, reducing background noise for better conversations. With simple controls, you can easily manage calls and music while keeping your focus on the road for a safer, more convenient driving experience.
Shallow Chassis Design
The shallow 4.25-inch chassis design makes installation easy in a wide range of vehicles, including those with limited dash space. A high-contrast LCD display keeps track and station information easy to read, while customizable RGB illumination lets you match your vehicle’s interior. The front USB port provides convenient access for charging and playing your music on the go.
Dial in your sound
Take control of your audio with Alpine's Bass Engine SQ and onboard tuning features. The 3-band parametric EQ allows you to adjust key frequency ranges, while built-in high-pass and low-pass crossovers help optimize speaker performance. Fine-tune your system for system for clearer vocals, balanced mids, and controlled bass, or select preset sound profiles to match your music style and listening preferences.
