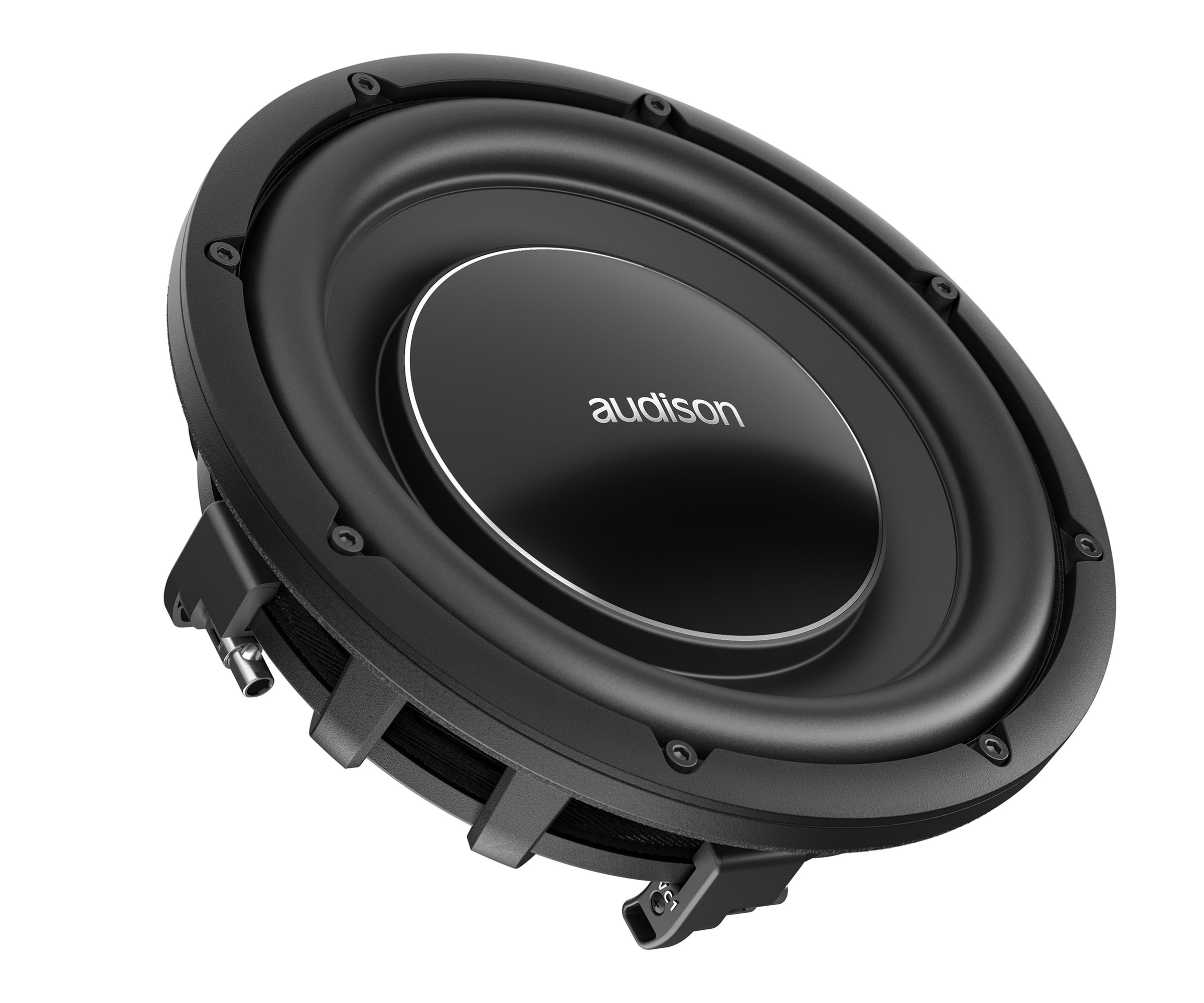

Subwoofer Driver | Slim | 250 mm | Grille included

Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line.

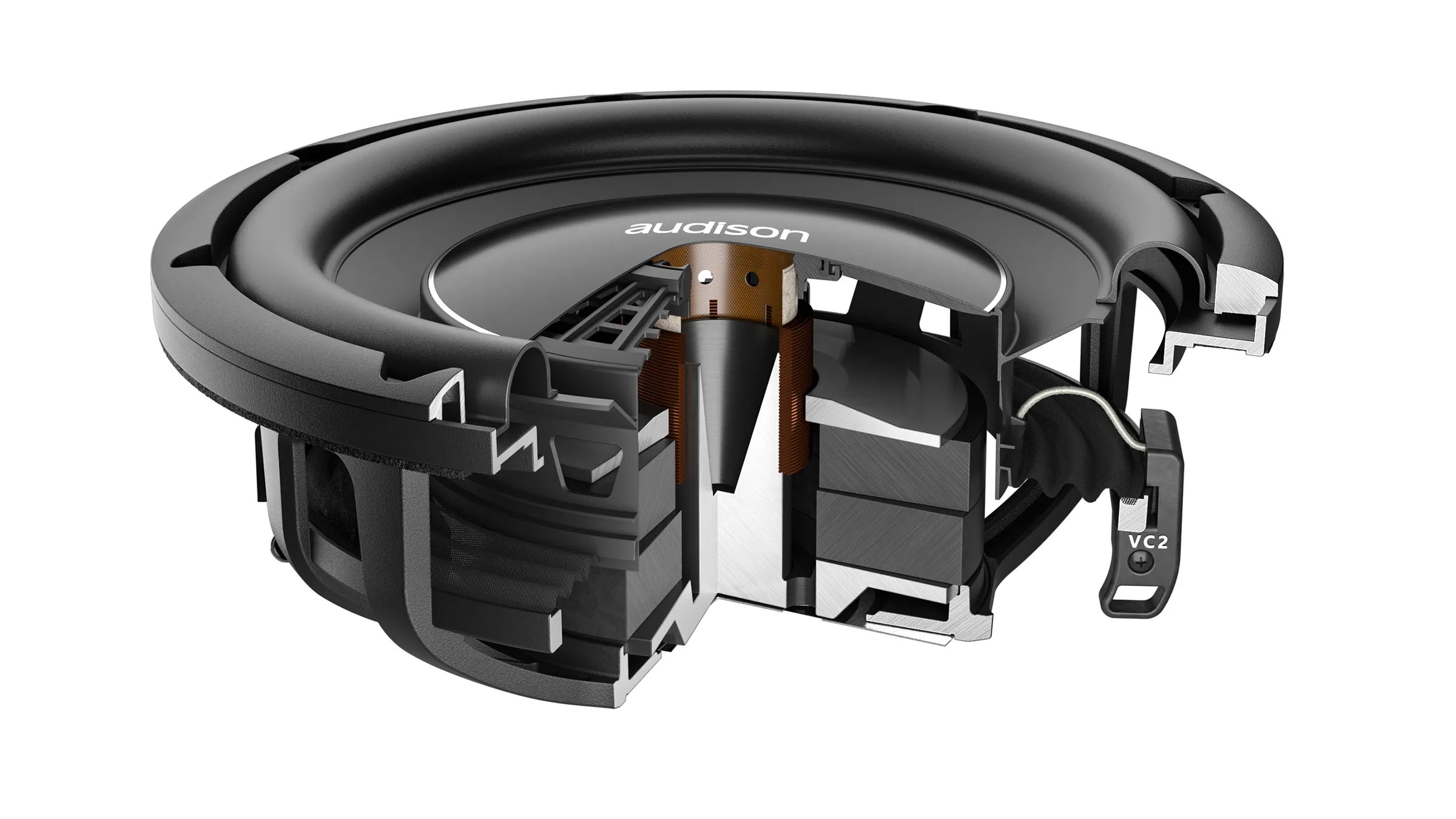

Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability.

The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress.

Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high.

It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.

1. 550 W RMS continuous power handling

Exceptional thermal stability and mechanical robustness ensure reliable management of 550 W RMS continuous power, allowing sustained high-performance bass output.

2. 1.5 in. (38.6 mm) CCAW voice coil (Copper-Clad Aluminum Wire)

Combines exceptional thermal handling with reduced mass, maximizing responsiveness, precision, and durability under demanding listening conditions

3. Airflow Venting Cooling (A.V.C.) prevents voice-coil overheating-related limitations

Proprietary AVC technology optimizes airflow and cooling through strategically placed internal channels, efficiently dissipating heat and maintaining consistent performance at high SPL.

4. Optimized for Compact Sealed Enclosures

Engineered to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), offering deep, controlled bass response even in space-limited setups.

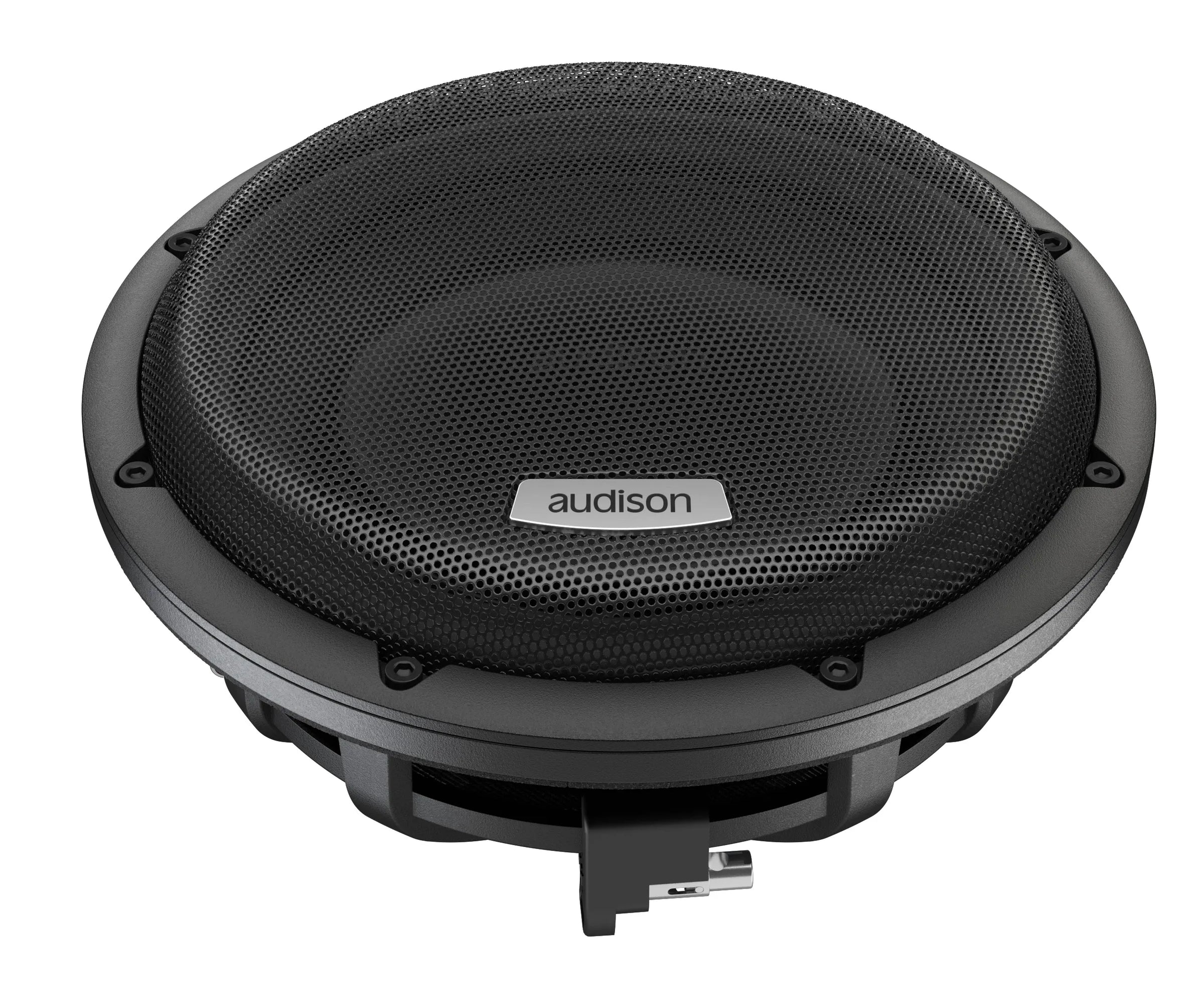

5. Protective Metal Mesh Grille Included

Comes with a durable black mesh grille and mounting screws, providing reliable cone protection without compromising acoustic transparency or visual elegance.

6. Radial Reinforcement Framework (R.R.F.)

Integrates internal structural rays beneath the cone, significantly increasing mechanical rigidity and effectively reducing deformation risks during high-excursion operations, ensuring consistent performance, precision, and reliability over time.

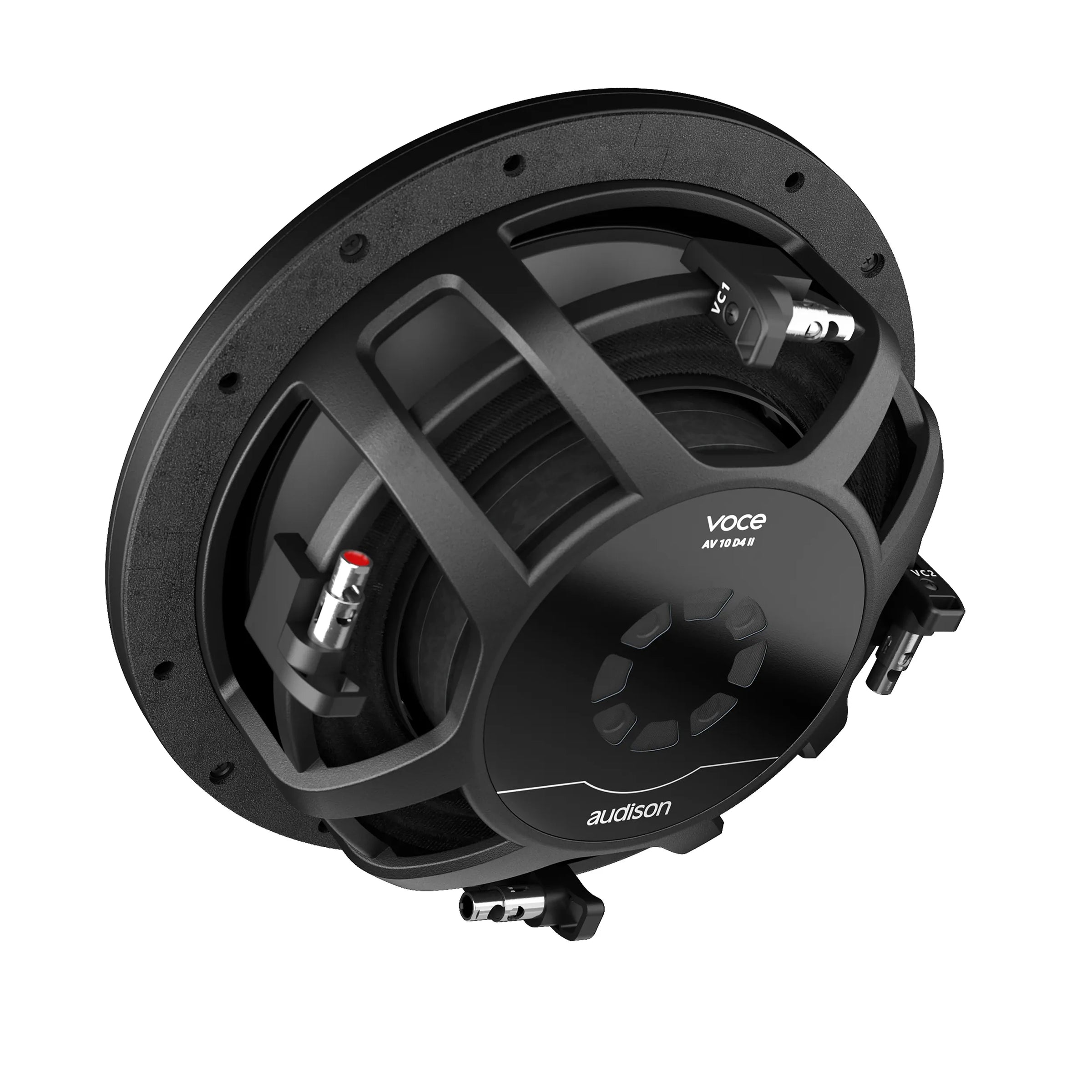

7. Die-cast aluminum basket with integrated cable-routing hooks

Robust aluminum basket maximizes rigidity and thermal dissipation, while integrated cable-management hooks facilitate clean installations even in confined spaces

8. Extended-Profile Dust Cap with VOCE II Styling

The enlarged dust cap, featuring refined detailing consistent with the VOCE II speaker range, is engineered through FEM simulation to optimize cone rigidity and structural damping.

9. Dual Integrated Cable Routing Hooks

Two molded guides built into the outer structure simplify neat and secure cable management. These hooks are entirely within the subwoofer’s footprint, ensuring compatibility with tight installation spaces.

10. Die-Cast Aluminum Basket with Magnet Cover

Offers excellent mechanical damping, improved heat dissipation, and stable airflow, maintaining structural integrity and high performance over time.

11. Spring-Loaded Horizontal Terminals (8 AWG Ready)

Side-by-side heavy-duty terminals allow short, clean wiring paths and simplified series or parallel configurations, supporting high-current cable connections.
12. FEM-Optimized Magnetic Circuit Geometry

The entire magnetic assembly has been engineered using Audison’s proprietary FEM simulation platform to concentrate the magnetic flux precisely around the voice coil gap, enhancing efficiency, responsiveness, and control.

13. eID Technology

Features Elettromedia’s eID system for full traceability, product authentication, and direct access to technical documentation and support.

TECHNICAL SPECS
