AUDISON
Audison AV 5.1k
Amplifier | 1650 W total power | 2 x 75 W @ 4ohm + 2 x 250 W @ 2ohm + 1 x 1000 W @ 2ohm | AB-class

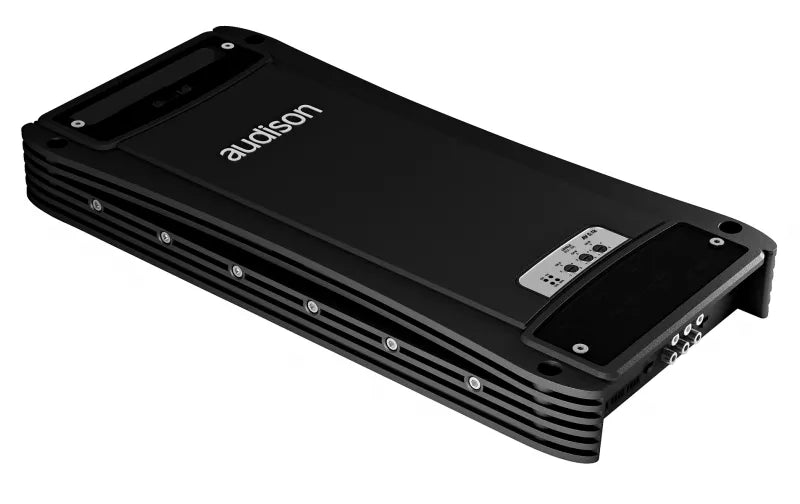

AV 5.1k, 1650 W (RMS) max, five channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems.
Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems.
The D Class mono section provides 1000 W (RMS) for powerful subwoofer output.
AV 5.1k also allows you to replace the analog input board with the digital one (AV bit IN).
According to the definition of HiRes audio provided by JAS (Japan Audio Society – jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).
AMPLIFIER TECH DATA
| Channels | 5 |
| Class | AB-Class |
| Hi Level Input | Yes |
| Low Level Input | Yes |
| Digital Input | No |
| Power supply voltage / fuse | 11 ÷ 15 VDC |
| Idling current | 3 A |
| Idling current when off | 0.02 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power | 110 A |
| Remote OUT | 12 VDC - 50mA |
| Remote IN | 7 ÷ 15 VDC - 1mA |
| ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) | Selectable |
