Bowers and Wilkins CCM8.5 D in Ceiling Speaker

In Store only. Priced and Sold as Each. Back Box sold separately.

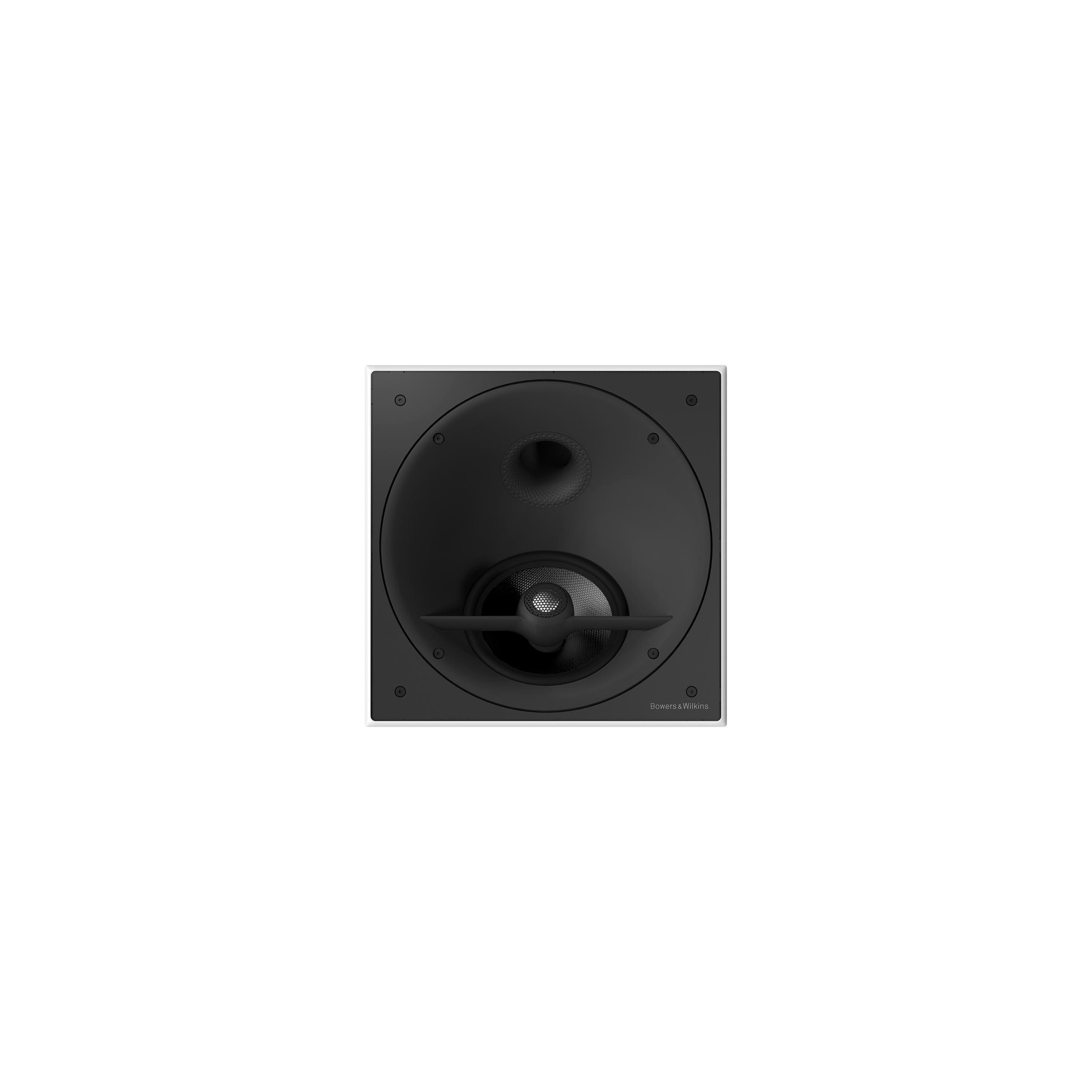

See nothing, hear everything CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality acoustics in an incredibly discreet package. It features a decoupled Diamond dome tweeter and a single 7inch bass/midrange Continuum driver with anti-resonance plug. All the drive units are located in a rotatable mini-baffle which allows the user to ‘toe in’ the drive units of the loudspeaker for the best performance. For optimum discretion when installed, the Continuum cone is given  a dark finish.

Technical Specifications

Description 2-way in-ceiling loudspeaker

Technical features

Aluminium Tweeter ‘wing

Rotatable aluminium  mini-baffle allows ‘toe-in’

Diamond Dome,   Nautilus™ tube-loaded tweeter

 Anti-resonance plug Flowport™

Drive units

1x ø25mm (1in) Diamond Dome, Nautilus™  tube-loaded tweeter

1x ø180mm (7in) Continuum cone bass/ midrange driver with anti-resonance plug

Frequency range (-6dB) 35Hz - 35kHz

Recommended  Amplifier Power 120W

Sensitivity 88dB

Nominal Impedance 8Ω

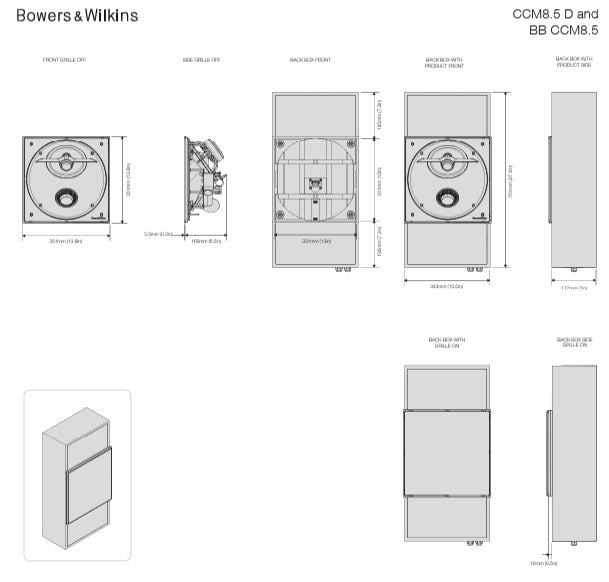

Frame (width/height) 351mm (13.8in)

Cut-out (width/height) 331mm (13in)

Protrusion 8mm (0.3in)

 Net weight 5kg (11 lbs.)

Back Box CCM8.5
