Bowers & Wilkins CWM8.3 D

Reference three-way in-wall speaker.

In Store Only. Priced and Sold as Each.

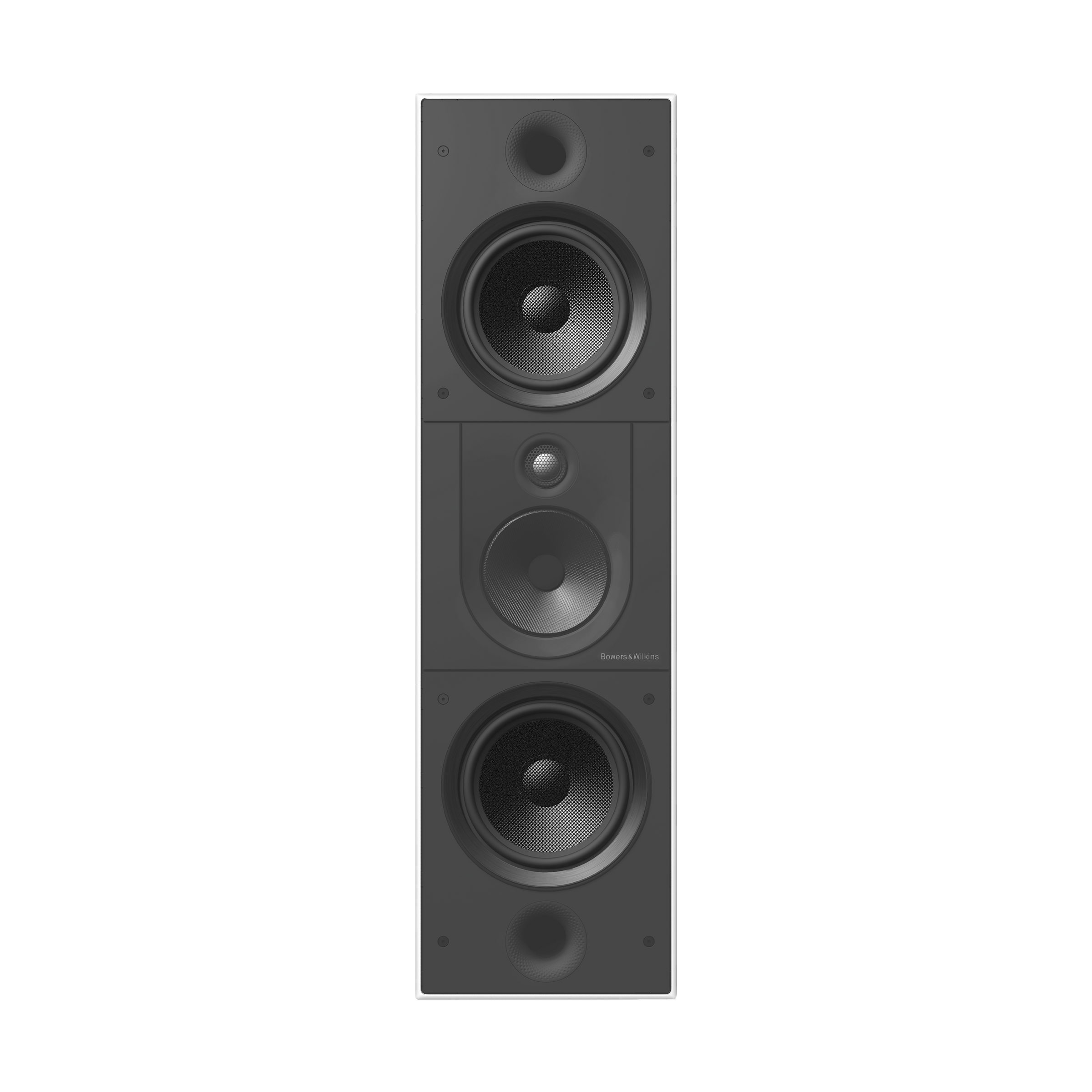

CWM8.3 D is a three-way in-wall loudspeaker, conceived to offer the  very best performance for a customer requiring great sound without  seeing the source. It features a decoupled Diamond dome tweeter, a 5in Continuum FST  midrange drive unit and two 7in Aerofoil low-frequency drivers. The central baffle is rotatable, so CWM8.3 D can be used in either  vertical or horizontal alignment. For optimum discretion when installed, the Continuum cone is given  a dark finish.

Technical Specifications

Description 3-way in-wall loudspeaker

Technical features

Aluminium mini baffle can be turned through 90 degrees

Diamond Dome, Nautilus™ tube-loaded tweeter

Anti-resonance plug

Flowport™

FST™ midrange unit

Carbon Aerofoil bass drivers

Drive units

1x ø25mm (1in) Diamond Dome, Nautilus™   tube-loaded tweeter

1x ø130mm (5in) Continuum midrange driver

2x ø180mm (7in) Aerofoil Bass drivers

Frequency range (-6dB) 30Hz - 35kHz

Recommended  Amplifier Power 200W

Sensitivity 89dB

Nominal Impedance 8Ω

Frame height 880mm (34.6in)

Frame width 254mm (10in)

Cut-out height 864mm (34in)

Cut-out width 238mm (9.4in)

Protrusion 8mm (0.3in)

Net weight 10.9kg

Back Box BB CWM8.3
