IN-STORE PURCHASE ONLY
Bowers & Wilkins
B&W Diamond 804 D5
Bowers & Wilkins 804 D5 Diamond
In Store Only. Priced as Pair.
Reference tower loudspeaker.
The 804 D5 brings reference-quality 800 Series Diamond performance to a more conventional floorstanding loudspeaker design.
Perfect for those who want a breathtaking listening experience in a smaller footprint, the 804 D5 features our Diamond dome tweeter, housed in the iconic Tweeter-on-Top, for astonishing high-frequency precision. This is complemented by our Continuum cone, located within an all-new Aluminium midrange enclosure, plus two Aerofoil bass drive units, rigidly mounted within the reverse-wrap cabinet. Stabilised on an upgraded plinth with tuned-mass damping, 804 D5 reproduces clarity with breathtaking accuracy. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 804 D5 looks and sounds incredible.
Ultimate drive unit technology
Pairing our most advanced and innovative drive unit technology, the 804 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for pure performance

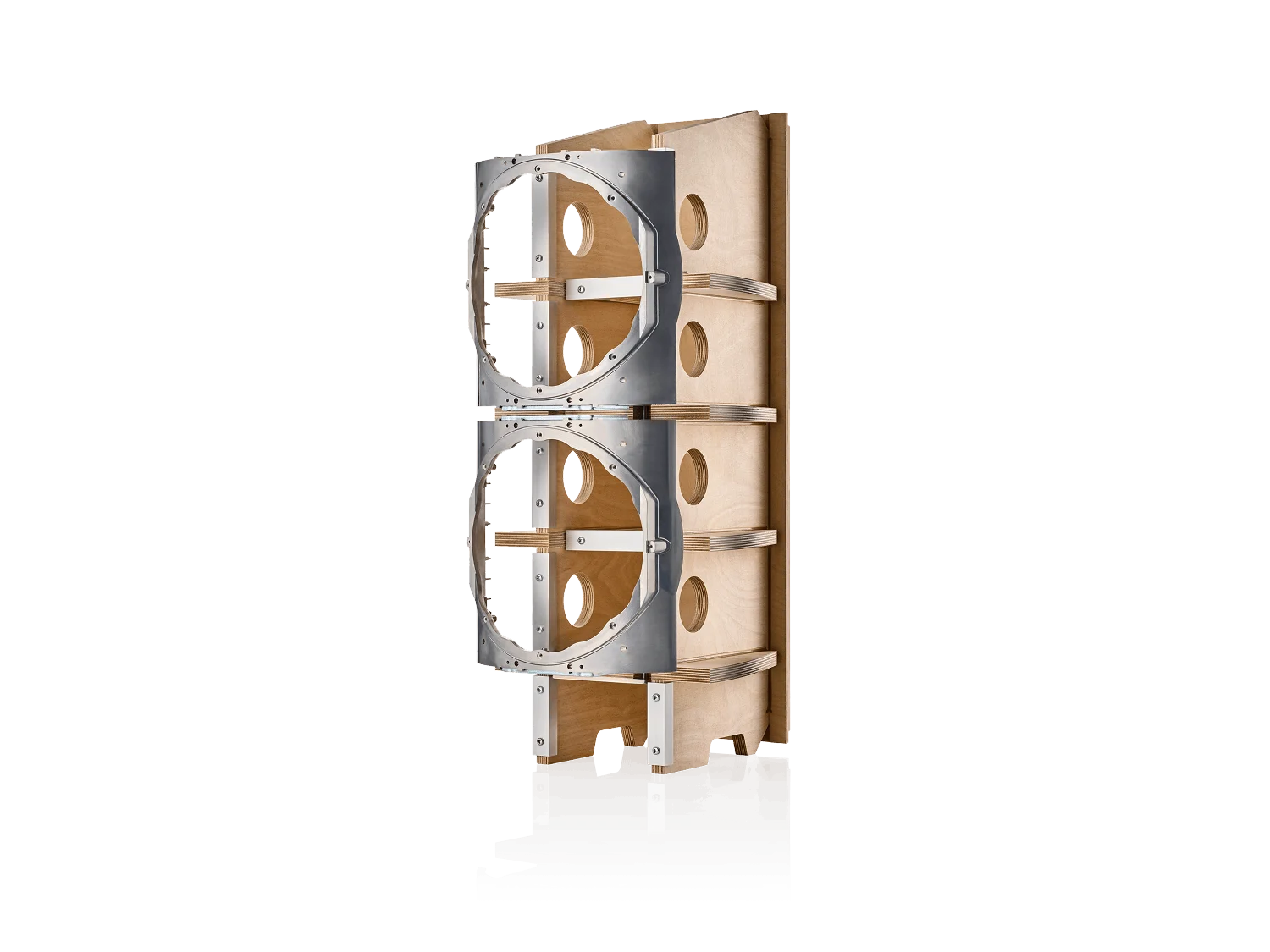

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section and midrange enclosure within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design
The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
-
Technical features Diamond dome tweeter

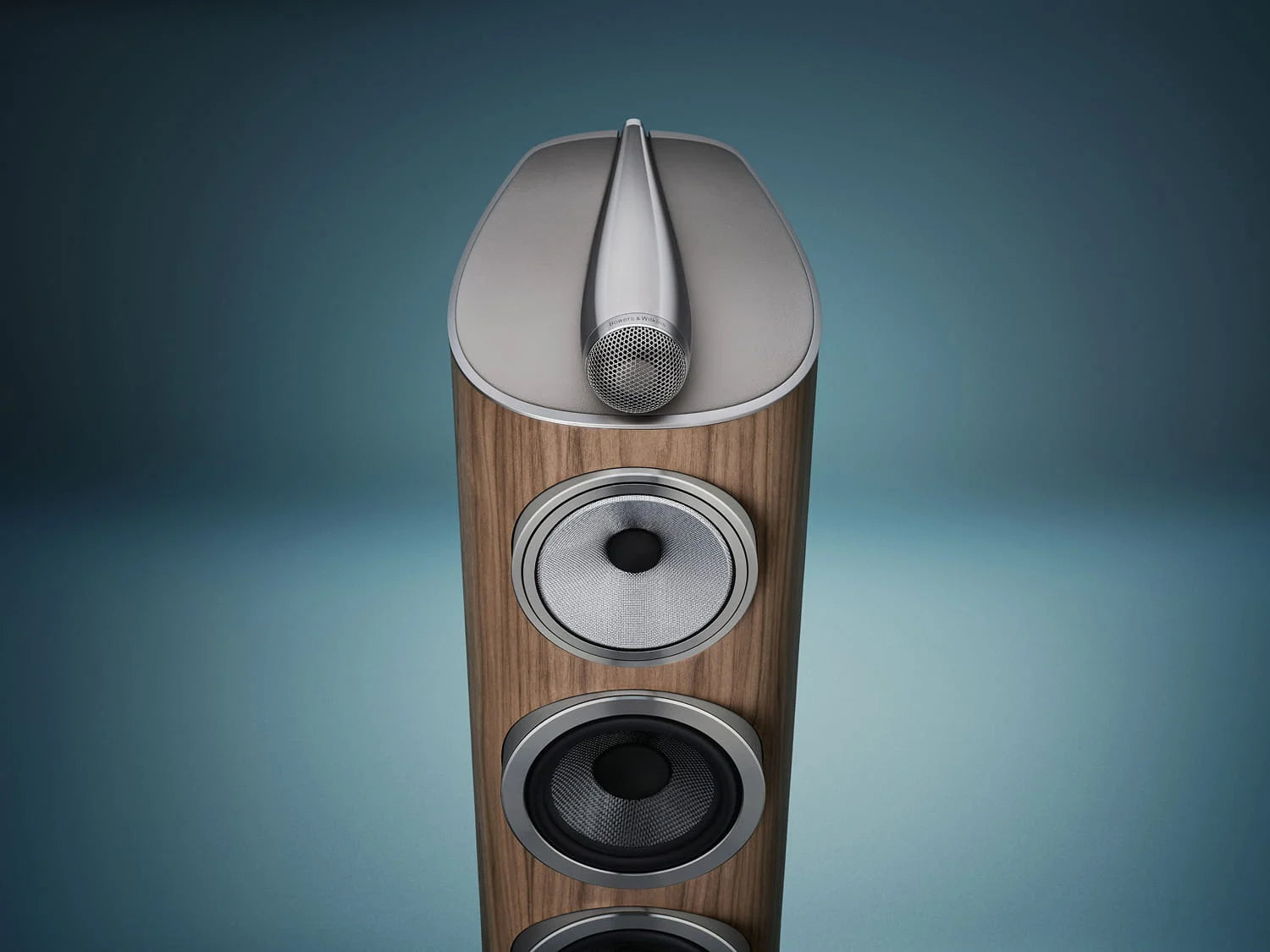

Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™ - Description 3-way vented-box system
-
Drive units 1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil™ bass - Frequency range-6dB 20Hz to 35kHz
- Frequency response 19Hz to 24kHz (+/-3dB)
- Sensitivity 89dB
-
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 8kHz
- Nominal impedance 8Ω (minimum 3.0Ω)
- Recommended amplifier power 50W – 1000W into 8Ω on unclipped programme
- Max recommended cable impedance 0.1Ω
- Dimensions
- Height: 1101mm (43.3 in) including tweeter and plinth
- Width: 238mm (9.4 in) cabinet only, 308mm (12.1in) including plinth
- Depth: 337mm (13.3in) cabinet only, 392mm (15.4in) including grille and terminals
- Net weight 40.3kg (88.7lbs)
- Cabinet finishes

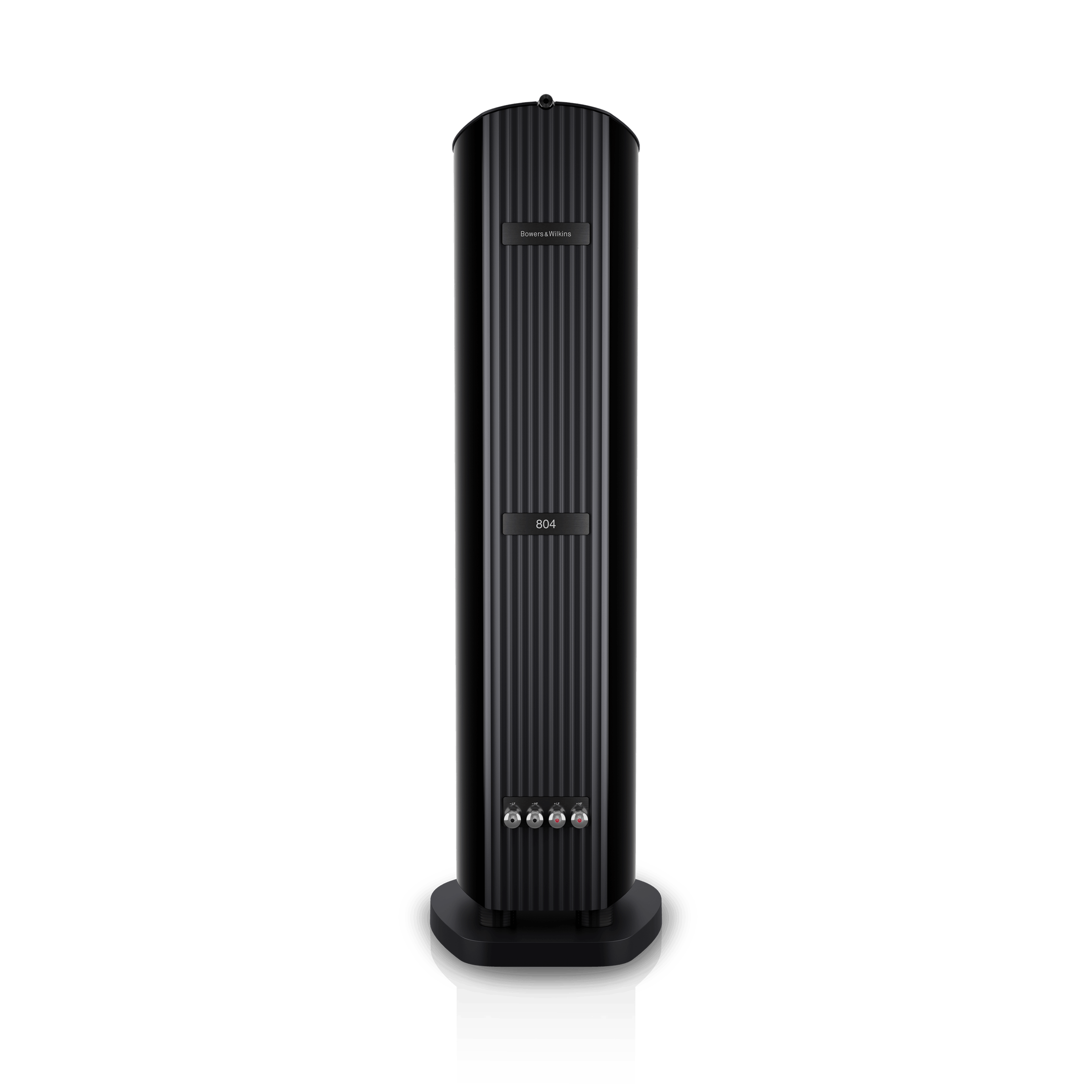

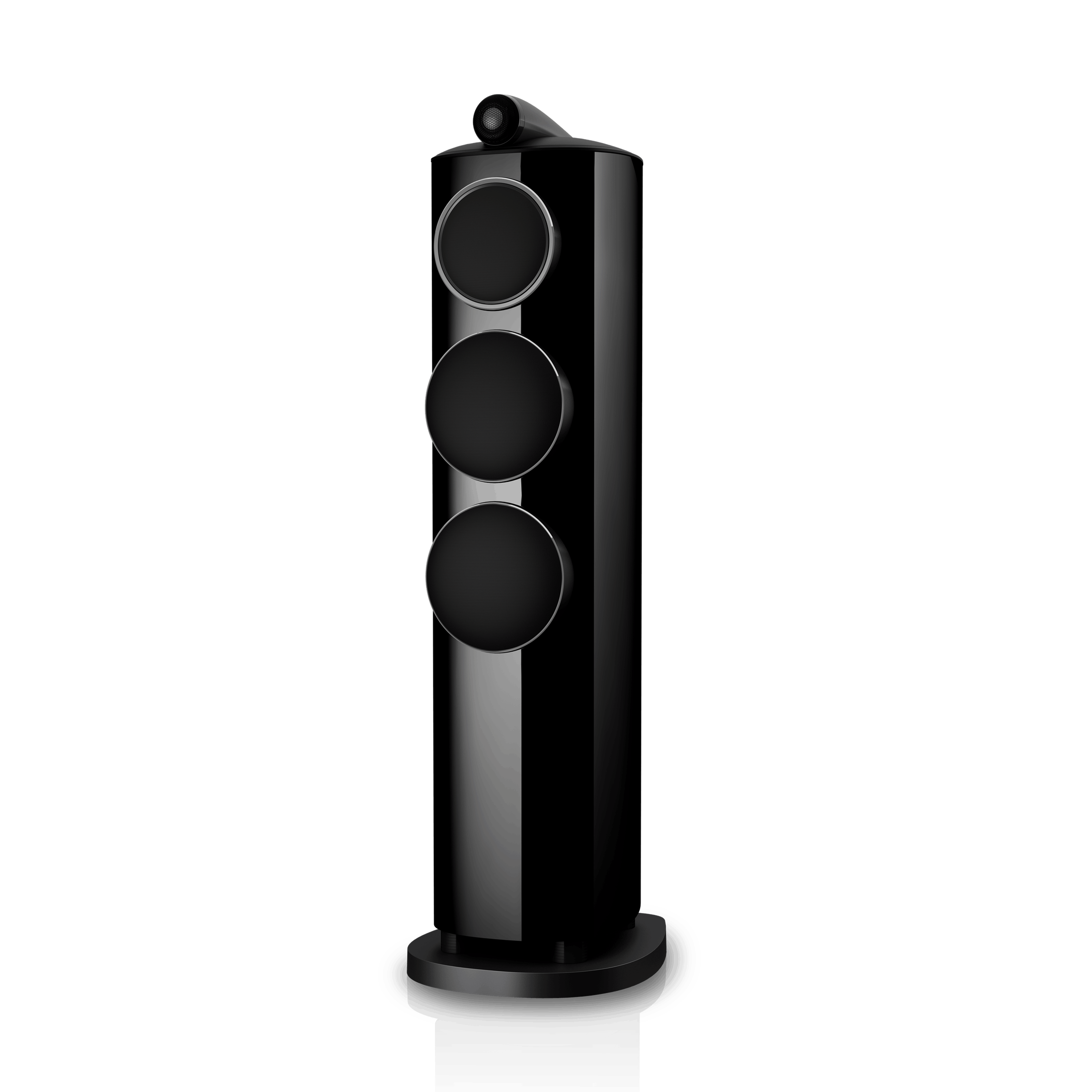

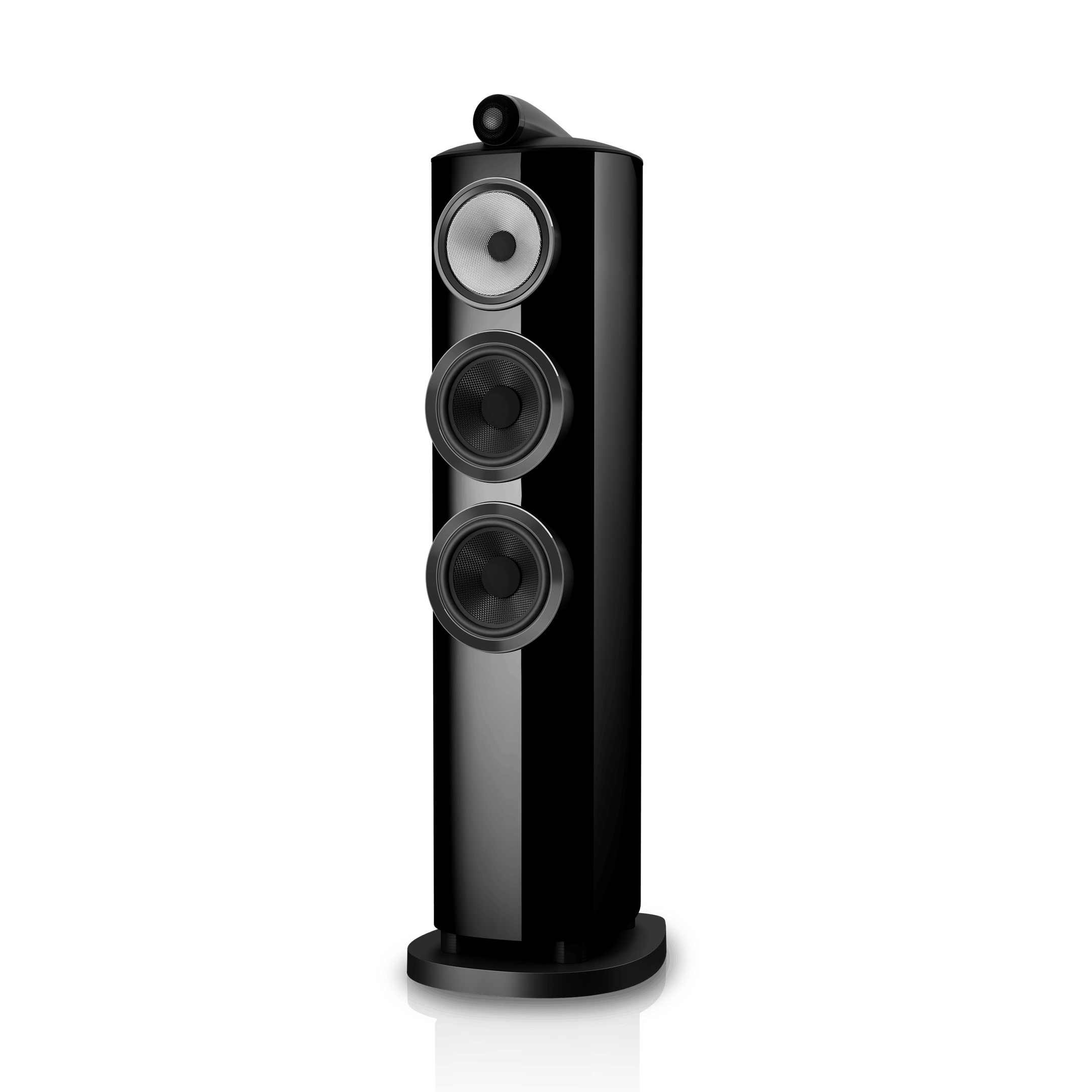

- Stealth Black

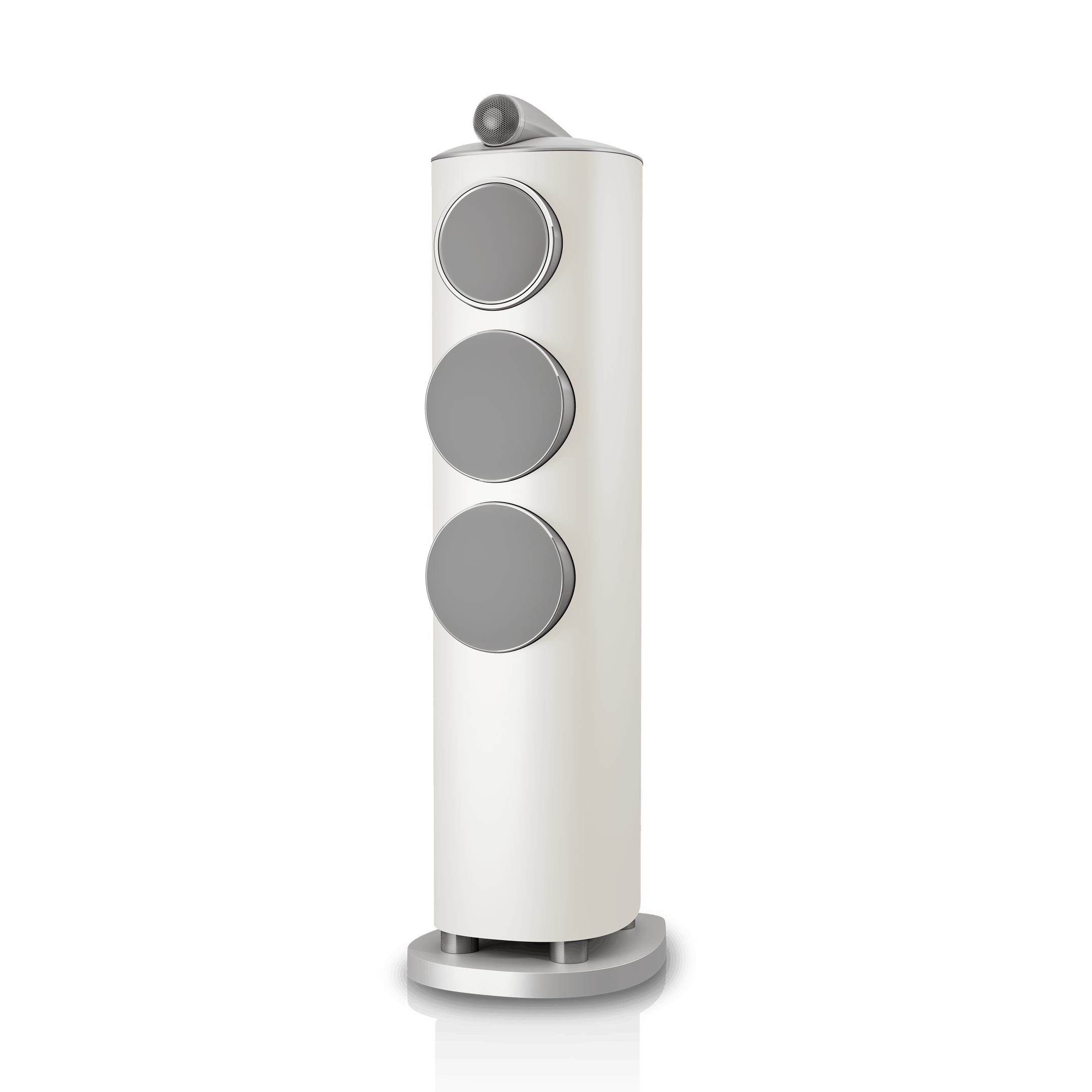

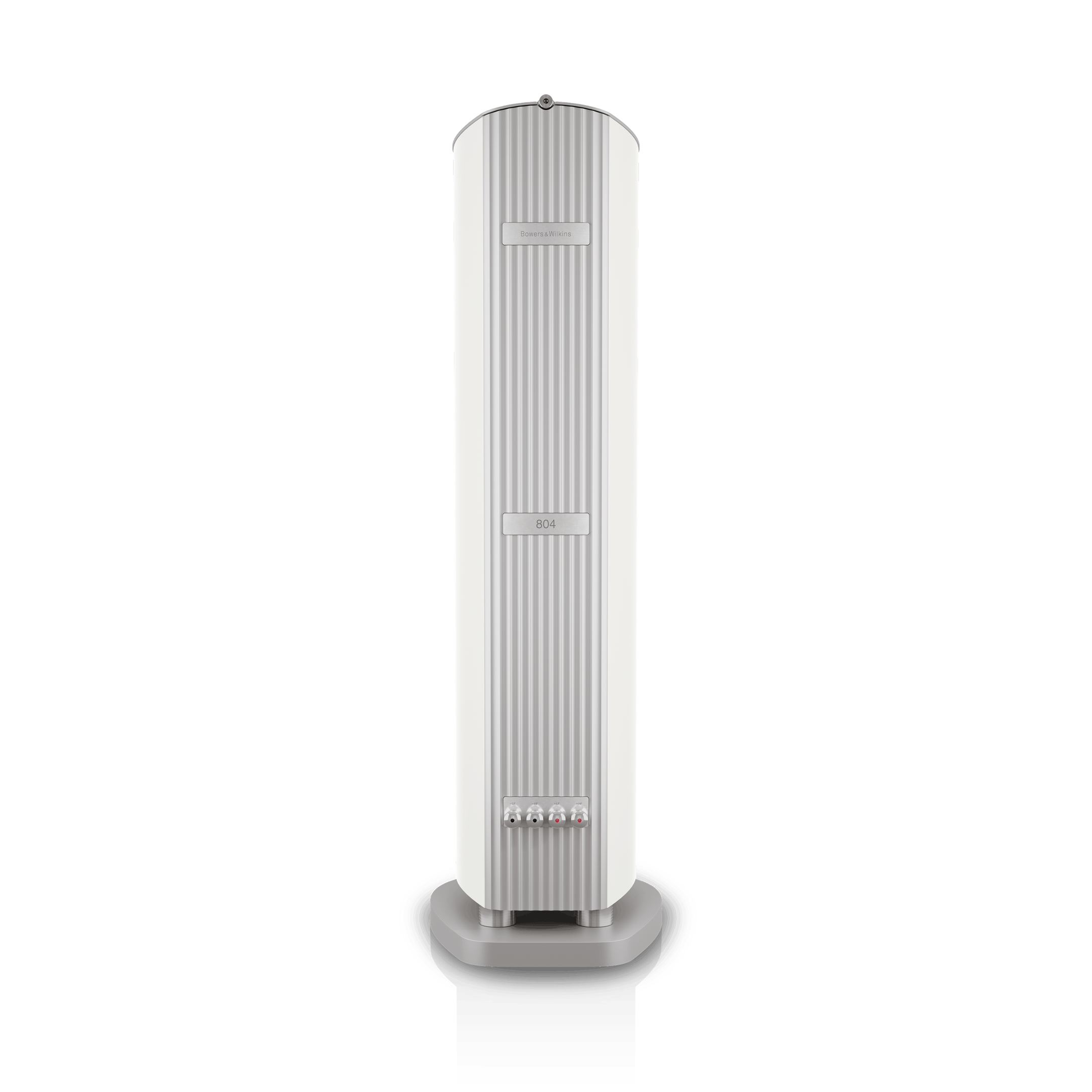

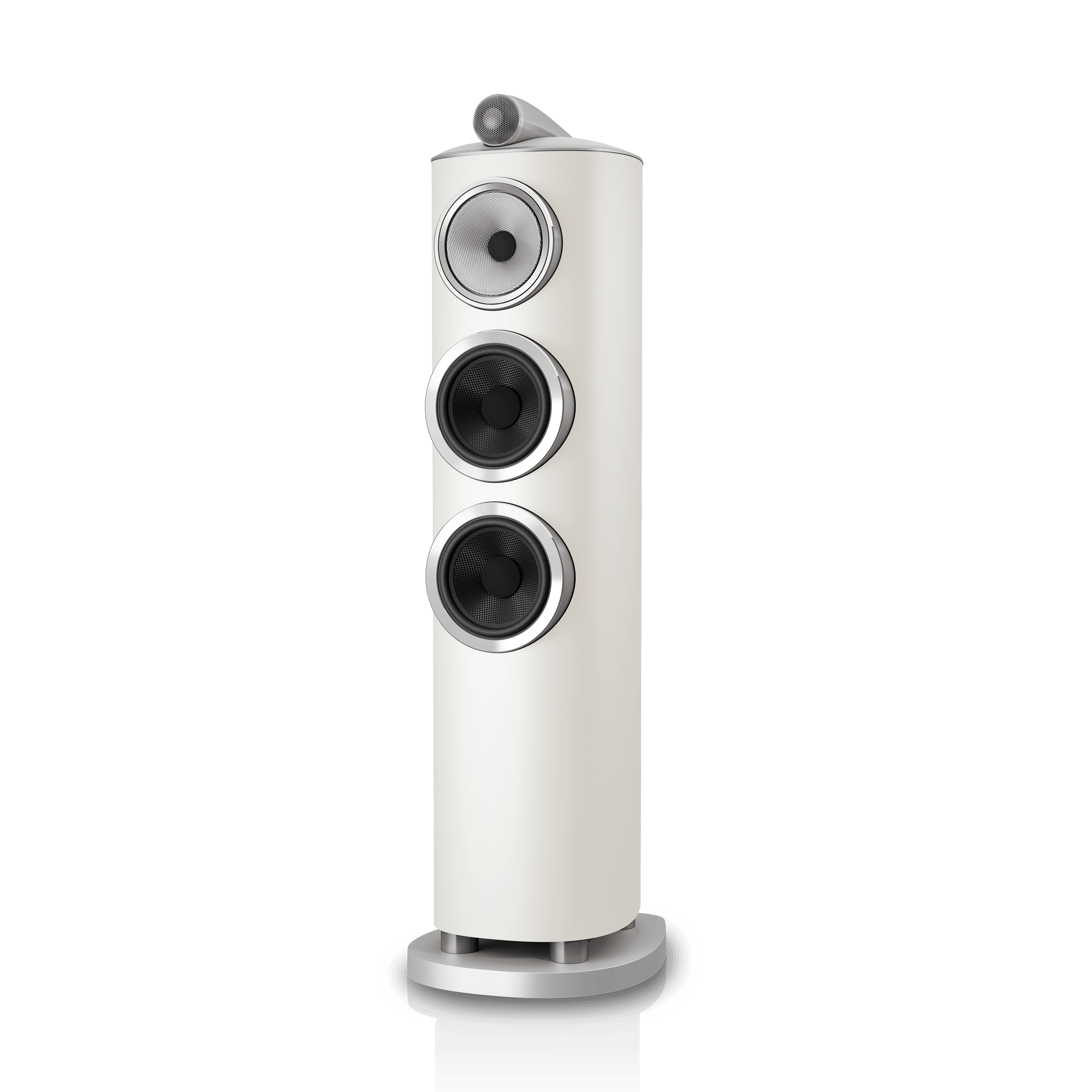

- Warm White

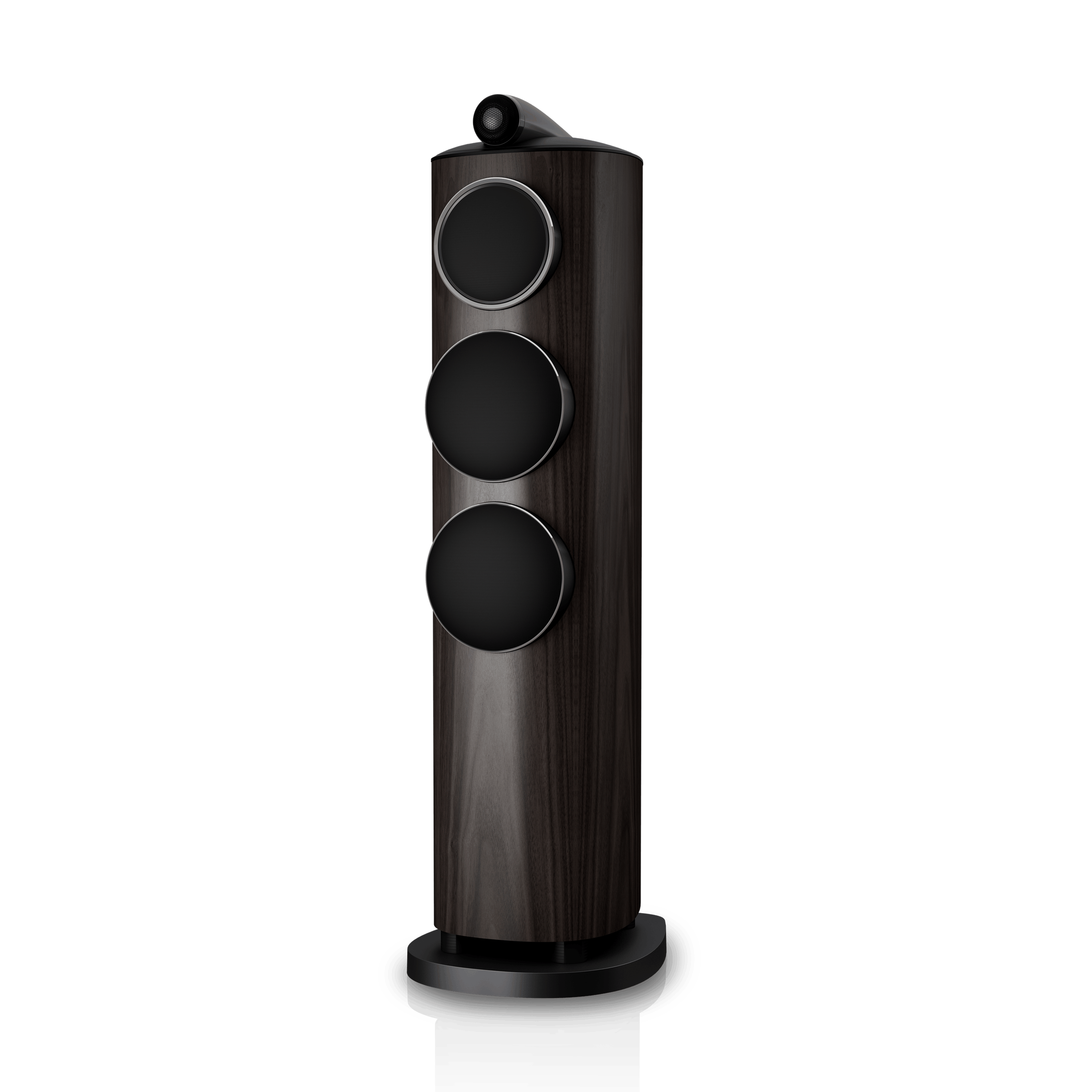

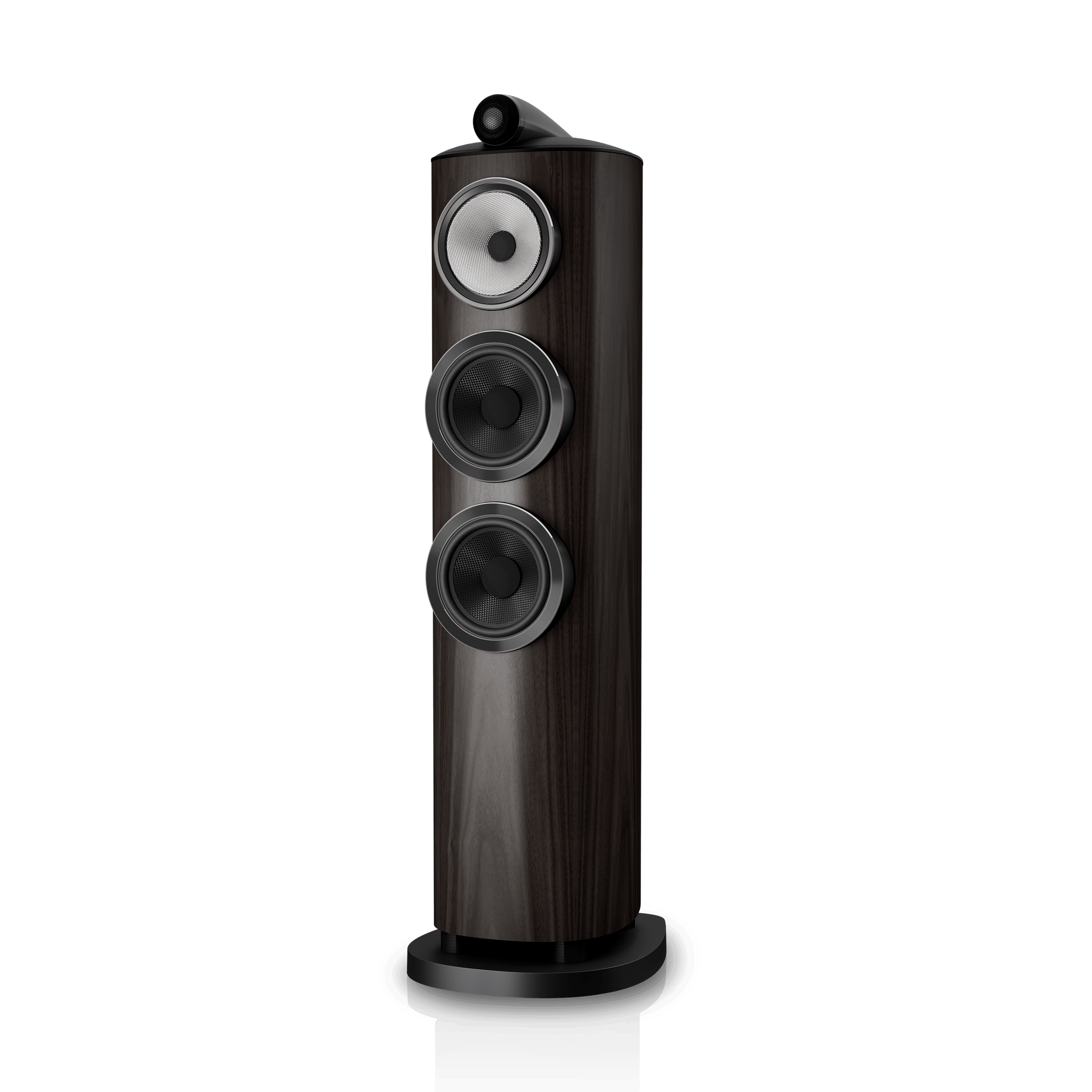

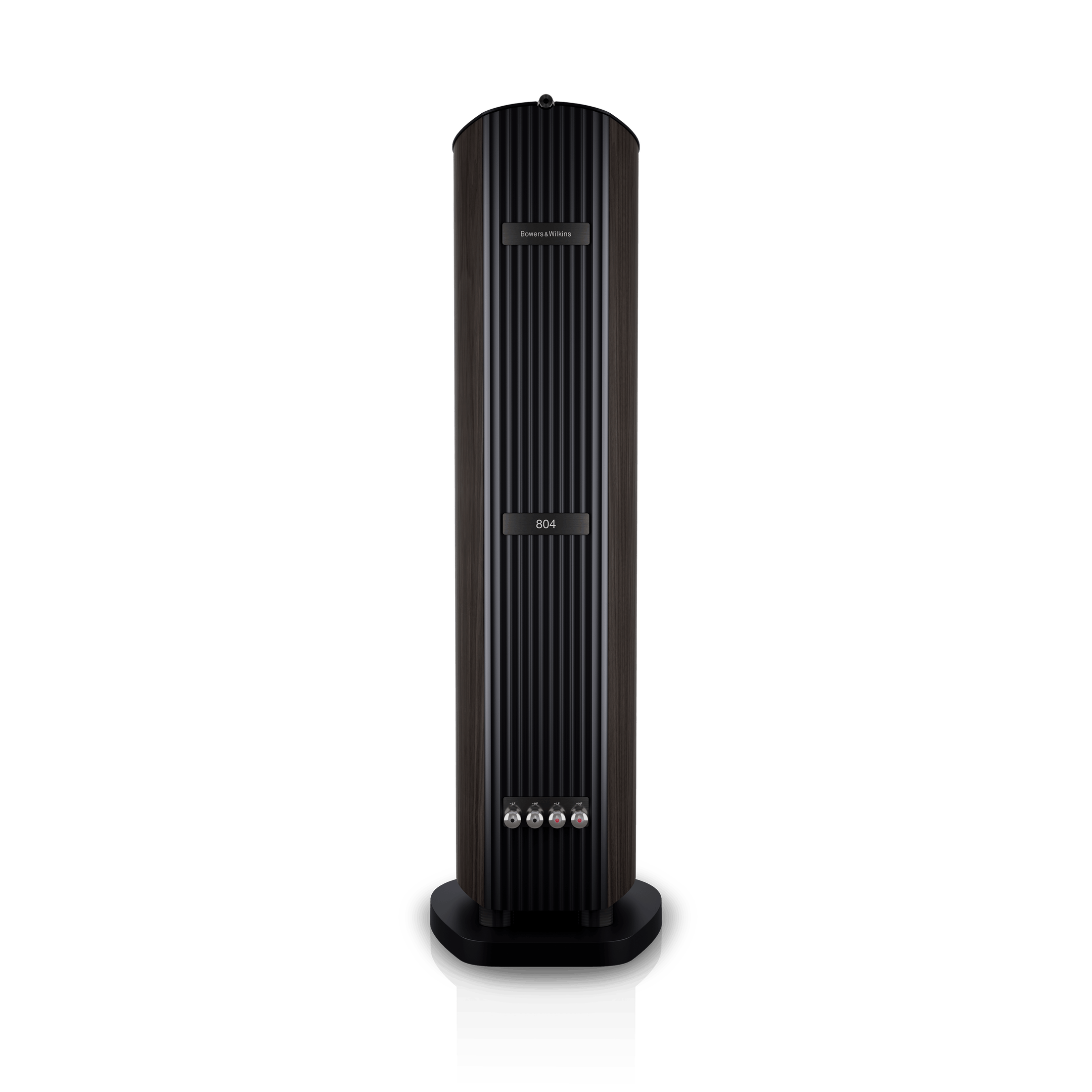

- Dark Walnut

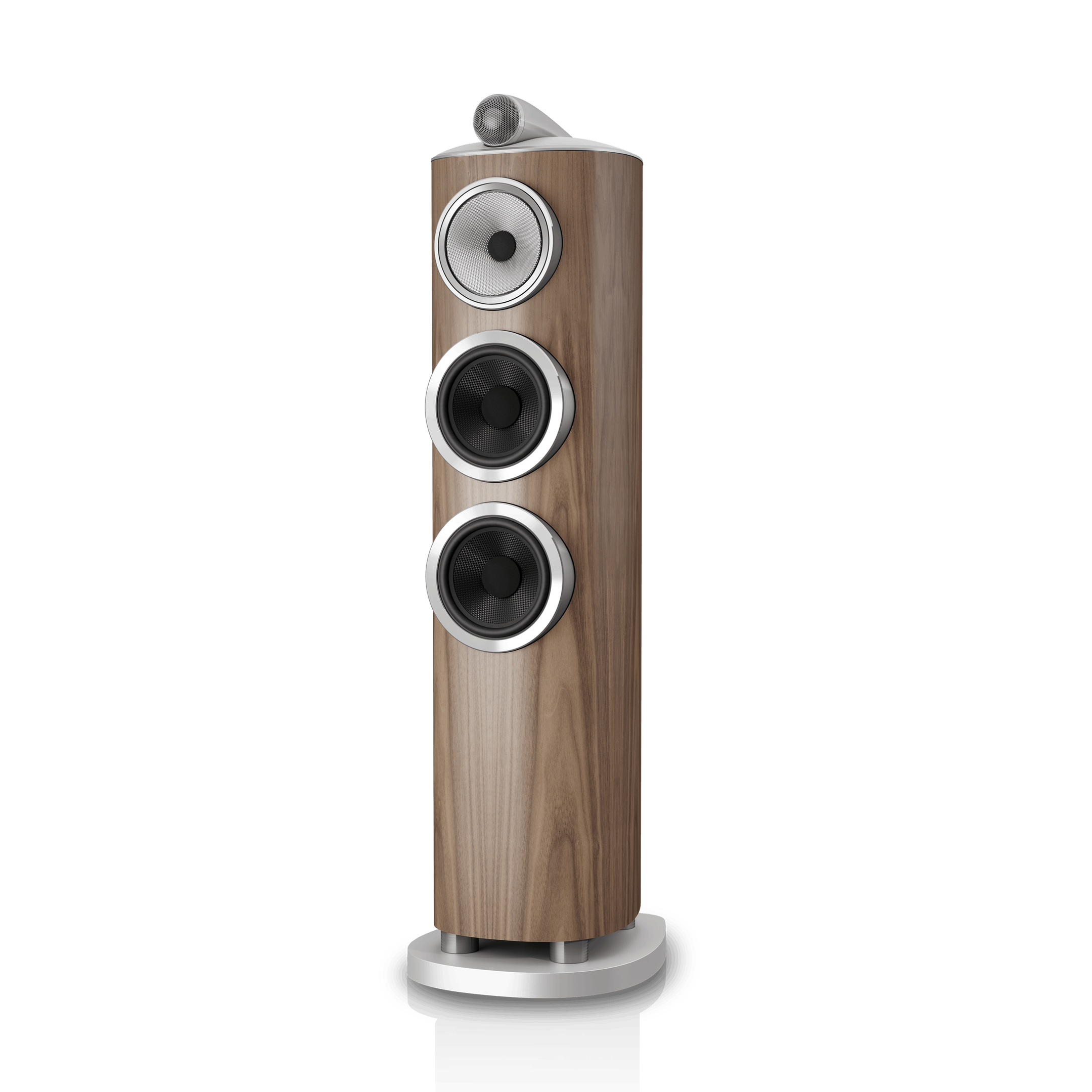

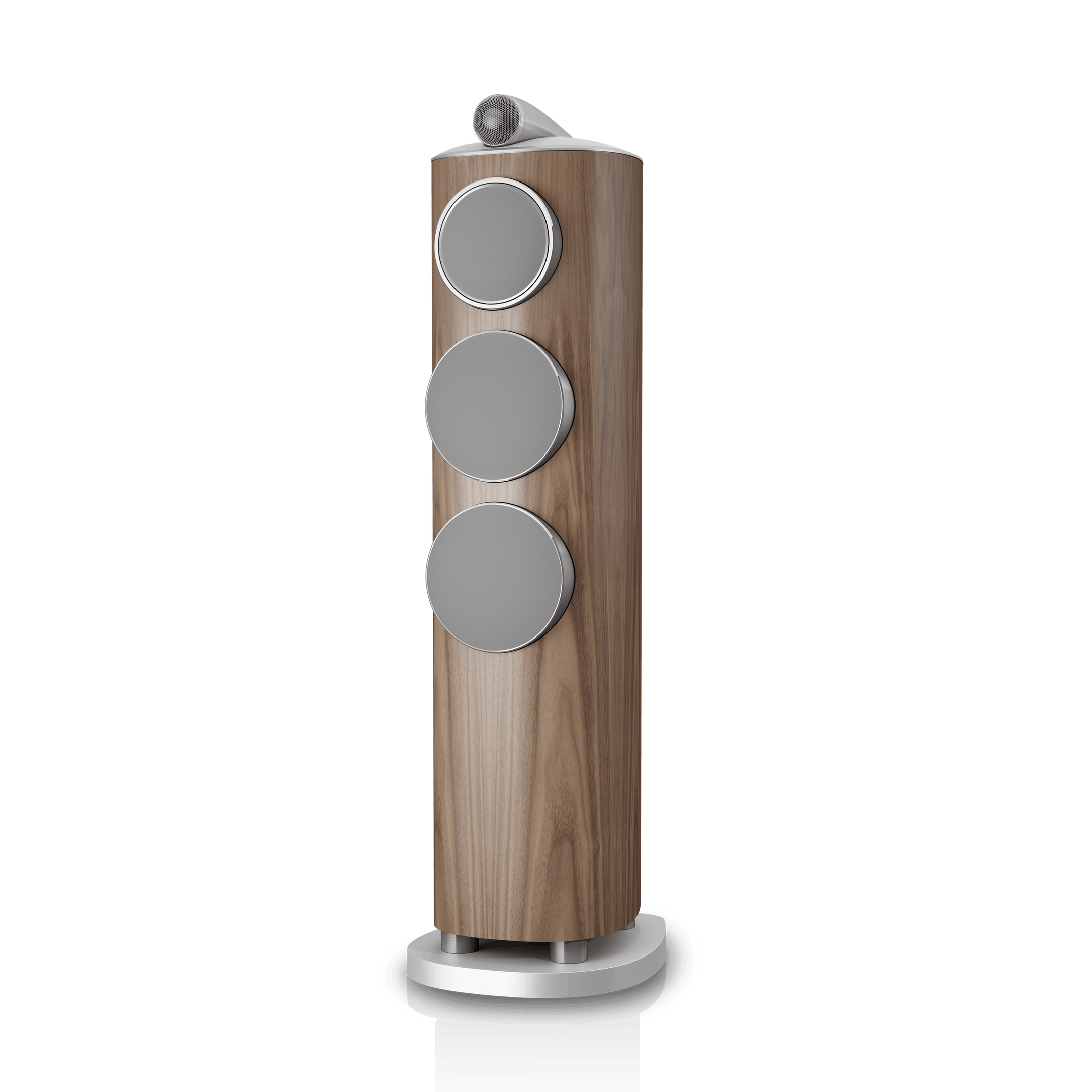

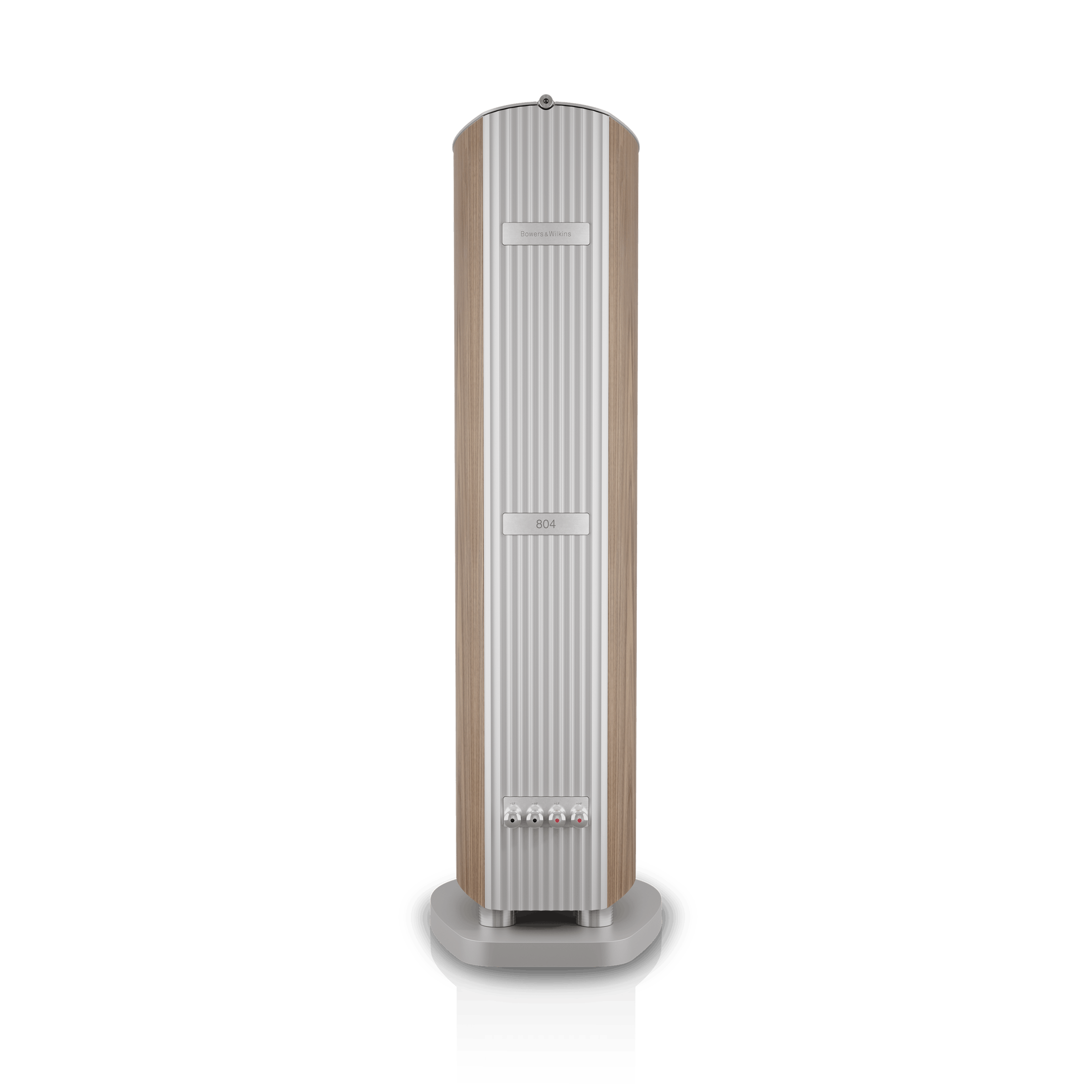

- Light Walnut
- Grille finishes
- Black (Stealth Black and Dark Walnut)
- Grey (Warm White and Light Walnut)
