Create a wireless multi-room music system by grouping NODE NANO with other Bluesound players. Control your music in every room from your phone, tablet, or desktop.

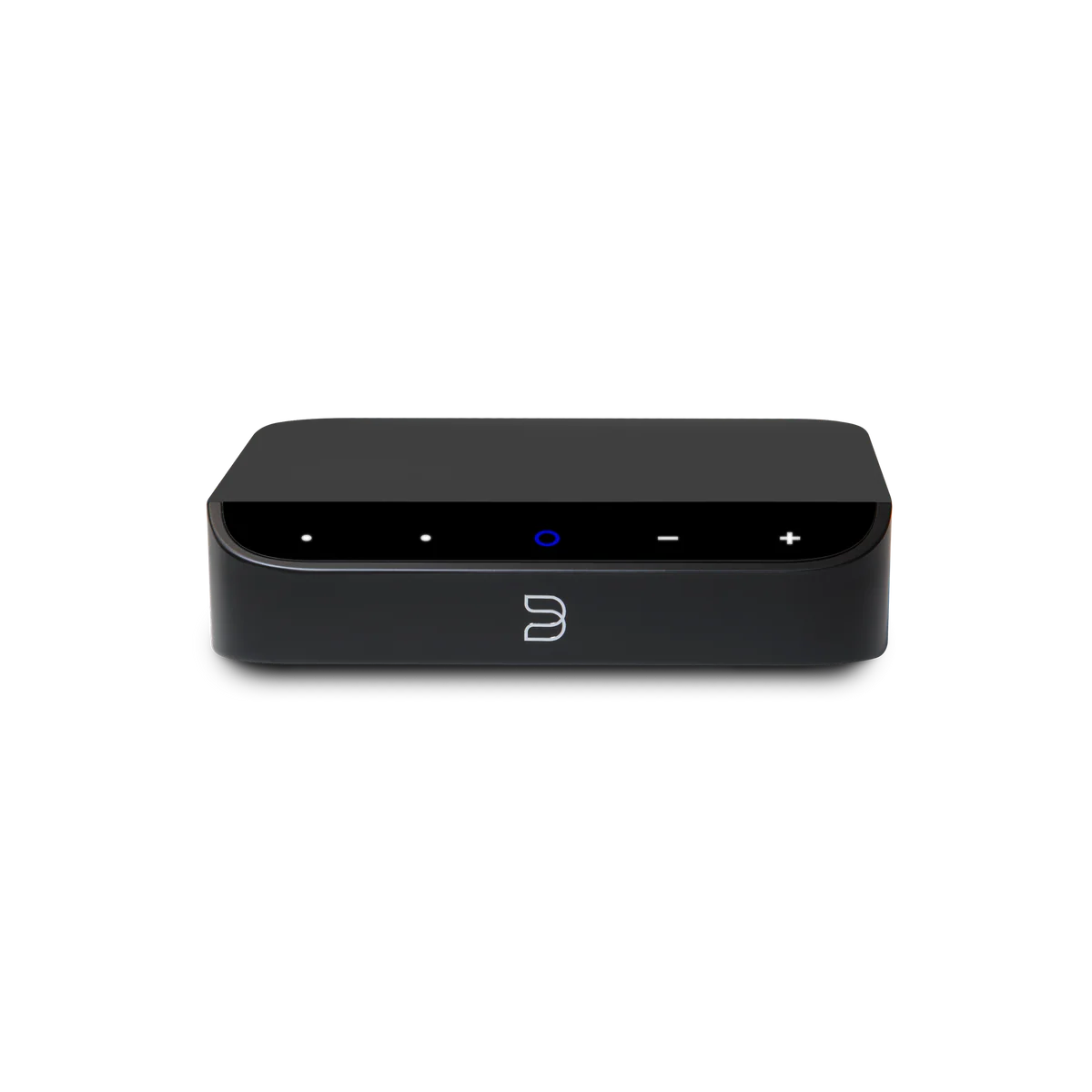

Compact and easy to set up, the NODE NANO connects to any audio system with RCA, Coax, Optical, and USB outputs. Dual-band Wi-Fi and gigabit Ethernet ensure uninterrupted streaming, while a backlit touch panel offers quick access to controls and presets. The NODE NANO also integrates seamlessly with popular smart home systems like Control4 and Crestron.
Audio
| Supported Audio File Formats |
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS |
| Native Sampling Rates |
up to 192 kHz |
| DAC |
ESS ES9039Q2M |
| Supported High-Quality Audio File Formats |
FLAC, MQA, WAV, AIFF, MPEG-4 SLS |
| Bit Depth |
16-24 |
| Signal-to-Noise Ratio |
-118 dB |
| DSD Support |
DSD256 |
| Audio Controls & EQ |
BluOS Controller App |
| Distortion |
THD+N, 0.0007% |
Software and Integrations
| Operating System |
BluOS |
| Supported Network File Sharing |
Server Message Block (SMB) up to 200,000 files |
| 3rd-Party Integrations |
AirPlay 2, Spotify Connect (also support for Spotify Lossless), Tidal Connect, Qobuz Connect, Roon Ready |
| App Controller Operating System |
iOS, Android, Windows, macOS |
| Album Art Supported |
JPG, PNG |
| Control System Integrations |
Crestron, Control4, RTI, ELAN, URC, Lutron, Josh.ai |
| Processor |
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core |
| Music Services & Internet Radio |
23+ Music Services Internet Radio |
| Voice Control Integrations |
Amazon Alexa Skills |

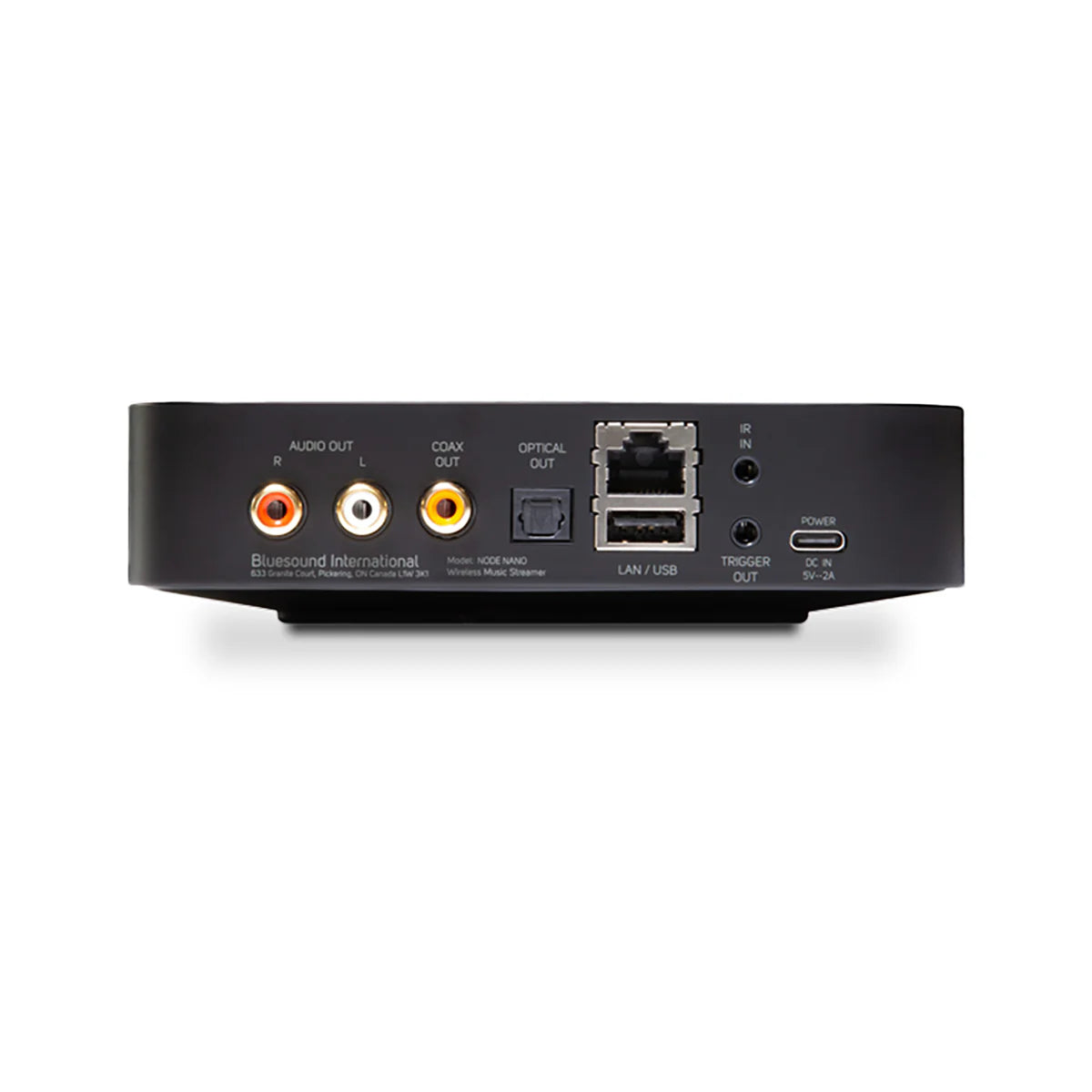

Connections
| Power Supply |
USB-C (5V-2A) |
| Optical/Analog Input |
IR Sensor Built In - front panel with IR Remote Learning |
| Coaxial Output |
RCA |
| Ethernet/LAN |
Ethernet RJ45, Gigabit 1000 Mbps |
| IR Input |
3.5mm Jack |
| Optical Output |
TOSLINK digital optical |
| Wi-Fi Built In |
Wi-Fi 5 (802.11ac), dual-band |
| USB IN |
Type A (Fat32 Formatted) - External Storage only; Local Server Mode |
| Trigger Out |
12 Volt |
| Bluetooth Quality |
Bluetooth 5.2 aptX Adaptive |
| Audio Output |
Analog RCA Stereo with Fixed option; USB Audio 2.0 (Type A) |
| Headphone Output |
Bluetooth |
| Bluetooth Connectivity |
Two-Way (transmit & receive) |
| Subwoofer Output |
Wireless to PULSE SUB+ |
General
| Finish |
Black: Matte Satin Paint |
| Version |
N030 |
| Product Weight |
0.57kg / 1.26lbs |
| Mounting |
Bottom-panel keyhole slot |
| Product Dimensions |
143 x 36 x 143mm (W x H x D) 5.6 x 1.4 x 5.6 in (W x H x D)* *Non-metric measurements are approximate. |
| Included Accessories |
• USB Power Supply • 4x International Plug Adapter • USB-C Power Cable • Stereo RCA to RCA Cable • Ethernet Cable • Safety/Warranty Guide • Quick Setup Guide |
| Storage Environment |
-10°C to 50°C, 20% to 80% relative humidity |
| Operating Environment |
0°C to 40°C |
