KENWOOD

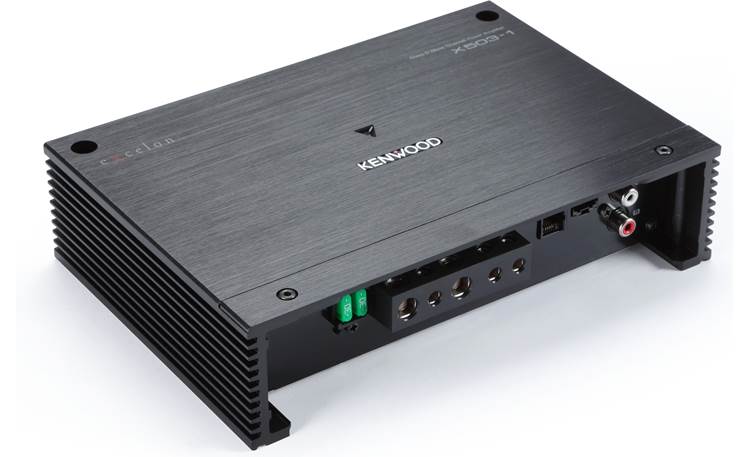

Kenwood eXcelon X503-1

$300.00 USD
Snap Logo Lease for as low as $/week Apply Now

XR901-5



  • Big bass from a tiny amp

    Subwoofer aficionados will tell you that lots of power is key to great-sounding bass, but sometimes you just don't have enough space in your car for a large amplifier. Kenwood's Excelon X503-1 mono sub amp provides up to 500 watts RMS to your subwoofer and will fit almost anywhere in your vehicle. Kenwood uses audiophile-grade tech, including shielded output circuitry, high-quality capacitors, and Class D technology to ensure the amp will sound great and run cool.

    Dialing it in

    A precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. A subsonic filter removes ultra-low bass so that your amp and sub can operate more efficiently. A wired remote lets you control your sub's level from the front seat.

    Integrates well

    The amp accepts input signals via RCA cables from an aftermarket receiver or by way of a factory radio's speaker wiring so it'll work with almost any non-premium mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to install a separate remote turn-on lead running from the receiver or fuse box.

    Kenwood Excelon X503-1

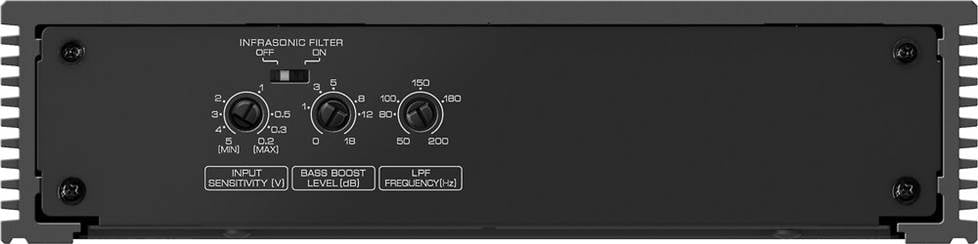

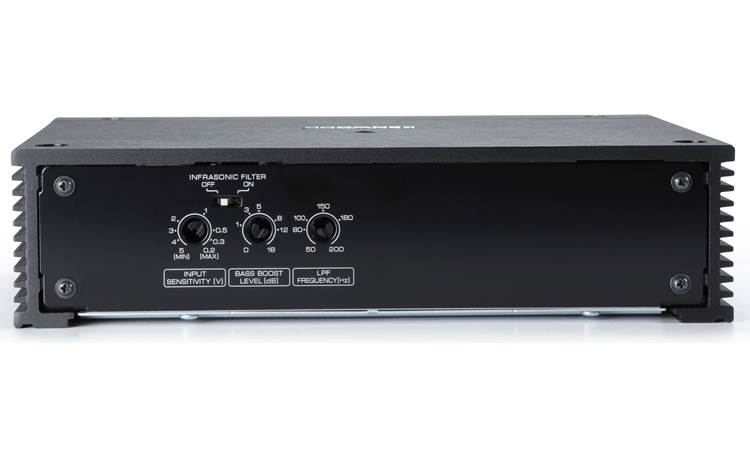

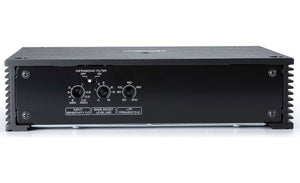

    X503-1 controls

  •

  • Rich and Immersive High-Resolution Audio

    High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

  • HIGH PERFORMANCE PARTS

    Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

  • DEEP BASS SOUND

    By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

  • ENHANCED SIGNAL TO NOISE RATIO

    The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

  • SPECIALIZED CIRCUIT DESIGN

    The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.



    Product highlights:

    • mono subwoofer amplifier
      • 300 watts RMS x 1 at 4 ohms
      • 500 watts RMS x 1 at 2 ohms
    • CTA-2006 compliant
    • Class-D amplifier design
      • frequency response: 20-200 Hz
    • variable low-pass filter: 50-200 Hz, 24 dB/octave
    • variable bass boost: 0-18 dB at 40 Hz
    • selectable subsonic filter: 25 Hz, 24 dB/octave
    More info:
    • wired remote level control included

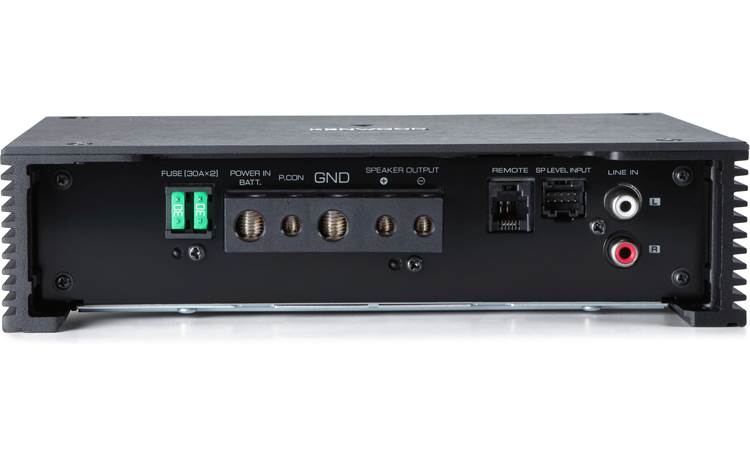

    • preamp and speaker-level inputs
      • speaker wire adapters included
      • speaker-level inputs can handle up to 12V (36W)
      • signal-sensing turn-on with speaker-level input
    • wiring and hardware not included with amplifier
      • 8-gauge power and ground leads recommended
    • fuse rating: 30A x 2
    • dimensions: 8.4"W x 2.09"H x 5.95"D
    • warranty: 2 years
    • MFR # X503-1
    • Item # 113X5031

    What's in the box:

    • Mono subwoofer amplifier (two installed 30A mini-ATC fuses)
    • 7" Speaker-level input harness

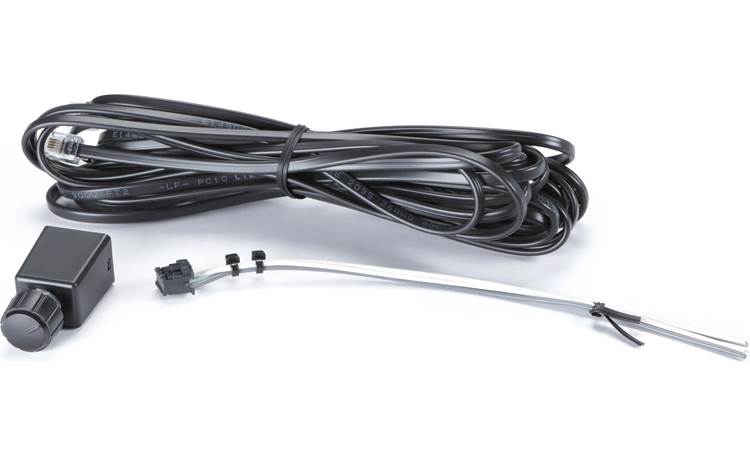

    • Remote level control
    • 19.5' Remote level control cable (RJ-14 connectors on both ends)
    • Hex nut
    • Flat washer
    • Four 1/2" screws
    • Two Allen keys (4mm & 2.5mm)
    • Instruction manual (En/ Sp/ Fr)
    • Warranty information
