KENWOOD

Kenwood eXcelon X803-5

$500.00 USD
Snap Logo Lease for as low as $/week Apply Now



  • You'll get high-fidelity power out of this tiny amp

    Need more power for your system but lack space? Kenwood's Excelon X803-5 five-channel amplifier delivers 50 watts of high-resolution output to each of your front and rear speakers, while sending up to 500 watts RMS to a sub, yet still fits almost anywhere in your vehicle. Kenwood uses audiophile-grade tech, including shielded output circuitry, high-quality capacitors, and full-range Class D technology to ensure pristine sound and cool operation. And the X803-5 carries a High-Res Audio certification so you can be sure all your favorite tunes will sound their best.

    Versatility

    You can also use this amp in 3-channel mode to power a pair of high-performance speakers with 150 watts RMS each, and a sub with 500 watts. A precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. A wired remote lets you control your sub's level from the front seat.

    Integrates well

    The amp accepts input signals via RCA cables from an aftermarket receiver or by way of a factory radio's speaker wiring so it'll work with almost any non-premium mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to install a separate remote turn-on lead running from the receiver or fuse box.

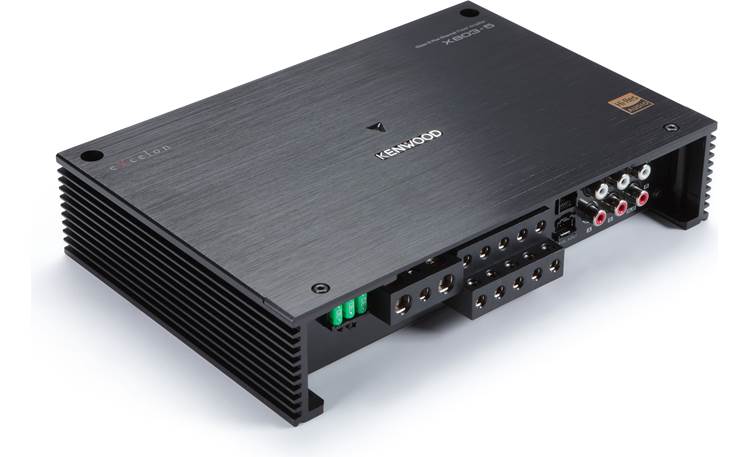

    Kenwood Excelon X803-5

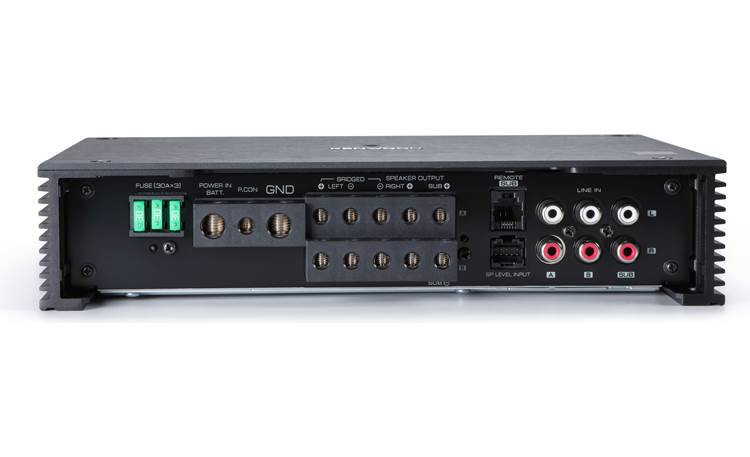

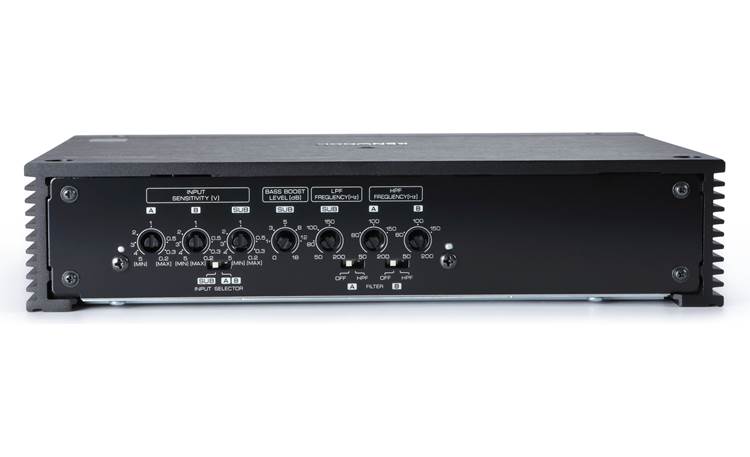

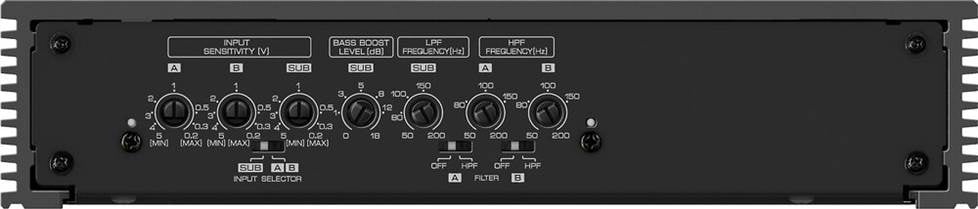

    X803-5 controls


  • Product highlights:

    • 5-channel car amplifier
      • 50 watts RMS x 4 + 300 watts x 1 at 4 ohms
      • 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
      • 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
    • CTA-2006 compliant
    • Class D amp technology
      • frequency response: 20-50,000 Hz
      • Hi-Res Audio certified
    • variable high-pass filters on A and B channels: 50-200 Hz, 12 dB/octave
    • variable low-pass filter on sub channel: 50-200 Hz, 24 dB/octave
    • variable bass boost on sub channel: 0-18 dB at 40 Hz
    More info:
    • wired remote control for sub channel included
    • preamp and speaker-level inputs
      • speaker wire adapters included
      • speaker-level inputs can handle up to 12V (36W)
      • signal-sensing turn-on with speaker-level input
    • wiring and hardware not included with amplifier
      • 4-gauge power and ground leads recommended
    • fuse rating: 30A x 3
    • dimensions: 9.77"W x 2.09"H x 6.7"D
    • warranty: 2 years
    • MFR # X803-5
    • Item # 113X8035

    What's in the box:

    • 5-Channel amplifier (three installed 30A mini-ATC fuses)
    • 7" Speaker-level input harness

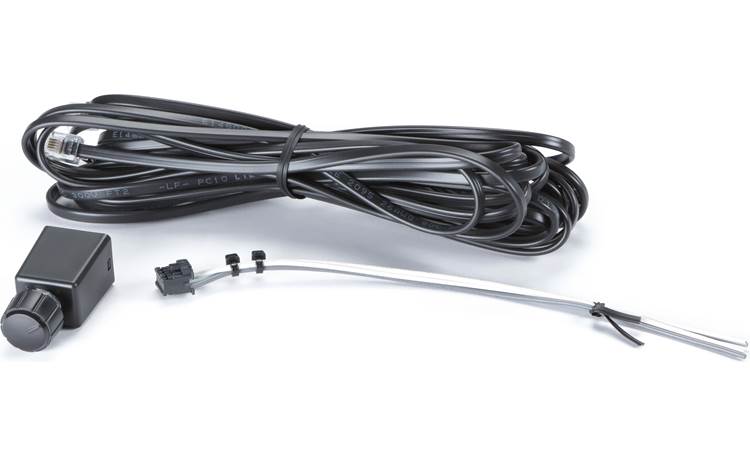

    • Remote level control
    • 19.5' Remote level control cable (RJ-14 connectors on both ends)
    • Hex nut
    • Flat washer
    • Four 1/2" screws
    • Two Allen keys (4mm & 2.5mm)
    • Instruction manual (En/ Sp/ Fr)
    • Warranty information
