System Suggestion
Combine the CI 16-60 DSP with the CI 580 V2 4 zone BluOS rack mount streamer or the Bluesound NODE to create a complete hi res multi-room package of incredible value and quality.
“Once again, NAD has pulled off a clever balancing act regarding price, performance and features with the new CI 16-60 DSP. Perhaps even more impressively, it satisfies the needs and desires of the seasoned installer and critical listener. The former will appreciate the robustness that allows superior performance in all rooms regardless of cable length, and the IP access to key setup parameters and remote troubleshooting to save time and money.” – Stereonet
Key Features
- 16 Channels x 60 Watts @ 8 Ohms, Hybrid Digital with Hypex UcD
- Bridgeable to 8 channels X 120 Watts @ 8 Ohms
- Effectively handles long cable runs and difficult speaker loads
- Ethernet port for IP control, custom web UI with virtual I/O panel and performance diagnostics
- DSP with 5 band parametric EQ, plus high and low pass filters

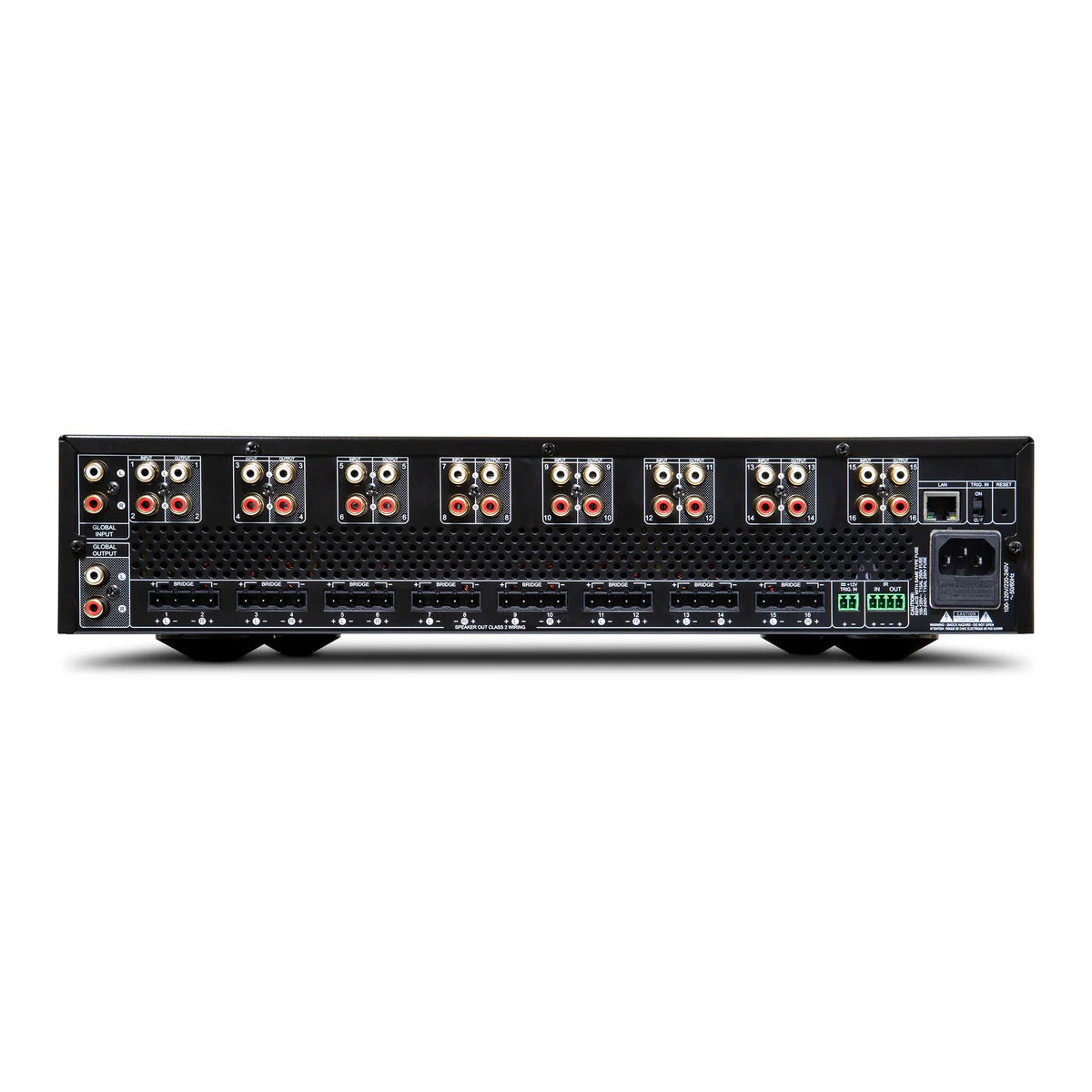

- 8 stereo RCA inputs with loop though
- Dual global Inputs/Outputs
- 2U Rack height
- 5W Standby Mode, 3W Network Standby
- 12V Trigger In; IR In/Out

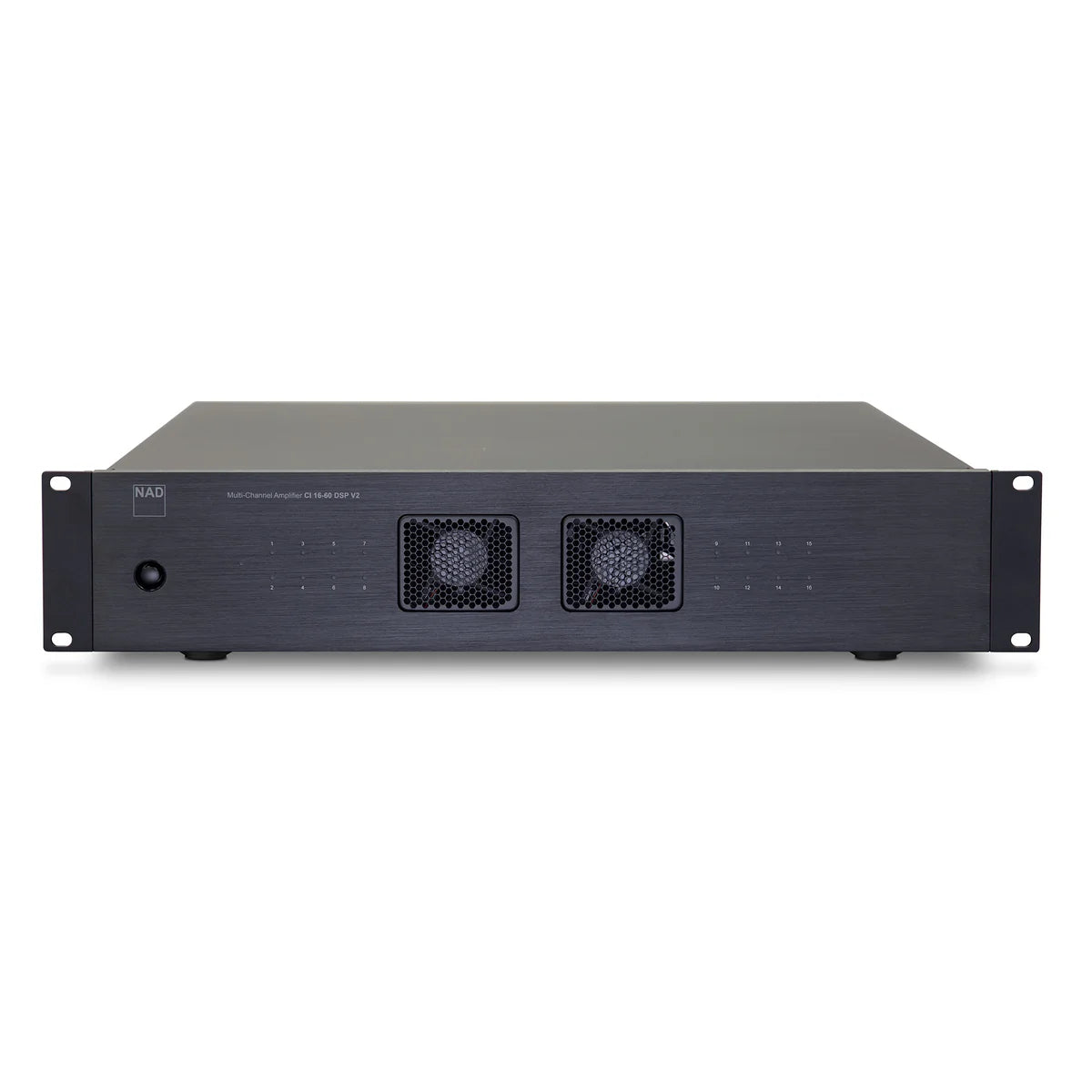

- Thermostatic fan cooling with front vents
- Universal AC Power Supply
- Multiple Power-up options including Auto Sense turn on, as well as Eco Mode
GENERAL
Continuous output power into 8 ohms |
60 W (all channels driven, 1kHz 0.05% THD 65 W (two channels driven, 1kHz 0.05% THD |
into 4 ohms |
65 W (all channels driven, 1kHz 0.05% THD 105 W (two channels driven, 1kHz 0.05% THD |
Continuous output power into 8 ohms at Bridged mode |
140 W (all channels driven, 1kHz 0.05% THD 240 W (two channels driven, 1kHz 0.05% THD |
THD (1 W to 50 W, 8 ohms and 4 ohms) |
0.05 % (20 Hz – 3 kHz) 0.2 % (3kHz – 20 kHz) |
Signal-to-Noise Ratio |
80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
Clipping power (all channels driven) |
60 W (1 kHz 8 ohms 1 % THD) 80 W (1 kHz 4 ohms 1 % THD) |
Clipping power into 8 ohms at Bridged mode |
150 W (1 kHz 1 % THD – all channels driven) 250 W (1 kHz 1 % THD – two channels driven) |
IHF Dynamic Power (all channels driven) |
8 ohms: 65 W 4 ohms: 125 W |
IHF Dynamic Power (two channels driven) |
8 ohms: 70 W 4 ohms: 125 W |
IHF dynamic power (Bridged mode, all channels driven) |
8 ohms: 270 W |
IHF Dynamic Power (two channels driven) |
8 ohms: 280 W |
Peak output current |
15 A (1 ohm, 1 ms) |
Damping factor |
110 (20 Hz to 1 kHz 8 ohms) |
Frequency response |
±1dB (20 Hz – 20 kHz) |
Channel separation |
60 dB (1 kHz) 5 dB (10 kHz) |
Maximum undistorted input level |
2900 mV |
Input sensitivity (for 50 W in 8 ohms, maximum volume) |
760 mV |
Input impedance |
20 kohms//220pF |
Analog input audio sense threshold (one channel with signal) |
3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz) |
Trigger IN level |
3 – 30 Vdc |
Standby power |
0.5W |
Gross dimensions (W x H x D)* |
483x100x435mm 19 1/16 x 3 15/16 x 17 3/16 inches |
Net Weight |
10.3 kg (22.7 lbs) |
Shipping Weight |
12.8 kg (28.2 lbs) |
