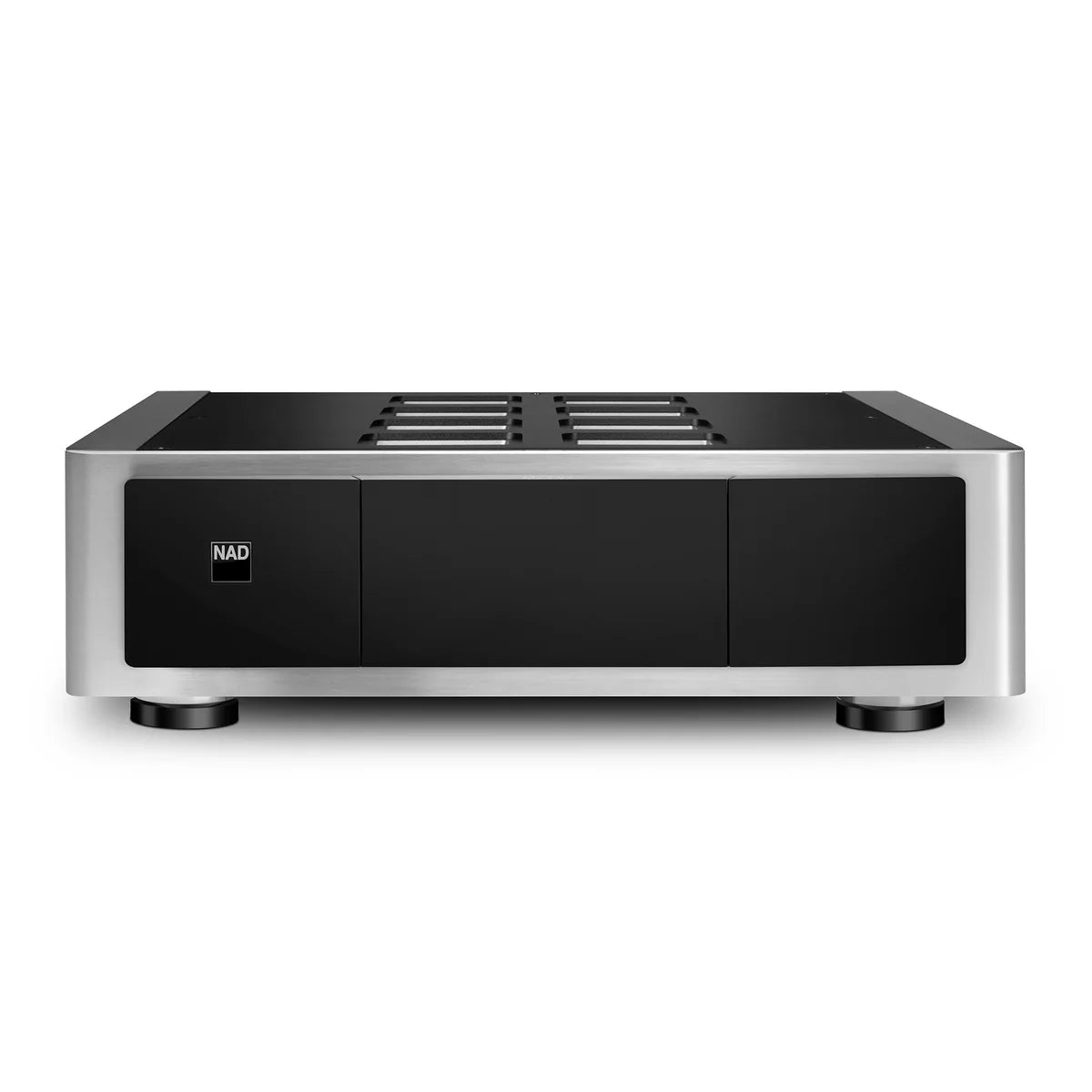

NAD Masters M23 Stereo Power Amplifier
Pure Power
The M23 employs Eigentakt™ class-D amplifier modules manufactured by NAD under license from Denmark’s Purifi Audio. Purifi’s load-invariant design provides wide, flat frequency response, even into challenging loudspeaker loads. Noise, harmonic distortion, and IM distortion are virtually unmeasurable at all frequencies and output levels. Another benefit of the Eigentakt™ design is extremely low output impedance and correspondingly high damping factor, for iron-clad control of the loudspeaker output. NAD combines the Eigentakt™ design with our own sophisticated switched-mode power supply, which can provide additional reserves of current when needed. Amazingly powerful and transparent, the M23 can deliver 2x260W of peak power into 8 ohms and 2x520W into 4 ohms.
Features & Details
- HybridDigital Purifi Eigentakt™ amplifier technology
- Continuous Power Output: 2x200W into 8 ohms; 2x380W into 4 ohms
- Dynamic Power Output: 2x260W into 8 ohms; 2x520W into 4 ohms
- Bridged Power Output: 700W mono continuous into 8 ohms

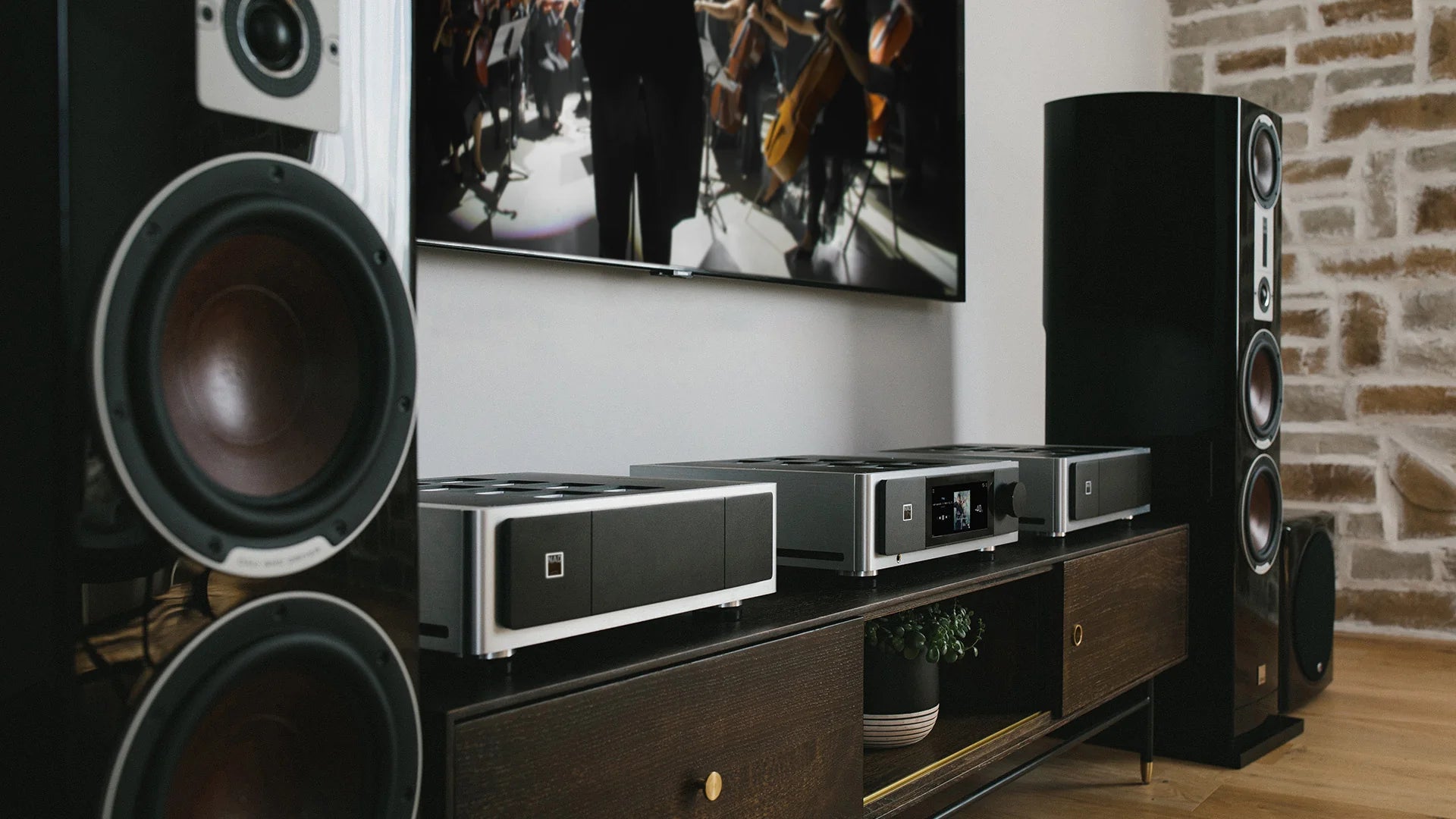

- In bridged mode, can be combined with the NAD M33 BluOS Streaming Amplifier to create a 2x700W system
- Virtually unmeasurable noise, harmonic distortion, intermodulation distortion
- Wide, flat frequency response into any loudspeaker load

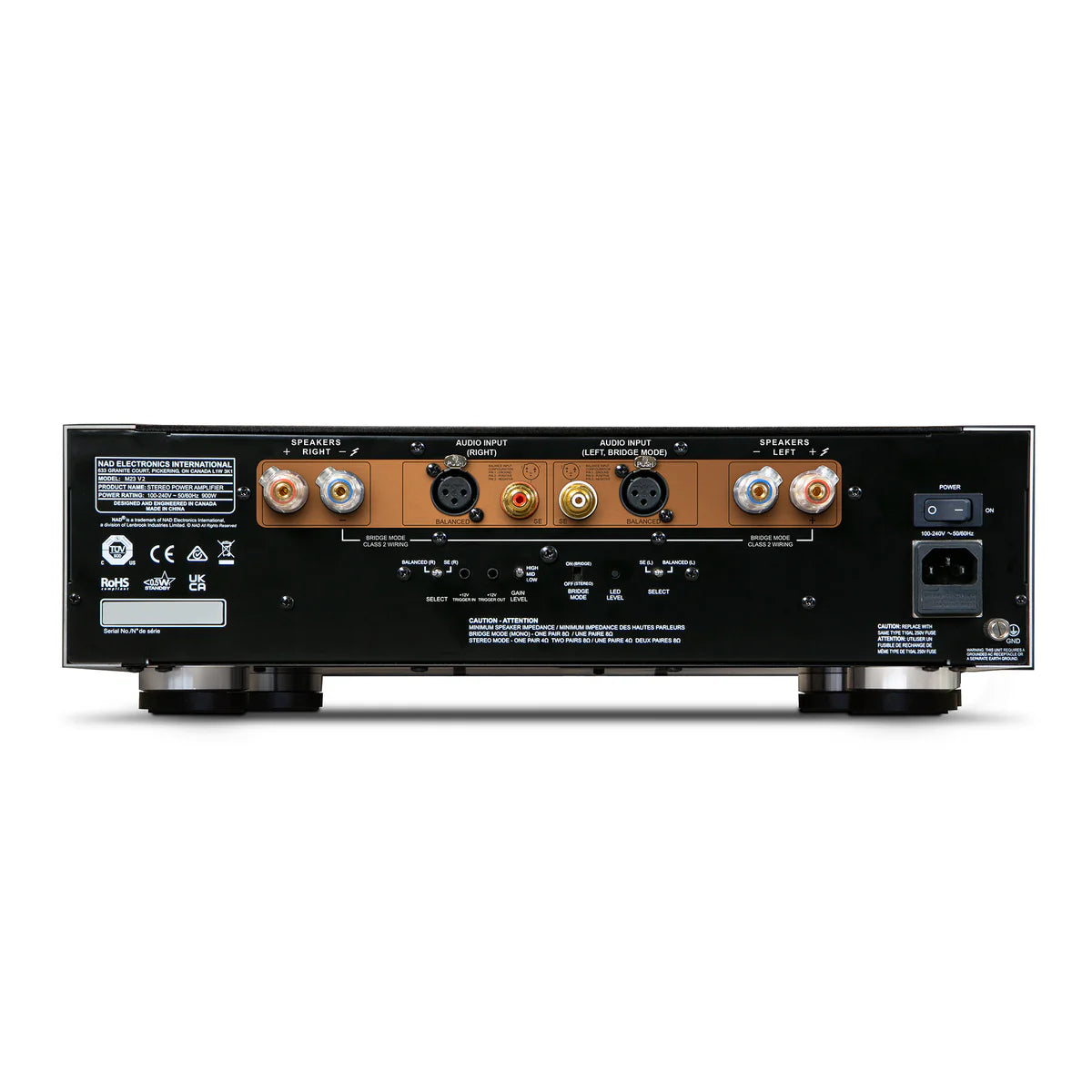

- Balanced (XLR) and single-ended (RCA) auto-sensing inputs
- Three-position adjustable gain control
- 12V trigger input
ANALOG AUDIO INPUT/SPEAKER OUT
|
Input impedance (R and C) |
Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF |
|
Frequency response (1W into 8 Ohms) |
±0.06dB (20-20kHz) |
|
Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
>200W into 8 Ohm, >380W into 4 Ohm |
|
Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven) |
>700W into 8 Ohm |
|
THD (20 Hz – 20 kHz) |
<0.00069% (XLR), <0.0013% (RCA) |
|
Signal-to-Noise Ratio |
>101.7 dB (1W into 8 Ohm) >127 dB (200W into 8 Ohm)
|
|
Clipping power (Stereo mode, at 1 kHz 0.1 % THD) |
>210 W (0.1 % THD 1 kHz 8 ohms) |
|
Clipping power (Bridge mode, at 1 kHz 0.1 % THD) |
> 770W |
|
IHF dynamic power (Stereo mode, at 1 kHz) |
8 ohms: 260 W 4 ohms: 520 W |
|
IHF dynamic power (Bridge mode, at 1 kHz) |
1017W |
|
Peak output current |
>25 A (in 1 ohm, 1 ms) |
|
Damping factor |
>800 (ref. 8 ohms, 20 Hz to 6.5 kHz) |
|
Frequency response |
±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz |
|
Channel separation |
High gain RCA: >97dB, Low gain XLR: >115dB (1kHz) High gain RCA: >75dB, Low gain XLR: >96dB (10kHz) |
|
Stereo Mode input sensitivity (for 200 W in 8 ohms) |
Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain) |
|
Stereo Mode Gain |
19dB (low), 23.9dB (mid), 29.2 (high) |
|
Bridge Mode Gain |
25.1dB (low), 30dB (mid), 35.2 (high) |
|
Standby Power |
<0.5W |
|
Gross dimensions (W x H x D) |
435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 inches) |
|
Net Weight |
9.7 kgs / 21.4 lbs |
|
Shipping Weight |
17.5 kgs / 38.5 lbs |
