NAD
NAD M33
AVAILABILITY : In Store Pick Up Only
NAD M33
BluOS® Streaming DAC Amplifier
BluOS High-Res Music Streaming
The Bar has been Raised with the Masters M33 BluOS Streaming DAC Amplifier
Our Flagship Model Builds On Remarkable Success with Advanced Features, Cutting-Edge Technology and High Power
Part of a growing ecosystem of compatible products, BluOS tightly integrates hardware and software for an exceptional user experience. The only true wireless High-Resolution multi-room system available today, BluOS supports the new standard for High Res streaming, Master Quality Authenticated (MQA). BluOS also supports over 20 free and paid subscription services as well as supporting locally stored music libraries. With BluOS, the M33 retains all the audiophile features and further adds a range of facilities that will expand its capabilities yet simplifies ease-of-use at the same time. Operable with the BluOS app, the supplied remote control or through hands-free control with any Amazon Alexa device, the M33’s front panel never needs to be touched.
Key Features of the NAD Masters M33:
-
- BluOS Streaming DAC Amplifier
- HybridDigital Purifi Eigentakt™ Amplifier Technology
- Continuous Power: 200W into 8/4 Ohms
- 32-BIT/384kHz ESS Sabre DAC
- Dirac Live Room LE Correction*

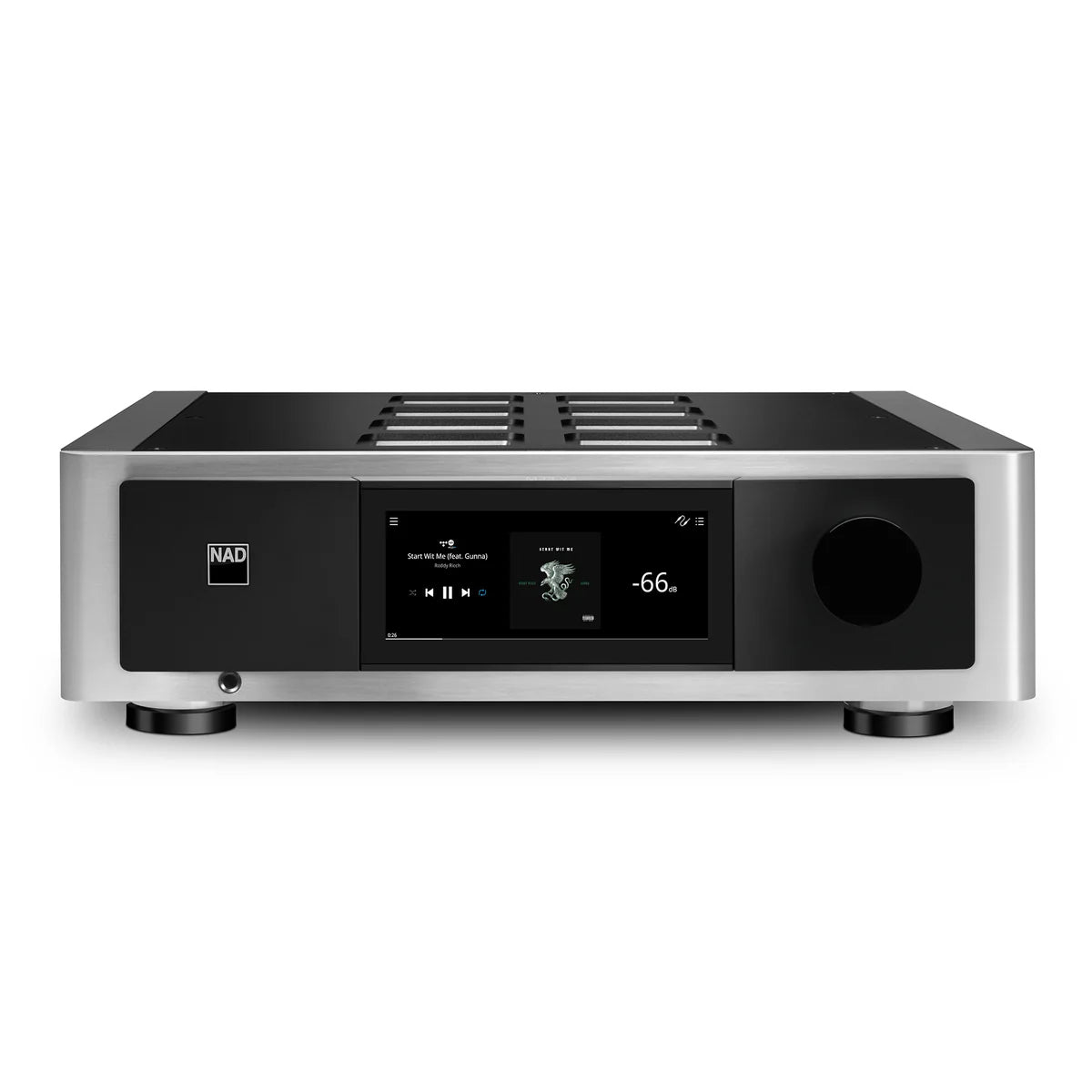

- Colour LCD touch display
- BluOS multi-room Integration
- 2 x MDC Slots for Future Expansion
- Wireless control with AirPlay 2 and aptX HD Bluetooth Integration

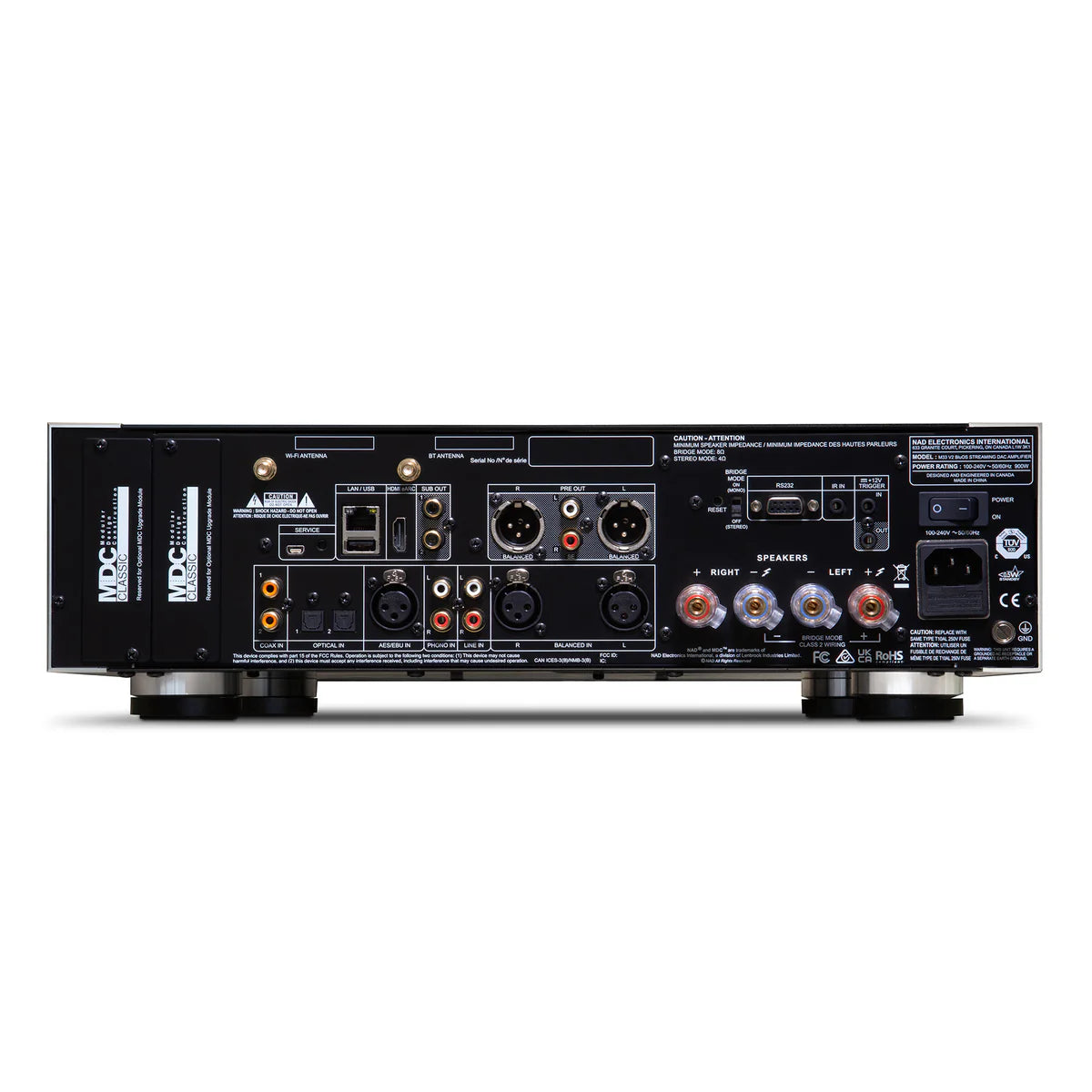

- Comprehensive digital and analog connectivity including HDMI eARC
- Integrates seamlessly with leading smarthome control systems
- MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
- CI friendly- RS232 Serial Control Port. Trigger In/Out.
- IR In with learning function
*Some features will be available via a future software update; Full Dirac Live upgrades can be purchased through the Dirac Live software.
AMPLIFIER SECTION
|
Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
>200 W into 8 ohms >380 W into 4 ohms |
|
Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD) |
>700 W into 8 ohms |
|
Input sensitivity |
865 mV (ref. 200W 8 ohms, Volume maximum) |
|
THD (20 Hz – 20 kHz) |
<0.003 % (1W to 200 W, 8 ohms and 4 ohms) |
|
Signal-to-Noise ratio |
>98 dB (A-weighted, ref. 1 W out in 8 ohms) |
|
Clipping power |
>210 W (0.1 % THD 1 kHz 8 ohms) |
|
IHF dynamic power |
8 ohms: 260 W |
|
Peak output current |
≥25 A (in 1 ohm, 1 ms) |
|
Damping factor |
>800 (ref. 8 ohms, 20 Hz to 6.5 kHz) |
|
Frequency response |
±0.2 dB (20 Hz -20 kHz) |
PREAMPLIFIER SPECIFICATIONS
| LINE IN | |
|
Input Impedance (r and c) |
47kΩ/180pF |
|
Input Sensitivity |
280mV (ref. 500mV out, Volume Maximum) |
|
Maximum input level 20Hz-20Khz |
2 Vrms/8 Vrms (low sensitivity mode) |
|
Tone Controls |
Treble: ±6 dB at 10kHz Bass: ±6 dB at 100Hz |
|
Max Output Signal |
4Vrms (ref. 0.1% THD) |
| PREOUT | |
|
Maximum output level |
3.9 Vrms (ref. 0.1% THD) |
|
Signal-to-Noise ratio |
>120 dB (A-weighted, ref. 2 V out) |
|
Output impedance |
100 ohms |
|
SUBOUT |
|
|
Maximum output level |
1.1 Vrms (ref. 0.1 % THD 100Hz) |
|
Signal-to-Noise ratio |
>102 dB (20 Hz-20 kHz, ref. 1V out) |
|
THD+N |
<0.005 % (refer 1.1 V 20 Hz-200 Hz) |
|
Output impedance |
680 ohms |
|
PHONO |
|
|
Input sensitivity |
MM: 1.2 mV |
|
Input impedance (R and C) |
MM: 56 kohms/100 pF |
|
Signal to noise ratio (ref. 2 V Preout A-weighted) |
MM: >92 dB |
|
THD+N (ref 2V Preout 1kHz) |
MM: <0.003 % |
|
RIAA response accuracy MM/MC |
±0.2 dB 20 Hz -20 kHz |
|
HEADPHONES |
|
|
Output Impedance |
2.2ohms |
|
Output power |
>100 mW/32 ohms |
BluOS SECTION |
|
|
AUDIO |
|
|
Supported audio file format* |
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS |
|
Supported high- resolution audio file format* |
FLAC, MQA, WAV, AIFF |
|
Sampling rate |
up to 192 kHz |
|
Bit depths |
16 – 24 |
|
CONNECTIVITY |
|
|
Network connectivity |
Gigabit Ethernet RJ45 |
|
Supported network file share protocol |
Server Message Block (SMB) |
|
USB |
1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals |
|
Bluetooth quality |
Two-Way (Receive and Headphone modes) |
| USER INTERFACE |
|
|
Supported operating system** |
Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions** |
|
Mobile Application |
Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops |
|
Front panel |
7-inch full colour touch screen |
|
Remote control |
HTRM 2 remote control |
|
Auto Standby ON |
<0.5W |
|
Idle Power |
<40W |
