PARADIGM

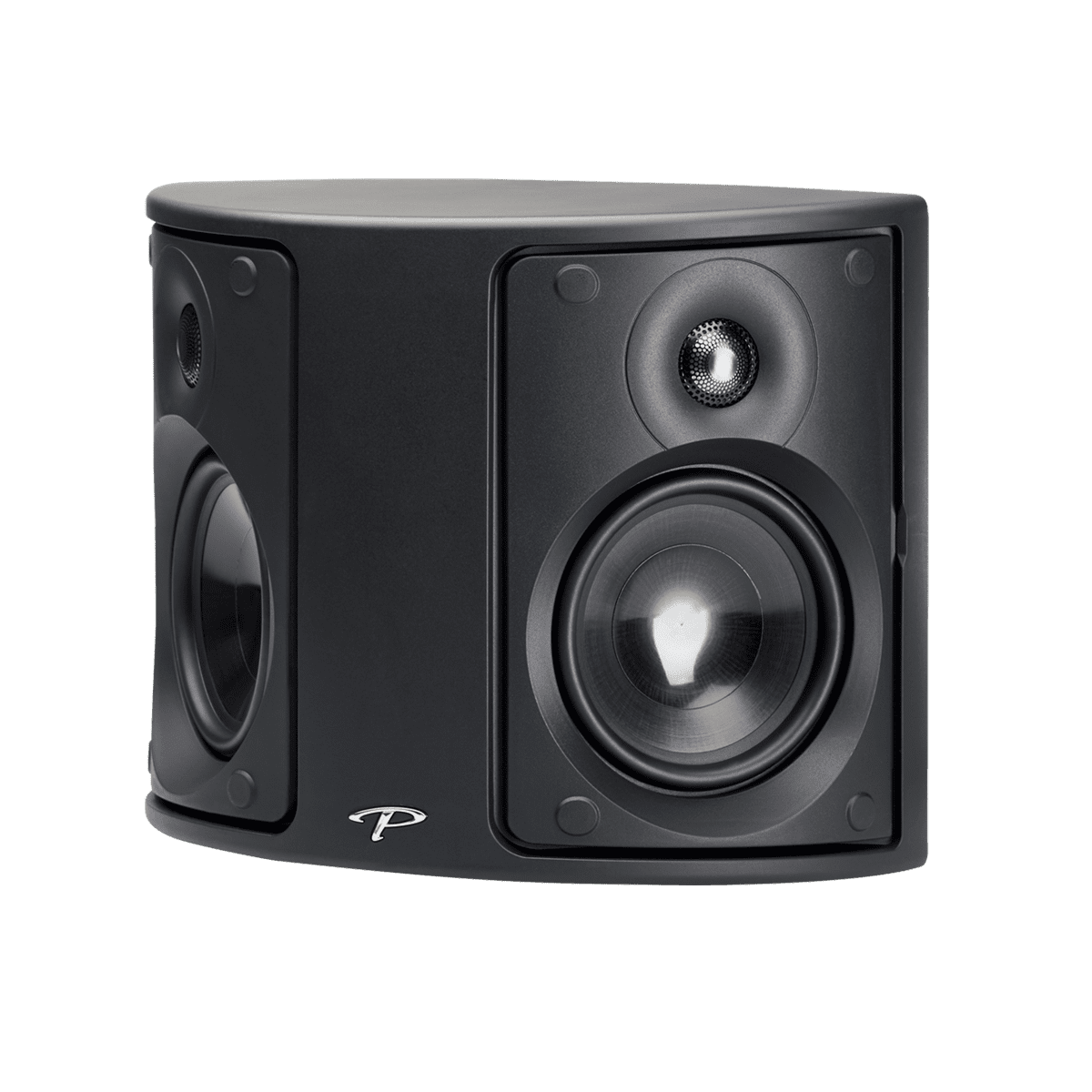

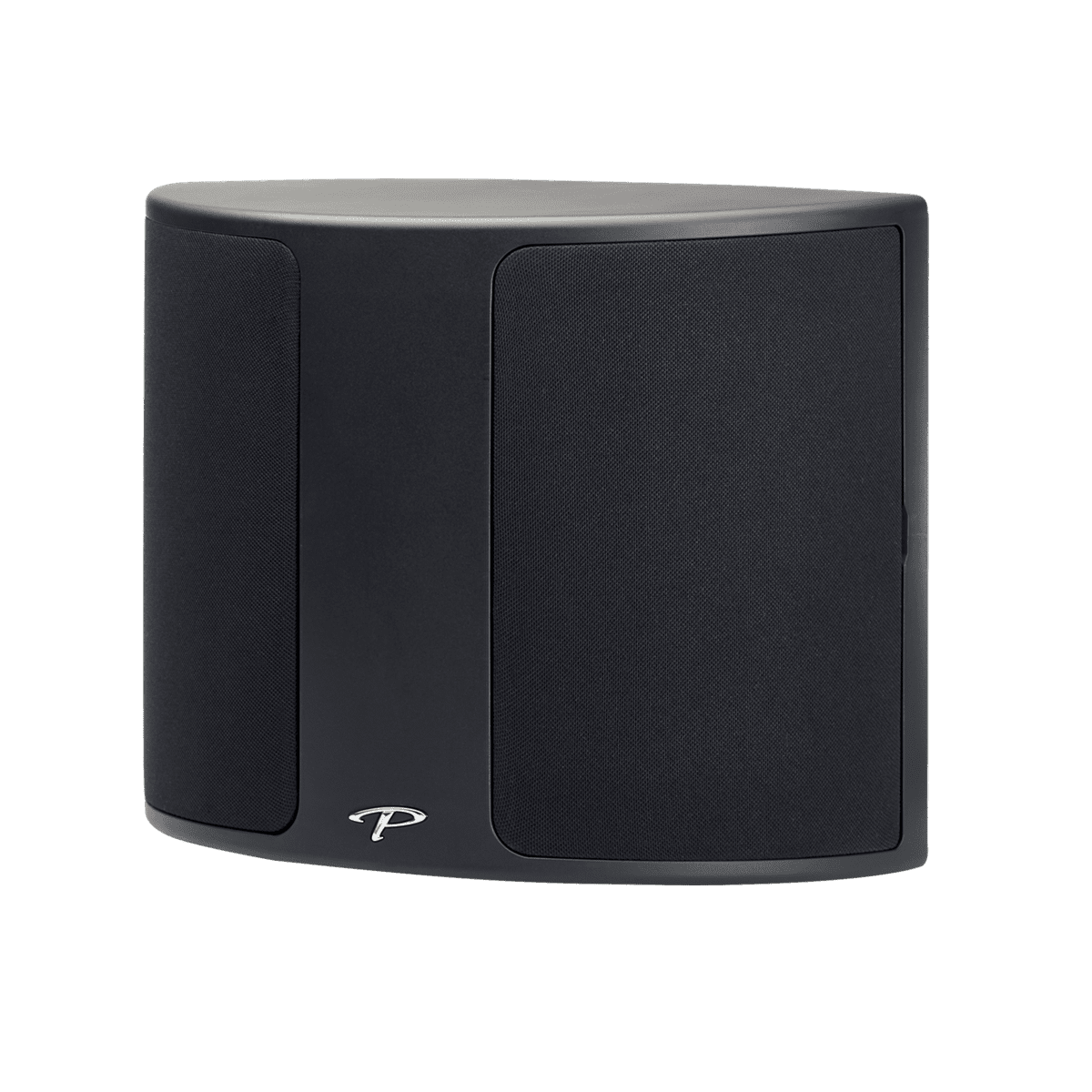

PARADIGM SURROUND 3
PARADIGM SURROUND 3
In Store Only. Priced and Sold as Each.
Built On Research[
Monitor SE loudspeakers benefit from Paradigm’s fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovative materials and patented audio technologies found throughout the Paradigm speaker.

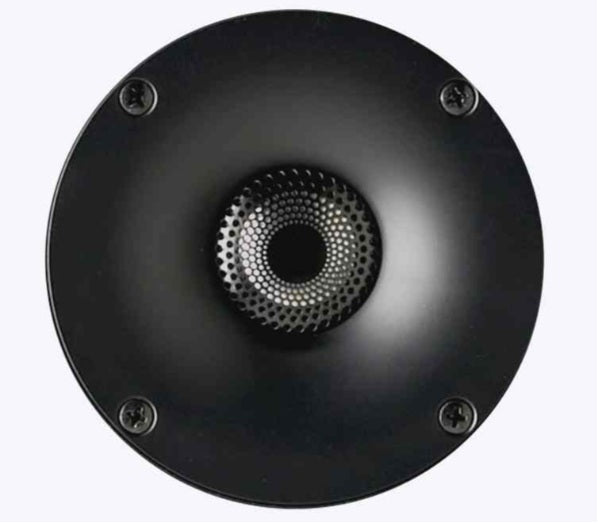

Tweeter
X-PAL™ Pure-Aluminum Dome Tweeters with patented† Perforated Phase-Aligning (PPA™) Lens. This exclusive design acts as a refined phase plug, blocking a wide range of out-of-phase frequencies which increases and smooths output without coloring the sound.
Both visually stunning and functional, our signature PPA Lens technology improves performance while also protecting the tweeter from getting damaged.
† US patent: 10,003,869.

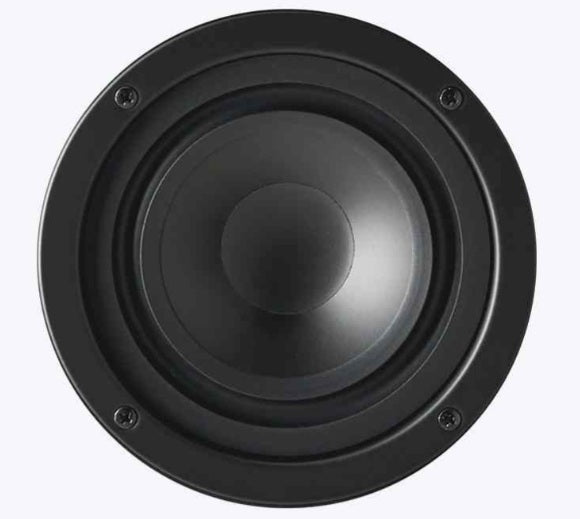

Bass/Midrange
High-performance mineral-filled polypropylene cones with inverted dust caps are lightweight and rigid. Downroll surrounds give them a clean, low-profile look.
Specifications
| DESIGN | 4-driver, 2-way bi-directional surround/rear |
| CROSSOVER | 2nd-order electro-acoustic at 2.3 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 90 Hz - 20 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | (bi-directional soundfield) |
| HIGH FREQUENCY DRIVER | Two 1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens |
| MID/BASS FREQUENCY DRIVER | Two 5-1/2" (140mm) X-PAL™ cones, 1" (25mm) voice-coils, oversize ceramic / ferrite magnets, GRIP™ chassis |
| SENSITIVITY ROOM / ANECHOIC | 90 dB / 87 dB |
| LOW FREQUENCY EXTENSION | 45 Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 175 watts |
| MAXIMUM INPUT POWER | 120 watts |
| IMPEDANCE | Compatible with 8 ohms |

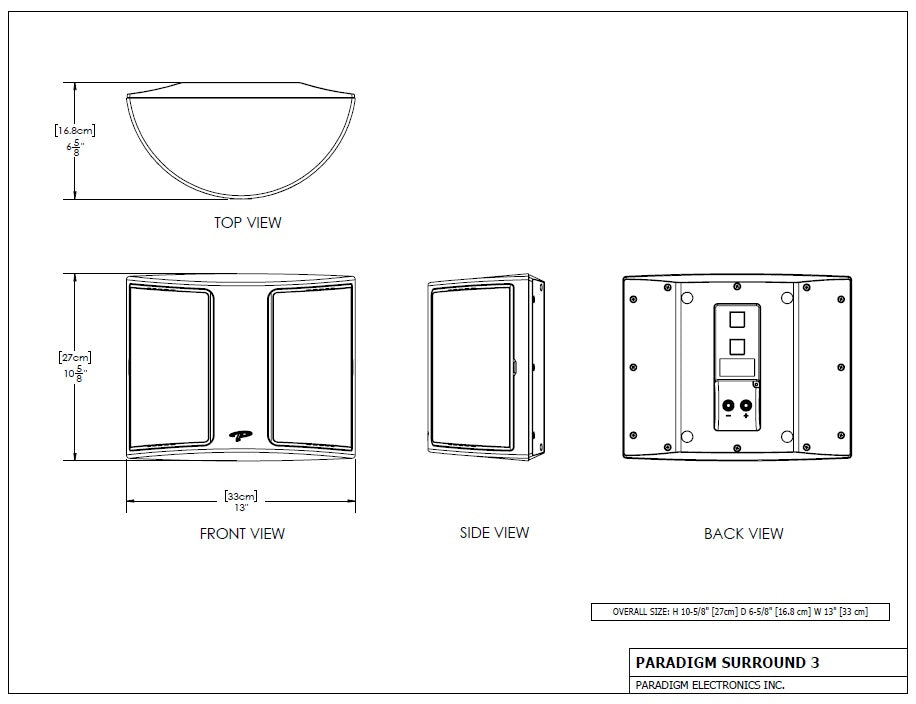

| DIMENSIONS HXWXD | 10.625" × 13" × 5.62" (27cm × 33cm × 14.3cm) |
| WEIGHT | 13.95 lbs. (6.32 kg) |
| FINISHES | Black |
