KENWOOD

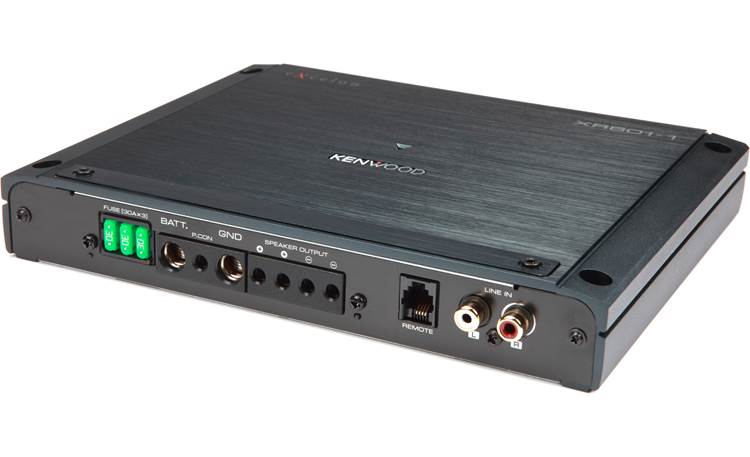

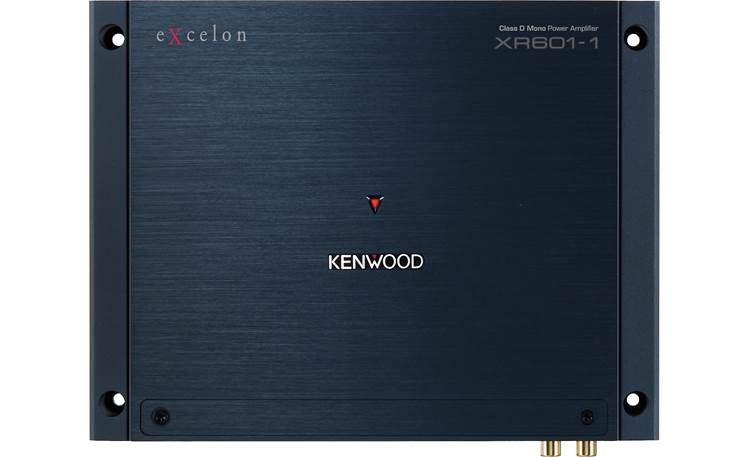

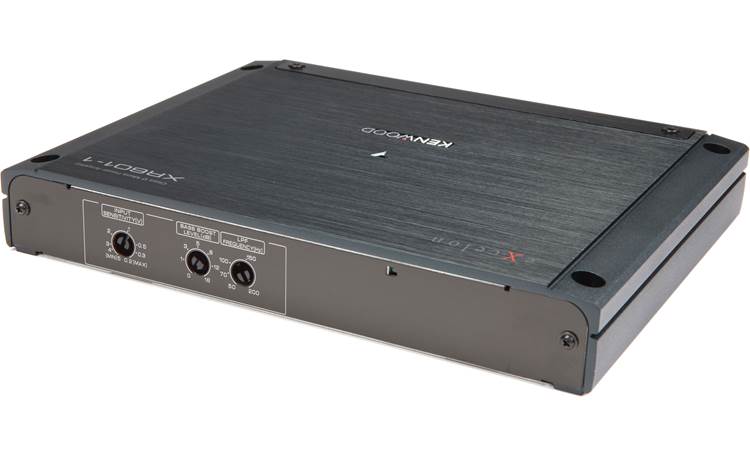

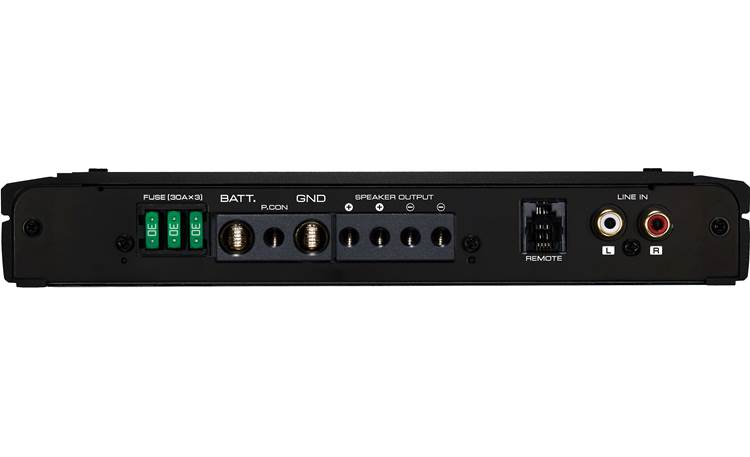

XR601-1 Class D Mono Power Amplifier

$380.00 USD $450.00 USD
XR601-1

  • CEA-2006 Standard Power: 400 W x 1 RMS Watts per channel @ 4 ohms, 1% THD+N
    78 dBA Signal to Noise Ratio (Reference: 1 Watt into 4 ohms)
  • WIRED REMOTE CONTROL: The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

  •

  • Rich and Immersive High-Resolution Audio

    High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

  • HIGH PERFORMANCE PARTS

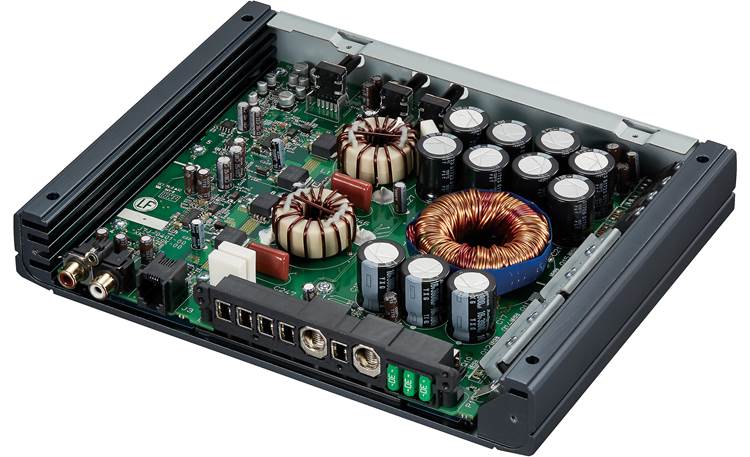

    Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

  • DEEP BASS SOUND

    By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

  • ENHANCED SIGNAL TO NOISE RATIO

    The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

  • SPECIALIZED CIRCUIT DESIGN

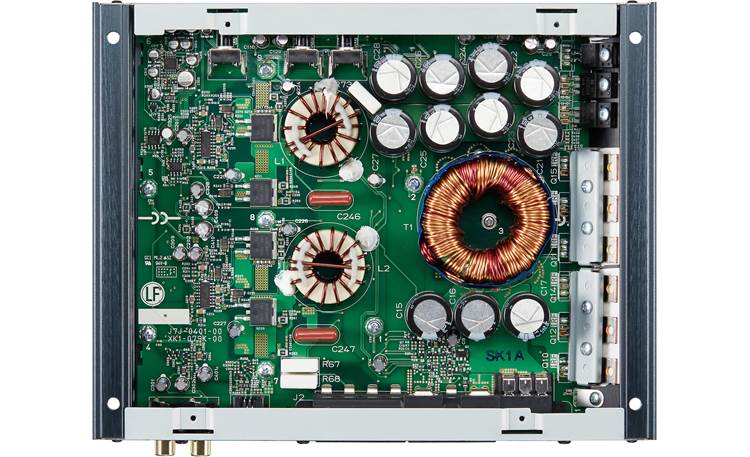

    The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

  • SPECIFICATIONS:

    • Rated Power Output: 14.4 V 400 W x 1 (4Ω) (20 Hz - 200 Hz, 1.0% THD) 600 W x 1 (2Ω) (100 Hz, 1.0% THD)
    • Frequency Response: 20-200Hz(±1dB)
    • Input Sensitivity: 0.2 V - 5.0 V (MIN-MAX)
    • Input Impedance: 10 kΩ
    • Signal to Noise Ratio: 100 dB
    • Operating Voltage: 14.4V (11 - 16 V allowable)
    • Current Consumption: 46 A
    • Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
    • Weight: 1.6 kg (3.5 lbs)
    • Warranty: 2-Year
